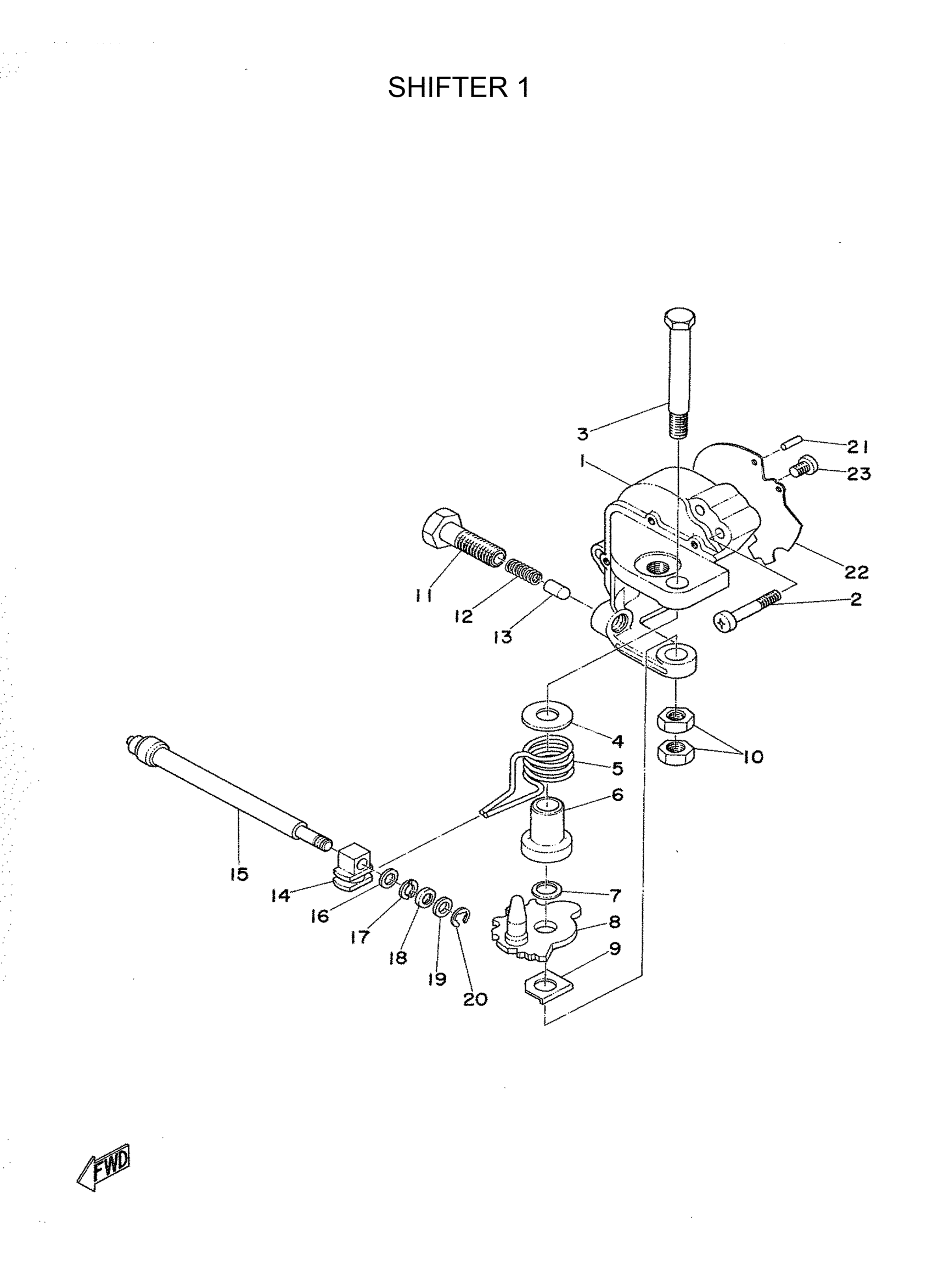

Yamaha MJ2T (OMAHA TRAIL 55) 162 1962 SHIFTER 1 Diagram

#

Description

Price

1

BRACKET,SHIFTER

102-18431-01-00

Unavailable

2

SCREW, PAN HEAD(6E0)

97885-06030-00

Unavailable

3

SHAFT, CAM

102-18432-00-00

Unavailable

4

WASHER, PLATE(52H)

90201-105J4-00

$9.49

5

SPRING,TORSION

90508-35063-00

Unavailable

7

PIN,DOWEL (137)

93604-14012-00

$1.81

8

CAM PLATE ASSEMBLY

102-18441-00-00

Unavailable

9

PLATE, THRUST

102-18457-00-00

Unavailable

10

. NUT

95380-08700-00

Unavailable

11

BOLT

90109-10201-00

Unavailable

12

SPRING,COMPRESSION

90501-10056-00

Unavailable

13

STOPPER, CAM

102-18547-00-00

Unavailable

14

SHIFTER

102-18421-00-00

Unavailable

15

SHIFTER ROD ASSEMBLY

102-18410-00-00

Unavailable

16

SHIM, ROD

102-18416-00-00

Unavailable

17

CLIP, RING

102-18417-00-00

Unavailable

18

COVER, CLIP

102-18418-00-00

Unavailable

19

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

20

WASHER, SPRING

92995-06100-00

Unavailable

21

WASHER, PLATE(52H)

90201-105J4-00

$9.49

22

SEAL, DUST

102-18428-00-00

Unavailable

23

SCREW,PAN HEAD

164-81245-20-00

Unavailable
