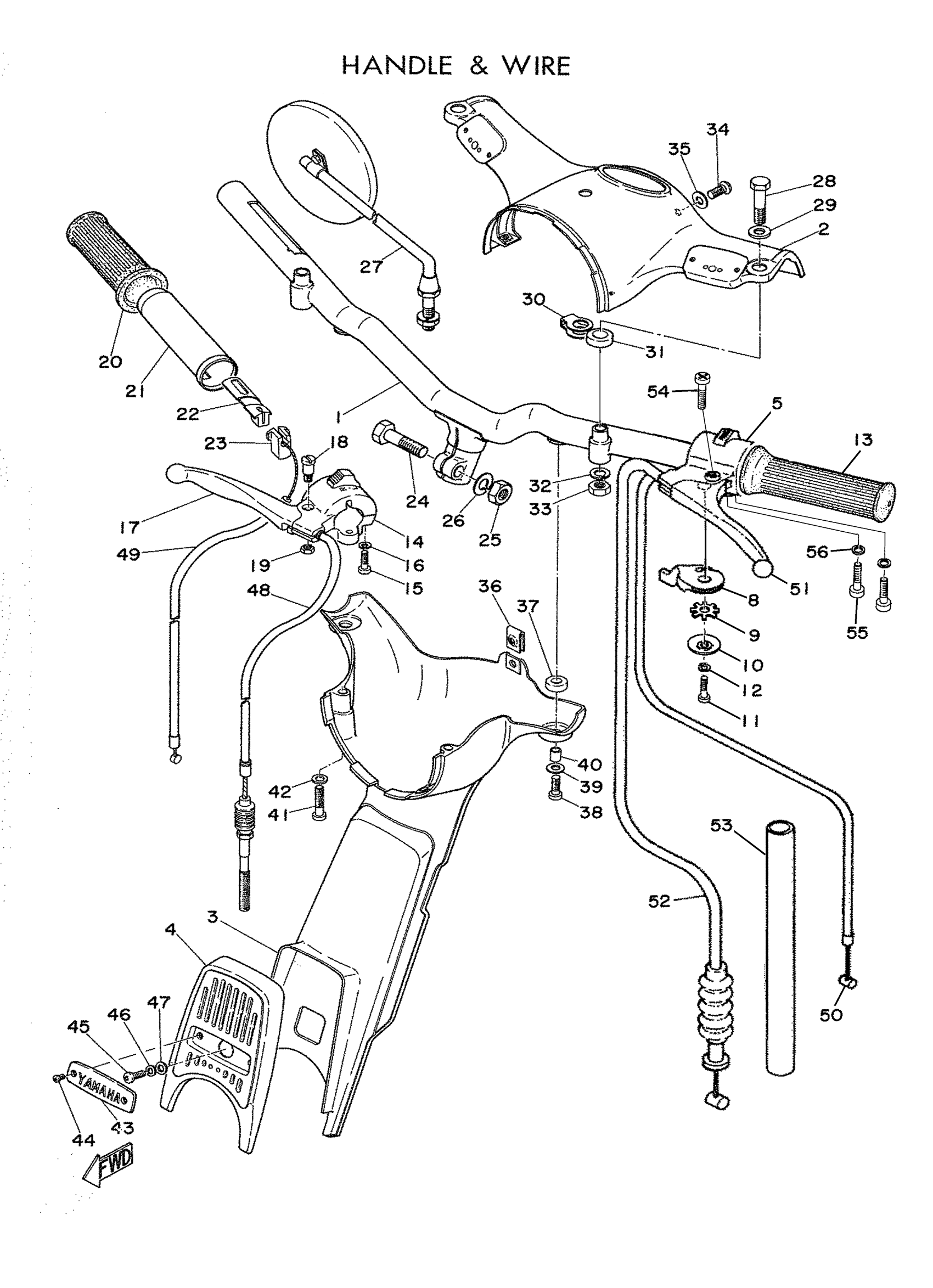

Yamaha MJ2T (OMAHA TRAIL 55) 162 1962 HANDLE - CABLE Diagram

#

Description
Price

1

HANDLE

102-26211-01-24

Unavailable

2

COVER, UPPER

162-26213-00-00

Unavailable

3

COVER, UNDER

102-26215-00-00

Unavailable

4

PANEL, FRONT

102-23391-00-00

Unavailable

5

LEVER HOLDER ASSEMBLY (LH)

162-82610-00-00

Unavailable

6

. SCREW

92501-05100-00

Unavailable

7

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

8

LEVER, STARTER

103-83941-00-00

Unavailable

9

WASHER,SPEC'L SHAP

90209-12115-00

Unavailable

10

COVER, STARTER

136-83942-00-00

Unavailable

11

BOLT (11T)

90101-06576-00

$8.49

12

WASHER, SPRING

92995-06100-00

Unavailable

13

GRIP LH

102-26241-00-00

Unavailable

14

LEVER HOLDER ASSEMBLY 1

124-82710-11-94

Unavailable

15

SCREW, PAN HEAD

90157-05M19-00

Unavailable

16

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

17

. LEVER R

122-83922-01-00

Unavailable

18

SCREW, PAN HEAD(4MY)

98507-05018-00

Unavailable

19

NUT, HEXAGON SMALL

95317-05700-00

Unavailable

20

GRIP RH

102-26242-00-00

Unavailable

21

TUBE,THRTL GUIDE

207-26243-00-00

Unavailable

22

SLIDER, THROTTLE

102-26244-00-00

Unavailable

23

STOPPER,CABLE

135-26245-00-00

Unavailable

24

BOLT

97013-10040-00

Unavailable

25

NUT, SELF LOCKING

90185-10031-00

Unavailable

26

YBS67-10 WASHER, SPRING

92990-10100-00

Unavailable

27

MIRROR ASSY (RH)

102-26290-00-00

Unavailable

28

BOLT

97013-08045-00

Unavailable

29

WASHER, SPEC''L SHAP

102-23457-00-00

Unavailable

30

EARTH LUG

102-83938-00-00

Unavailable

31

DAMPER, HANDLE UNDER

102-23455-00-00

Unavailable

32

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

33

NUT(6L2)

95333-08600-00

Unavailable

34

SCREW

102-26229-00-00

Unavailable

35

WASHER, SPECIAL

102-23458-00-00

Unavailable

36

NUT, SPEED

102-21791-00-00

Unavailable

37

DAMPER, HANDLE UNDER

102-23455-00-00

Unavailable

38

SCREW, PAN HEAD(4MY)

98507-05018-00

Unavailable

39

. WASHER, PLAIN

92990-05200-00

Unavailable

40

SPACER

102-23448-00-00

Unavailable

41

SCREW

92501-05030-00

Unavailable

42

. WASHER, PLAIN

92990-05200-00

Unavailable

43

EMBLEM

102-23395-00-00

Unavailable

44

SCREW,PAN HEAD

92501-03008-00

Unavailable

45

SCREW PAN HEAD

98580-06010-00

Unavailable

46

WASHER, SPRING

92995-06100-00

Unavailable

47

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

48

CABLE,BRAKE

102-26341-01-00

Unavailable

49

CABLE, THROTTLE 1

102-26311-00-00

Unavailable

50

CABLE, STARTER

162-26331-00-00

Unavailable

51

LEVER L

803-83912-00-38

Unavailable

52

WIRE, CLUTCH

103-26335-00-00

Unavailable

53

TUBE, WIRE GUIDE

162-26328-00-00

Unavailable

54

SCREW, PAN HEAD(4MY)

98507-05018-00

Unavailable

55

SCREW, PAN HEAD(4MY)

98507-05018-00

Unavailable

56

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35
