Description

Price

1

. ARMATURE

102-81155-10-00

Unavailable

2

. STATOR ASSY

102-81110-10-00

Unavailable

3

. CONTACT BREAKER ASSY

123-81121-10-00

Unavailable

4

CNDSR 2

278-81625-91-00

Unavailable

5

. LUBRICATOR

141-81131-10-00

Unavailable

6

BRUSH

101-81111-10-00

Unavailable

7

. SPRING, BRUSH

141-81113-10-00

Unavailable

8

SCREW,PAN HEAD

164-81246-20-00

Unavailable

9

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

10

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

11

SCREW,PAN HEAD

164-81245-20-00

Unavailable

12

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

13

YBS66-4 WASHER, PLAIN

92990-04200-00

$1.86

14

GASKET, EXHAUST

98507-05008-00

$3.55

15

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

16

. PLATE, TIMING

102-81132-10-00

Unavailable

17

SCREW,STATOR

136-81135-10-00

Unavailable

18

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

19

. BOLT

102-81152-10-00

Unavailable

20

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

21

STARTER GENERATOR ASSY

102-81100-10-00

Unavailable

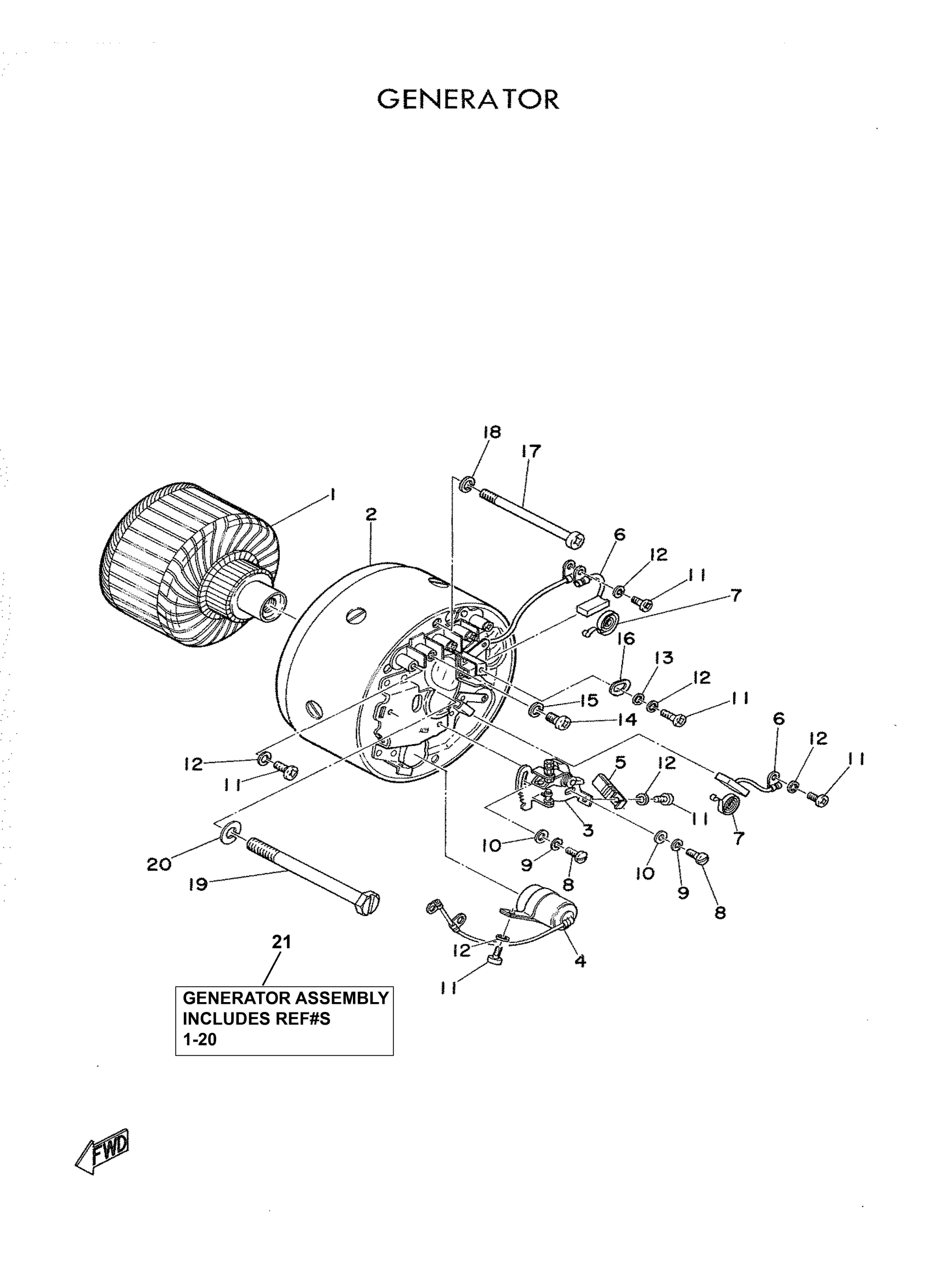

Yamaha MJ2T (OMAHA TRAIL 55) 162 1962 GENERATOR Diagram

. ARMATURE

. STATOR ASSY

. CONTACT BREAKER ASSY

CNDSR 2

. LUBRICATOR

BRUSH

. SPRING, BRUSH

SCREW,PAN HEAD

YBS67-4 WASHER, SPRING

YBS67-4 WASHER, SPRING

SCREW,PAN HEAD

YBS67-4 WASHER, SPRING

YBS66-4 WASHER, PLAIN

GASKET, EXHAUST

YBS67-5 WASHER, SPRING

. PLATE, TIMING

SCREW,STATOR

YBS67-5 WASHER, SPRING

. BOLT

YBS67-8 WASHER, SPRING

STARTER GENERATOR ASSY
