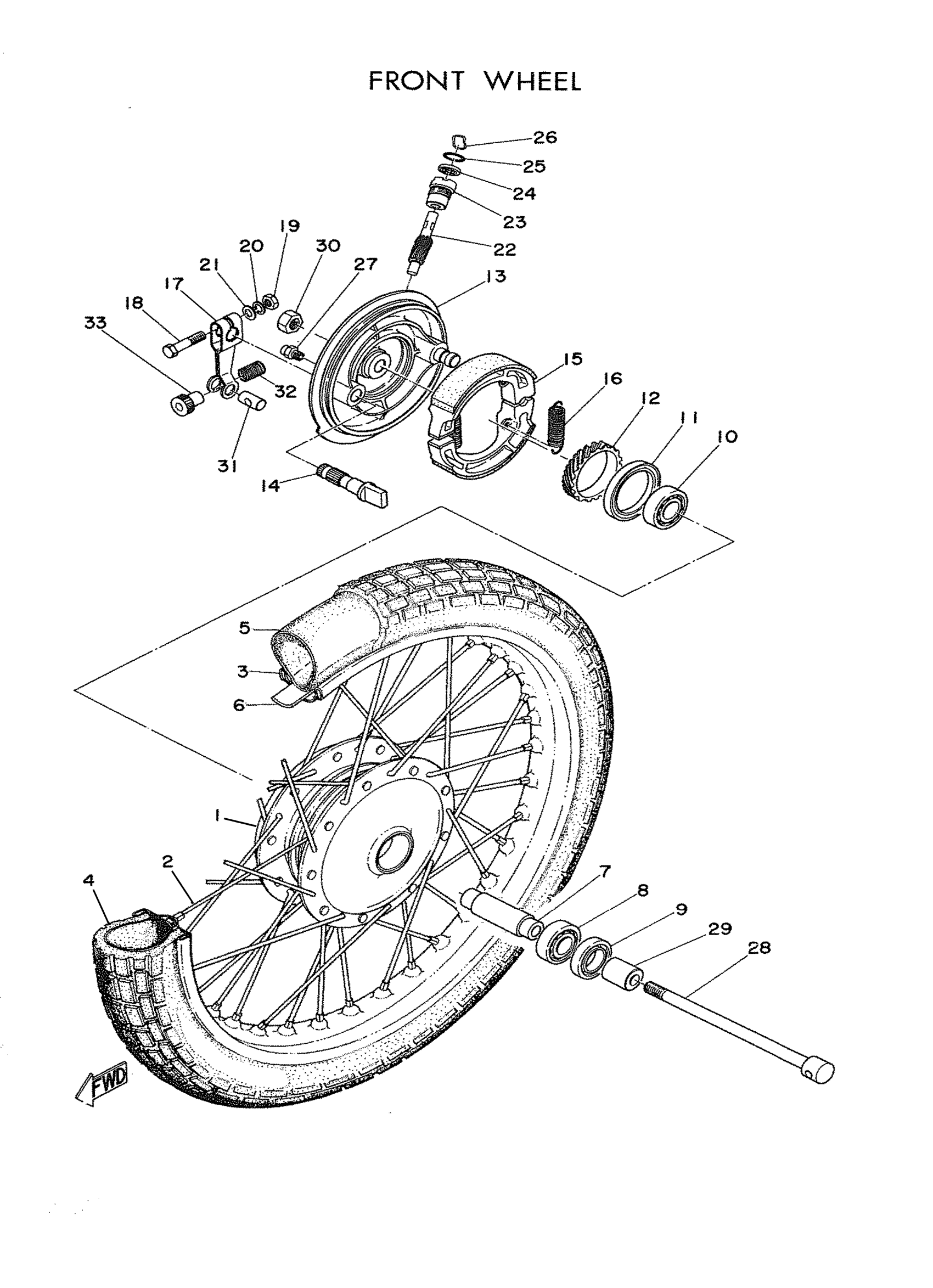

Yamaha MJ2T (OMAHA TRAIL 55) 162 1962 FRONT WHEEL Diagram

#

Description
Price

1

HUB,FRONT

102-25111-01-38

Unavailable

2

SPOKE SET, FRONT

102-25104-00-00

Unavailable

3

RIM

94414-16001-00

Unavailable

4

TIRE

94125-16010-00

Unavailable

5

TUBE 250X16

94225-16048-00

Unavailable

6

BAND, RIM

94330-16058-00

$20.99

7

SPACER, BEARING

102-25117-00-00

Unavailable

8

BRG, R-B (7H4)

93306-20211-00

$25.99

9

OIL SEAL

93106-20001-00

Unavailable

10

BEARING

93306-20203-00

$24.99

11

OIL SEAL, OS-TYPE

93107-42001-00

Unavailable

12

GEAR, DRIVE

102-25135-01-00

Unavailable

13

PLATE,BRAKE SHOE

102-25121-01-38

Unavailable

14

CAMSHAFT

102-25351-01-00

Unavailable

15

BRAKE SHOE KIT

4KN-W253E-11-00

$25.99

16

SPRING, TENSION (566).

90506-16150-00

Unavailable

17

LEVER,CAMSHAFT 1

102-25155-01-00

Unavailable

18

BOLT, HEXAGON

97017-06030-00

Unavailable

19

NUT, HEXAGON

95380-06600-00

Unavailable

20

WASHER, SPRING

92995-06100-00

Unavailable

21

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

22

GEAR, METER

152-25138-00-00

Unavailable

23

BUSHING

109-25136-00-00

Unavailable

24

OIL SEAL (7X14X4-136)

93104-07003-00

Unavailable

25

O-RING (26H)

93210-14579-00

Unavailable

26

RING, STOP

102-25137-00-00

Unavailable

27

NIPPLE, GREASE

93700-06M03-00

Unavailable

28

AXLE, WHEEL

102-25181-00-00

Unavailable

29

COLLAR

90387-10079-00

Unavailable

30

NUT,SPEC'L SHAPE

90179-10106-00

Unavailable

31

PIN,SPEC'L SHAPE

90249-10101-00

Unavailable

32

SPRING, (180-27236-00)

90501-10245-00

Unavailable

33

NUT

136-26243-00-00

Unavailable
