Description

Price

1

FRONT FORK ASSY

162-23310-00-00

Unavailable

2

NUT, FITTING

102-23454-00-00

Unavailable

3

COVER, BALL RACE

102-23415-00-00

Unavailable

4

RACE, BALL 1

B6E-23411-00-00

$8.49

5

RACE, BALL 2

B6E-23412-00-00

$13.49

6

BALL

93501-04011-00

$8.49

7

ARM ASY 1

102-23360-00-00

Unavailable

8

STEM, SQUARE

102-23368-00-00

Unavailable

9

WASHER, SQUARE STEM

102-23369-00-00

Unavailable

10

BOLT(JA9)

90101-08691-00

$4.29

11

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

12

FENDER,FRONT

162-21510-00-24

Unavailable

13

STAY,FENDER 1

102-21513-00-81

Unavailable

14

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

15

STOPPER, FRONT ARM

162-23376-00-00

Unavailable

16

BOLT

97014-08040-00

Unavailable

17

WASHER, PLAIN

92990-08200-00

Unavailable

18

BOLT(3JP)

97017-06010-00

Unavailable

19

WASHER, SPRING

92995-06100-00

Unavailable

20

PAD, FRONT FENDER

102-21517-00-00

Unavailable

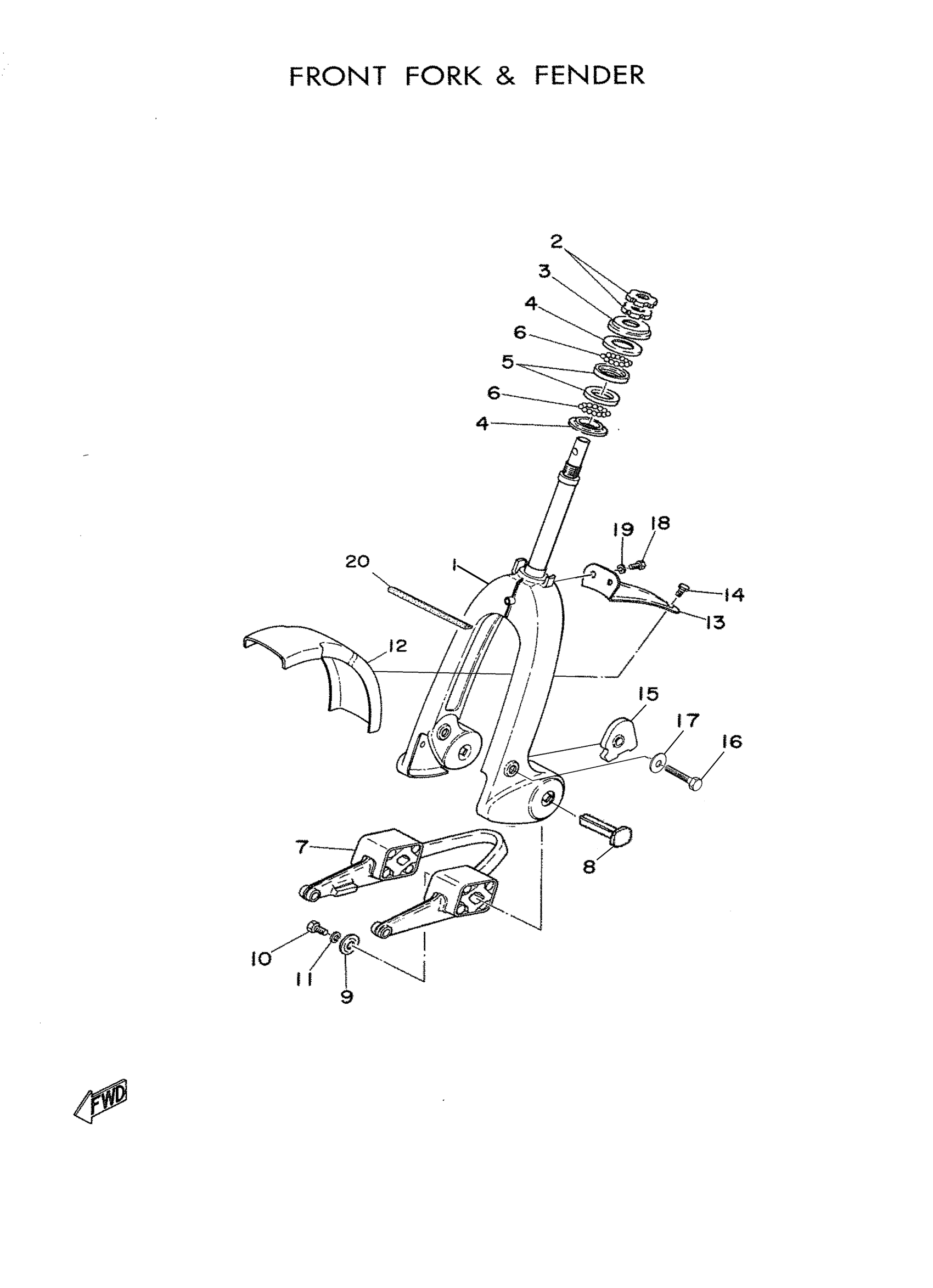

Yamaha MJ2T (OMAHA TRAIL 55) 162 1962 FRONT FORK Diagram

FRONT FORK ASSY

NUT, FITTING

COVER, BALL RACE

RACE, BALL 1

RACE, BALL 2

BALL

ARM ASY 1

STEM, SQUARE

WASHER, SQUARE STEM

BOLT(JA9)

YBS67-8 WASHER, SPRING

FENDER,FRONT

STAY,FENDER 1

BOLT, HEXAGON DEEP RECESS

STOPPER, FRONT ARM

BOLT

WASHER, PLAIN

BOLT(3JP)

WASHER, SPRING

PAD, FRONT FENDER
