Description

Price

1

STAND, MAIN

162-27111-00-00

Unavailable

2

SHAFT, MAIN STAND

102-27112-00-00

Unavailable

3

PEDAL, BRAKE

102-27211-00-00

Unavailable

4

CIRCLIP (122)

93430-12008-00

$8.49

5

WASHER, WAVE

102-27219-00-00

Unavailable

6

SPRING, MAIN STAND

162-27116-00-00

Unavailable

7

ROD, BRAKE

102-27231-01-00

Unavailable

8

. WASHER, PLAIN

92990-05200-00

Unavailable

9

PIN, COTTER (648)

91490-20015-00

$2.20

10

SPRING, RETURN

102-27216-00-00

Unavailable

11

SPRING, RETURN

102-27411-00-00

Unavailable

12

COVER, FOOTREST

122-27413-00-00

$16.49

13

COVER, FOOTREST

122-27413-00-00

$16.49

14

BOLT, HEXAGON

97013-08016-00

$1.01

15

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

16

NUT, HEXAGON

95380-06600-00

Unavailable

17

LINK, MAIN STAND

162-27115-00-00

Unavailable

18

PROTECTOR, ENGINE

162-21471-00-00

Unavailable

19

STAY, ENGINE PROTECTOR

162-21433-00-00

Unavailable

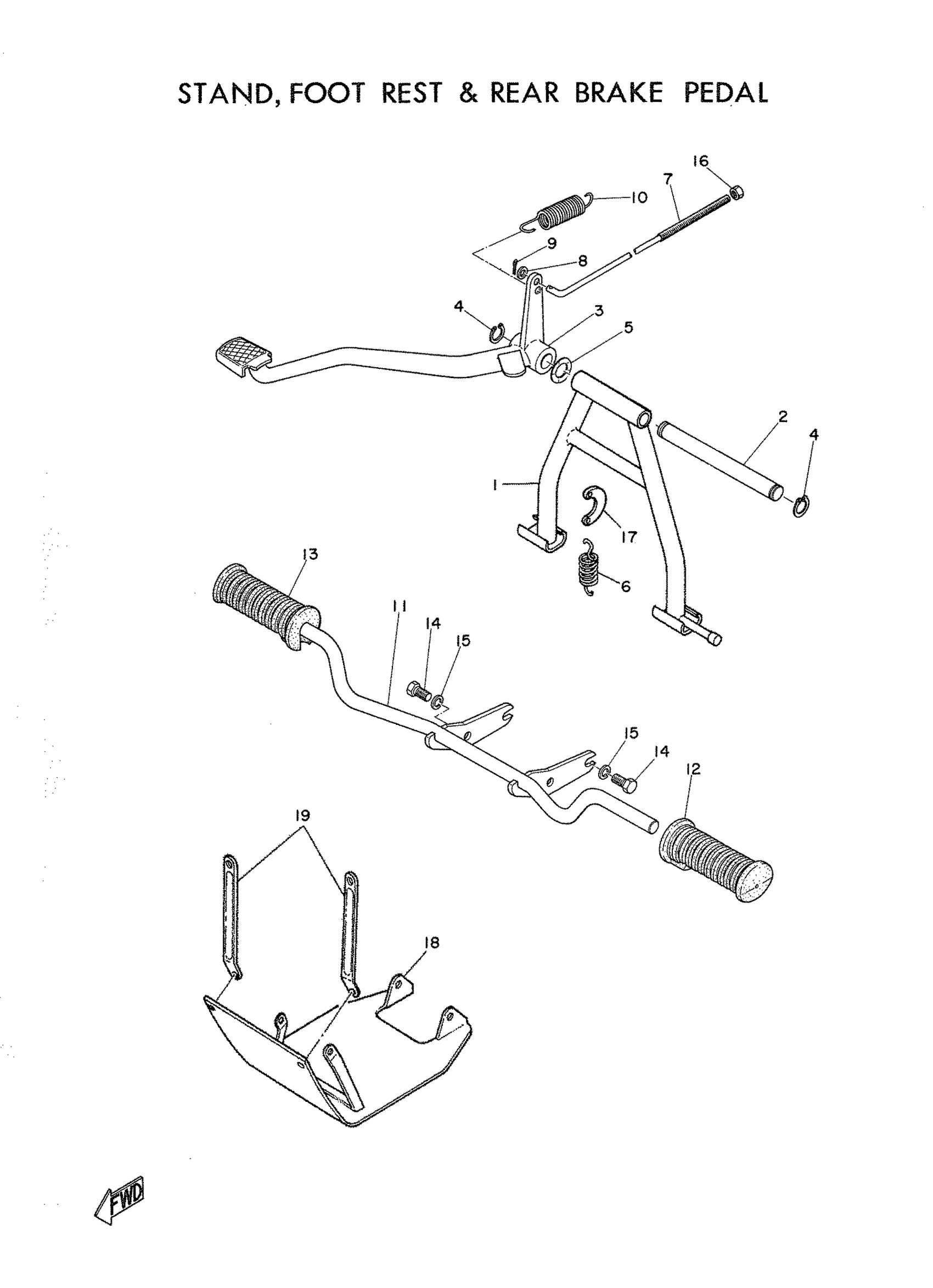

Yamaha MJ2T (OMAHA TRAIL 55) 162 1962 FOOTREST - STAND Diagram

STAND, MAIN

SHAFT, MAIN STAND

PEDAL, BRAKE

CIRCLIP (122)

WASHER, WAVE

SPRING, MAIN STAND

ROD, BRAKE

. WASHER, PLAIN

PIN, COTTER (648)

SPRING, RETURN

SPRING, RETURN

COVER, FOOTREST

COVER, FOOTREST

BOLT, HEXAGON

YBS67-8 WASHER, SPRING

NUT, HEXAGON

LINK, MAIN STAND

PROTECTOR, ENGINE

STAY, ENGINE PROTECTOR
