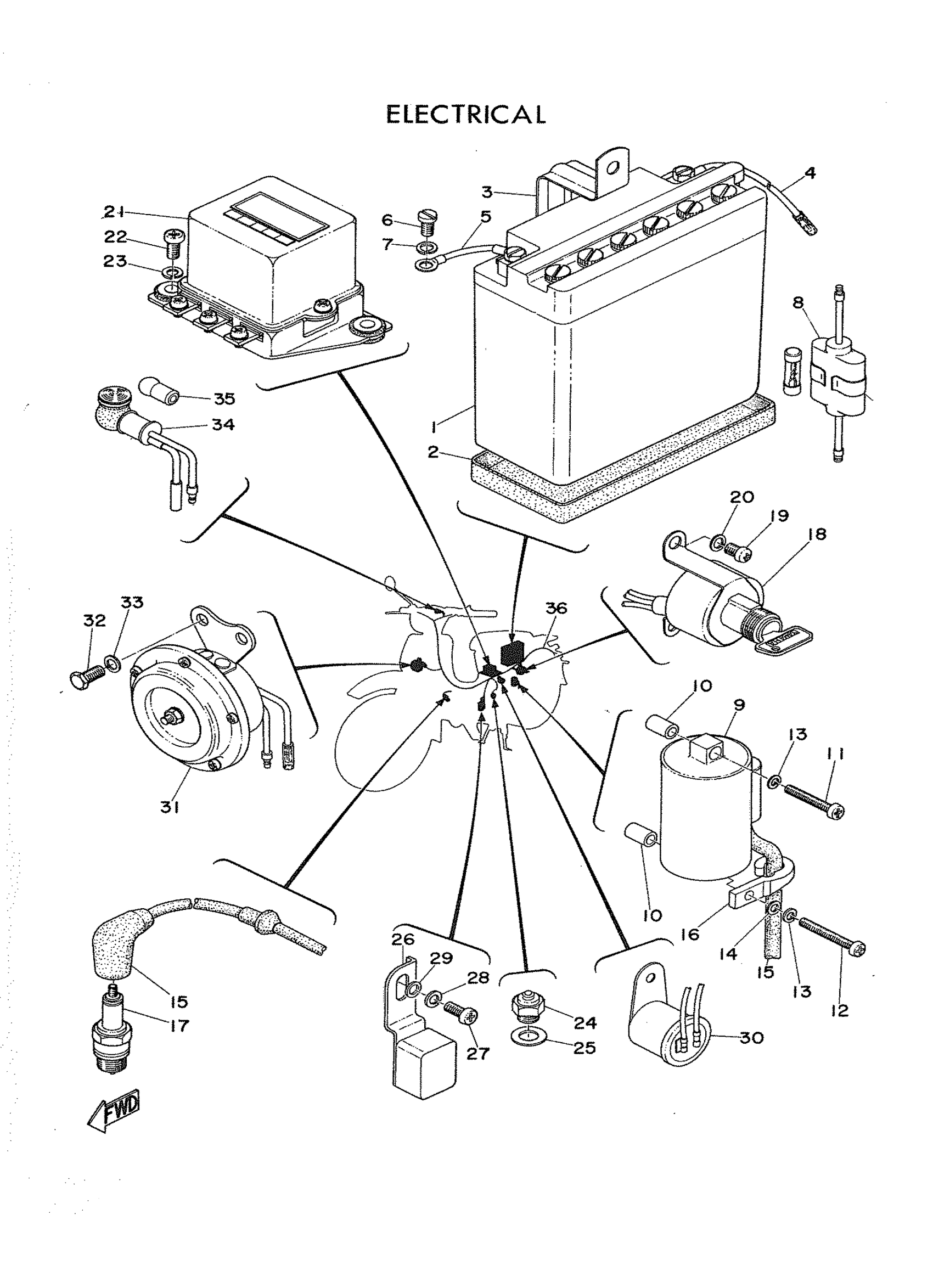

Yamaha MJ2T (OMAHA TRAIL 55) 162 1962 ELECTRICAL Diagram
#
1
12N5.5-3B GS BATTERY
12N-553BA-00-00
Unavailable
2
SEAT, BATTERY
102-82122-00-00
Unavailable
3
BAND, BATTERY
102-82131-00-00
Unavailable
4
WIRE, POSITIVE LEAD
102-82115-00-00
Unavailable
5
WIRE, NEGATIVE LEAD
102-82116-00-00
Unavailable
6
SCREW PAN HEAD
98580-06010-00
$8.49
7
WASHER, SPRING
92995-06100-00
Unavailable
8
FUSE HOLDER ASSY
2UJ-82150-02-00
Unavailable
8
FUSE
1A0-82161-00-00
$7.99
9
IGNITION COIL ASSEMBLY
102-82310-70-00
Unavailable
10
COLLAR
102-82313-00-00
Unavailable
11
SCREW
92501-05030-00
Unavailable
12
SCREW, PAN HEAD (686)
98580-05035-00
Unavailable
13
YBS67-5 WASHER, SPRING
92990-05100-00
$0.35
14
. WASHER, PLAIN
92990-05200-00
Unavailable
15
CORD, HIGH TENSION
102-82341-00-00
Unavailable
16
CLAMP
123-82361-00-00
Unavailable
17
B7HS NGK 4PK
B7H-S0000-00-00
Unavailable
18
MAIN SWITCH ASSEMBLY
102-82508-10-00
Unavailable
19
SCREW, PAN HEAD(6A3)
97885-06008-00
Unavailable
20
WASHER, SPRING
92995-06100-00
Unavailable
21
VOLTAGE REGULATOR ASSY
102-81910-10-00
Unavailable
22
SCREW, PAN
98517-06012-00
Unavailable
23
WASHER, SPRING
92995-06100-00
Unavailable
24
NEUTRAL SWITCH ASY
146-82540-01-00
Unavailable
25
WASHER, PLATE
90201-12790-00
Unavailable
26
STOP SWITCH ASSEMBLY
107-82530-00-00
Unavailable
27
SCREW, PAN
98517-06012-00
Unavailable
28
WASHER, SPRING
92995-06100-00
Unavailable
29
YBS66-6 WASHER, PLAIN
92990-06200-00
Unavailable
30
FLASHER RELAY ASSEMBLY
102-83350-20-00
Unavailable
31
HORN
102-83371-20-00
Unavailable
32
BOLT (661)
97013-06012-00
Unavailable
33
WASHER, SPRING
92995-06100-00
Unavailable
34
PILOT LAMP ASSY
102-83530-00-00
Unavailable
35
BULB (12V3.4W)
123-83516-21-XX
Unavailable
36
WIRE HARNESS ASSEMBLY
107-82590-10-00
Unavailable
