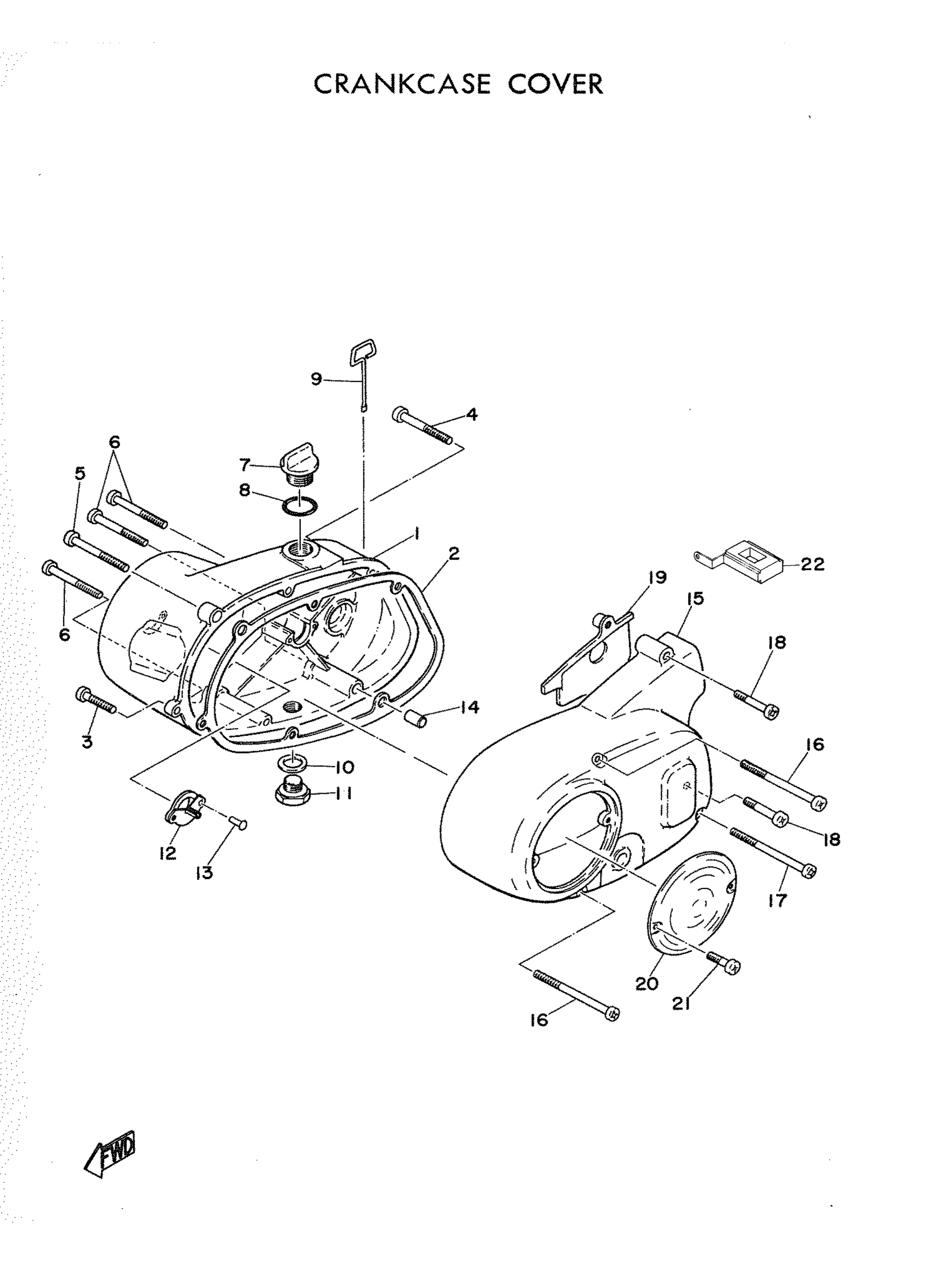

Yamaha MJ2T (OMAHA TRAIL 55) 162 1962 CRANKCASE COVER Diagram

#

Description
Price

1

CRCS COVER ASSEMBLY R

103-15421-00-00

Unavailable

2

GASKET, CRCS COVER

102-15451-00-00

Unavailable

3

SCREW, PAN HEAD(6E0)

97885-06030-00

Unavailable

4

SCREW PAN HEAD

98580-06550-00

$8.49

5

SCREW, PANHED (GC2)

98580-06555-00

Unavailable

6

SCREW PAN HEAD

98580-06565-00

Unavailable

7

PLUG, OIL

116-15363-00-00

Unavailable

8

O-RING

93210-22028-00

Unavailable

9

LEVEL, GAUGE

102-15361-00-00

Unavailable

10

WASHER, PROTECTOR

4F4-14766-00-00

$6.99

11

PLUG,STRAIGHT SCRW

90340-14033-00

Unavailable

12

BUCKET, OIL

102-17489-00-00

Unavailable

13

RIVET

102-16515-00-00

Unavailable

14

PIN, DOWEL(3VD)

99530-10114-00

$2.55

15

COVER,CRANKCASE L

102-15411-00-00

Unavailable

16

SCREW, PAN HEAD(3DN)

98504-06080-00

Unavailable

17

SCREW PAN HEAD

98580-06565-00

Unavailable

18

SCREW, PAN HEAD (76T)

98517-06025-00

Unavailable

19

COVER, CHAIN CASE

102-15418-00-00

Unavailable

20

COVER, GENERATOR

123-15415-00-00

Unavailable

21

SCREW, PAN HEAD

92501-04008-00

Unavailable

22

PROTECTOR, CHAIN

124-15493-00-00

Unavailable
