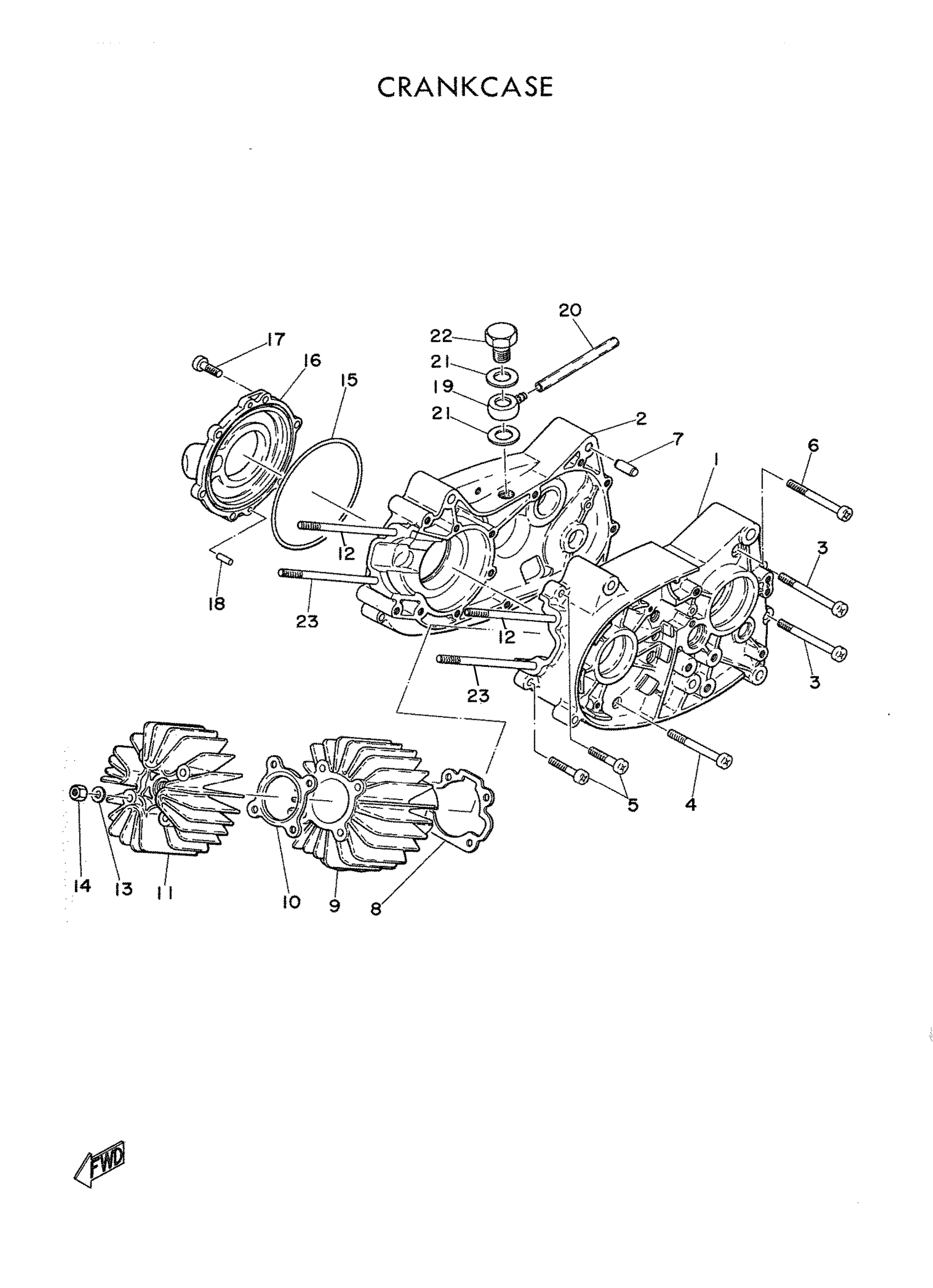

Yamaha MJ2T (OMAHA TRAIL 55) 162 1962 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE 1

102-15111-01-00

Unavailable

2

CRANKCASE 2

102-15121-01-00

Unavailable

3

SCREW PAN HEAD

98580-06550-00

$8.49

4

SCREW PAN HEAD

98580-06545-00

$5.60

5

SCREW PAN HEAD

98580-06020-00

$8.49

6

SCREW PAN HEAD

98580-06565-00

Unavailable

7

PIN, DOWEL(4XL)

93612-16254-00

$5.60

8

GASKET, CYLINDER

102-11351-00-00

Unavailable

9

CYLINDER

107-11311-00-00

Unavailable

10

GASKET, CYLINDER HEAD 1

517-11181-01-00

$6.99

11

HEAD, CYLINDER

107-11111-00-00

Unavailable

12

BOLT STUD 1091136100

90116-06026-00

$4.29

13

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

14

NUT, HEXAGON

95380-06600-00

Unavailable

15

RING,RUBBER

120-13554-00-00

Unavailable

16

COVER, VALVE

102-13551-00-00

Unavailable

17

SCREW, PAN HEAD(6E5)

97880-06018-00

Unavailable

18

PIN,DOWEL (137)

93604-14012-00

Unavailable

19

COLLAR, UNION

122-15372-00-00

Unavailable

20

PIPE, BREATHER

122-15373-00-00

Unavailable

21

WASHER, PROTECTOR

4F4-14766-00-00

Unavailable

22

BREATHER

122-15371-90-00

Unavailable

23

BOLT, STUD

162-11361-00-00

Unavailable
