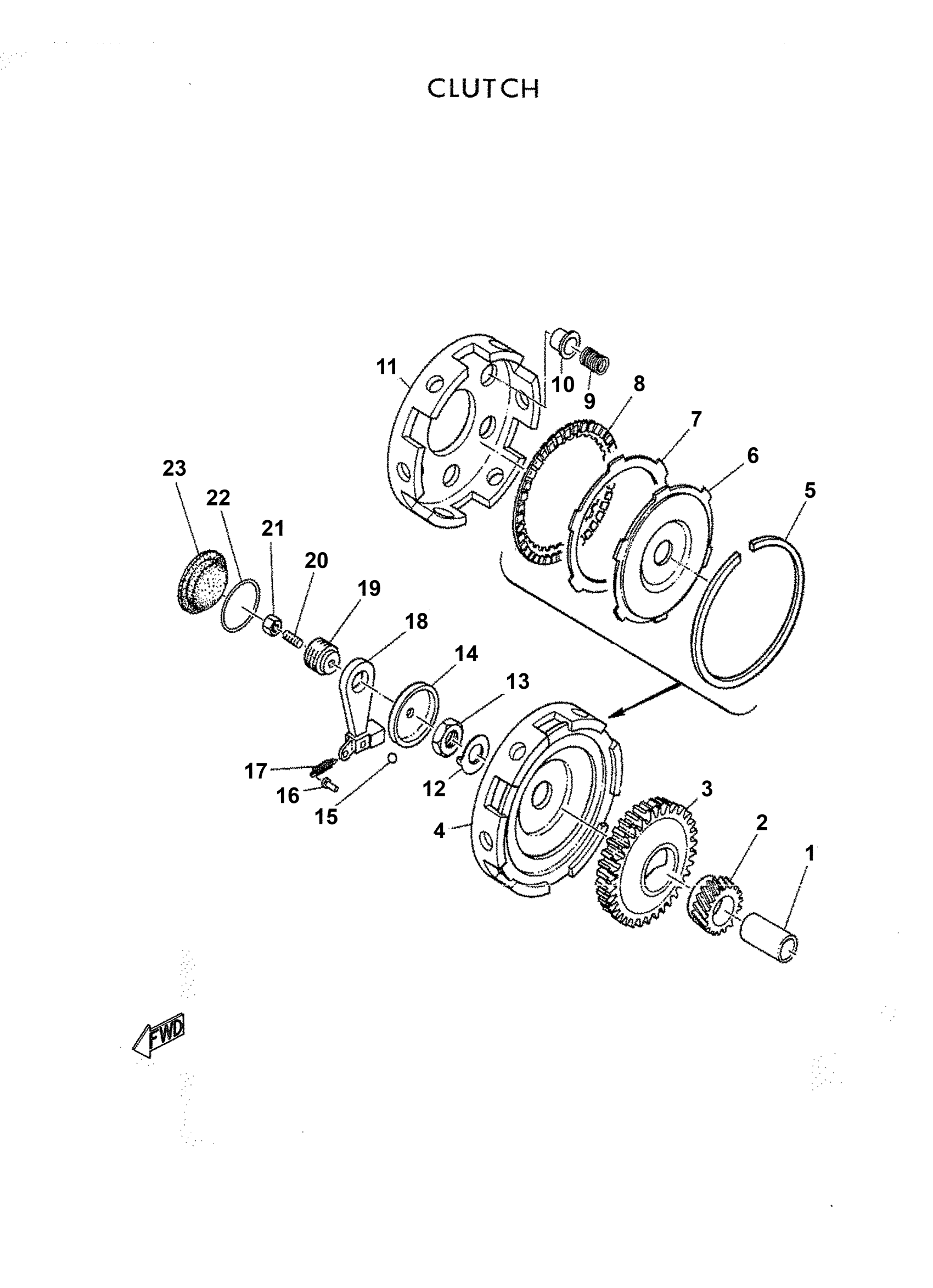

Yamaha MJ2T (OMAHA TRAIL 55) 162 1962 CLUTCH Diagram

#

Description

Price

1

COLLAR, DISTANCE

103-16136-00-00

Unavailable

2

GEAR, PRIMARY DRIVE

103-16111-00-00

Unavailable

3

BOSS, CLUTCH

103-16371-00-00

Unavailable

4

CLUTCH ASSY

162-16301-00-00

Unavailable

5

. CLUTCH PLATE, PRESSURE

101-16351-00-00

Unavailable

6

. CLUTCH PLATE, PRESSURE

101-16351-00-00

Unavailable

7

. CLUTCH PLATE

101-16324-00-00

Unavailable

8

PLATE,FRICTION

101-16321-01-00

Unavailable

9

. SPRING, CLUTCH

162-16333-00-00

Unavailable

10

. CLUTCH HOUSING, SPRING

101-16335-00-00

Unavailable

11

HOUSING,CLUTCH

101-16311-01-00

Unavailable

12

WASHER, LOCK

101-16135-00-00

Unavailable

13

NUT, LOCK

101-16343-00-00

Unavailable

14

CAP

101-16349-00-00

Unavailable

15

BALL

93501-04011-00

$8.49

16

HOOK, SPRING

132-16346-00-00

Unavailable

17

SPRING, LEVER RETURN

103-16345-00-00

Unavailable

18

LEVER, PUSH

103-16342-00-00

Unavailable

19

SCREW, PUSH

103-16341-00-00

Unavailable

20

BOLT, SET

90113-06012-00

Unavailable

21

NUT(650)

95380-06700-00

Unavailable

22

GASKET

103-15457-00-00

Unavailable

23

COVER, CAP

103-15417-00-00

Unavailable
