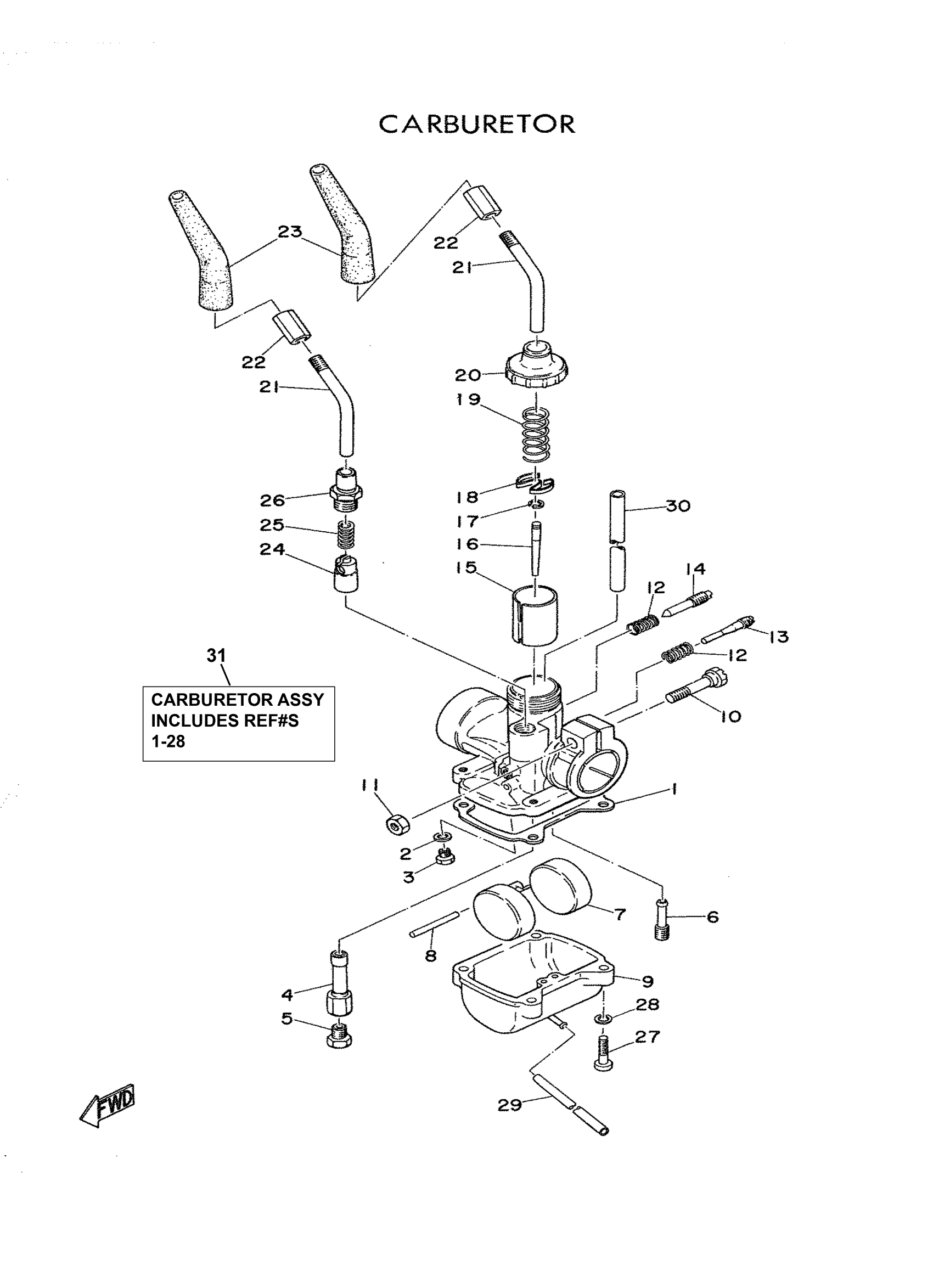

Yamaha MJ2T (OMAHA TRAIL 55) 162 1962 CARBURETOR Diagram
#
1
GASKET, FLOAT CHAMBER
127-14184-00-00
$10.99
2
WASHER, VALVE SEAT
127-14195-00-00
$7.99
3
VALVE SEAT ASSY
353-14190-12-00
Unavailable
4
. NOZZLE, MAIN
127-14141-10-00
Unavailable
5
JET, MAIN (NO.130)
127-14143-26-00
$6.99
5
JET, MAIN #140
127-14143-28-00
Unavailable
5
. JET, MAIN #150
127-14143-30-00
Unavailable
5
JET, MAIN #160
127-14143-32-00
Unavailable
5
JET, MAIN #170
127-14143-34-00
Unavailable
6
. JET, PILOT #175
127-14142-17-00
Unavailable
7
FLOAT
127-14185-00-00
$38.99
8
PIN, FLOAT
127-14186-00-00
$6.65
9
BODY, FLOAT CHMBR 1
127-14181-00-00
Unavailable
10
. SCREW, BODY FITTING
127-14125-01-00
Unavailable
11
NUT, HOLDING
127-14164-00-00
Unavailable
12
SPRING, AIR ADJUSTING
127-14134-00-00
Unavailable
13
. SCREW, AIR ADJUSTINGSET
127-W1412-00-00
Unavailable
14
THROTTLE SCREW SET
12G-14103-00-00
Unavailable
15
. VALVE, THROTTLE 1
102-14112-20-00
Unavailable
16
. NEEDLE
127-14116-01-00
Unavailable
17
CLIP
127-14137-00-00
Unavailable
18
. SEAT, SPRING
296-14136-00-00
Unavailable
19
. SPRING, THRTL VALVE
127-14131-00-00
Unavailable
20
TOP, MIXING CHAMBER
102-14158-00-00
Unavailable
21
. GUIDE, CABLE
102-14155-00-00
Unavailable
22
. SCREW, WIRE ADJUSTING
102-14124-00-00
Unavailable
23
. CAP
102-14169-00-00
Unavailable
24
PLUNGER, STARTER
58E-14171-00-00
Unavailable
25
. SPRING, THRTL STOP
102-14133-00-00
Unavailable
26
. CAP, PLUNGER
102-14174-00-00
Unavailable
27
SCREW, PAN HEAD
92503-04020-00
Unavailable
28
YBS67-4 WASHER, SPRING
92990-04100-00
Unavailable
29
PIPE, OVERFLOW
102-14196-00-00
Unavailable
30
PIPE, AIR VENT
102-14197-00-00
Unavailable
31
CARBURETOR ASSEMBLY
102-14101-00-00
Unavailable
