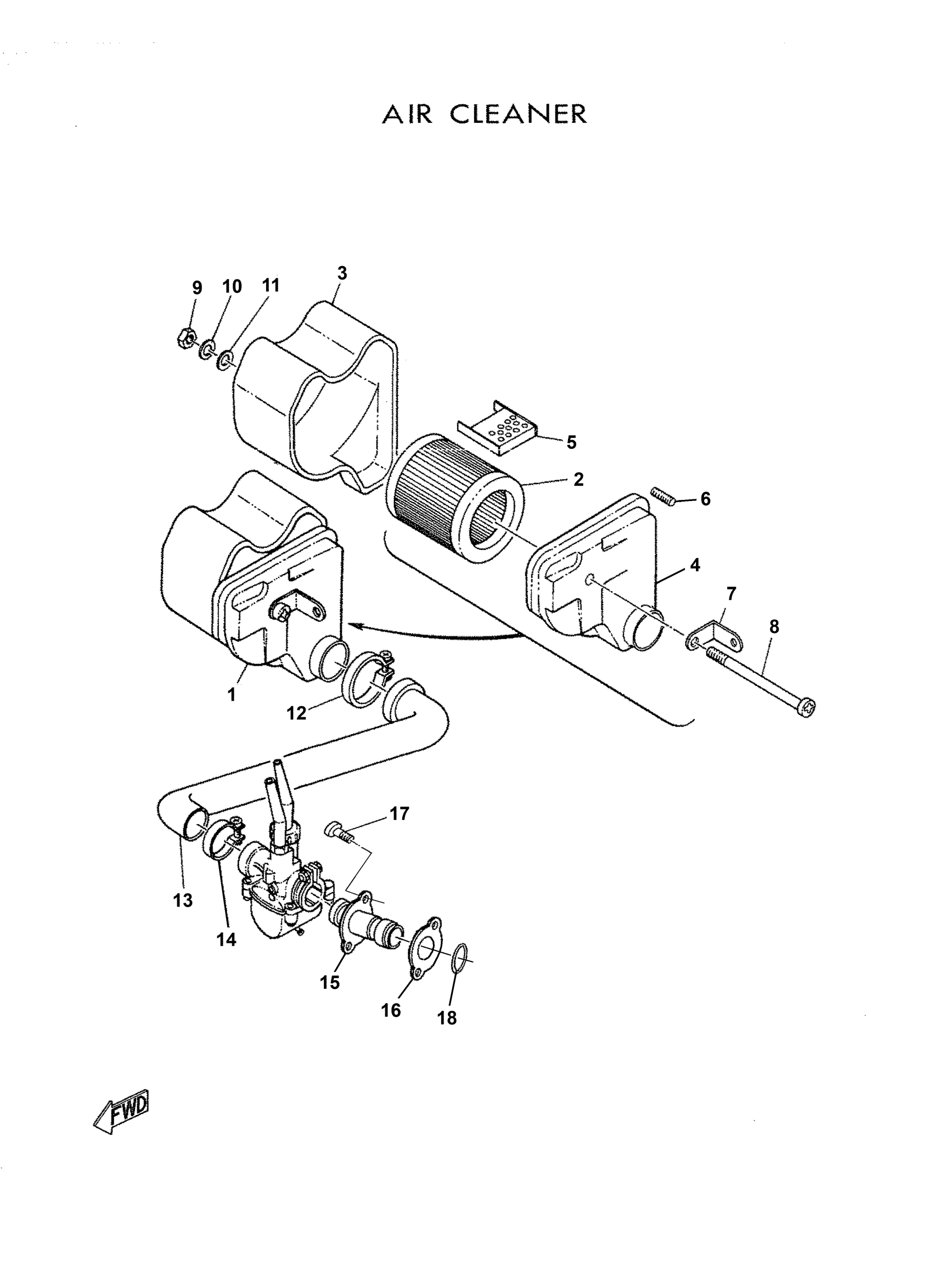

Yamaha MJ2T (OMAHA TRAIL 55) 162 1962 AIR CLEANER Diagram

#

Description

Price

1

AIR CLEANER ASSY

162-14410-00-00

Unavailable

2

. ELEMENT, AIR CLNR

162-14451-01-00

Unavailable

3

. CASE, AIR CLNR

162-14411-00-00

Unavailable

4

. COVER, AIR, CLEANER

162-14412-00-00

Unavailable

5

. AIR PLATE

162-14422-00-00

Unavailable

6

BOLT(3JP)

97017-06010-00

$2.44

7

. STAY

162-14498-00-00

Unavailable

8

. SCREW

162-14496-00-00

Unavailable

9

NUT, HEXAGON

95380-06600-00

$4.11

10

WASHER, SPRING

92995-06100-00

$2.95

11

YBS66-6 WASHER, PLAIN

92990-06200-00

$0.73

12

CLAMP,HOSE

90460-37051-00

Unavailable

13

JOINT,AIR CLNR 1

102-14453-01-00

Unavailable

14

CLAMP,HOSE

90460-33013-00

Unavailable

15

JOINT, PIPE

162-13555-00-00

Unavailable

16

GASKET, JOINT

102-13556-00-00

Unavailable

17

SCREW, PAN

98507-06014-00

Unavailable

18

O-RING

93210-18025-00

Unavailable
