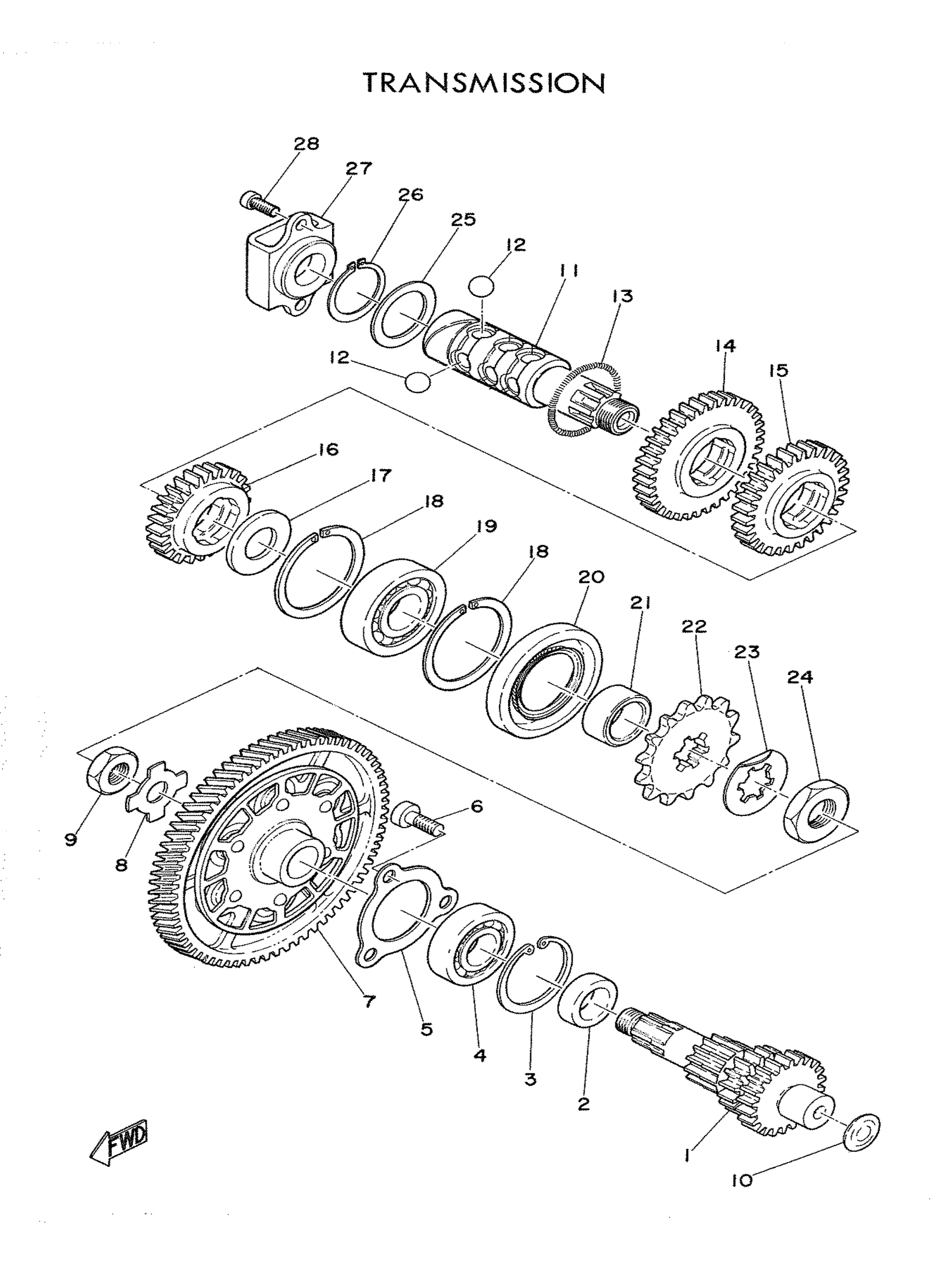

Yamaha MJ2 (MJ2) 107 1962 TRANSMISSION Diagram

#

Description
Price

1

MAIN AXLE

102-17411-00-00

Unavailable

2

COLLAR

90387-20346-00

Unavailable

3

CIR-CLIP (70R)

93420-40064-00

Unavailable

4

BEARING (7X9)

93306-20327-00

$38.99

5

PLATE, BRNG COVER

102-15381-00-00

Unavailable

6

SCREW, PAN

98517-06012-00

$3.78

7

PRIMARY DRIVEN GEAR COMP

102-16150-00-00

Unavailable

8

WASHER, LOCK

102-16175-00-00

Unavailable

9

NUT, HEXAGON

90170-12170-00

Unavailable

10

PLUG,EXPANSION

90330-20004-00

Unavailable

11

AXLE, DRIVE

102-17421-00-00

Unavailable

12

BALL

93506-16006-00

Unavailable

14

GEAR, 1ST WHEEL

102-17211-00-00

Unavailable

15

GEAR, 2ND WHEEL

102-17221-00-00

Unavailable

16

GEAR, 3RD WHEEL

102-17231-00-00

Unavailable

17

SPACER

90560-20082-00

Unavailable

18

CIRCLIP, INNER

93450-47011-00

Unavailable

19

BEARING(1YW)

93306-20461-00

Unavailable

20

OIL SEAL (28X47X7-102)

93102-28022-00

Unavailable

21

COLLAR

90387-20346-00

Unavailable

22

SPROCKET,DRIVE 14T(5171746142)

93812-14035-00

Unavailable

23

WASHER, LOCK (1L8)

90215-16127-00

Unavailable

24

NUT,SPEC'L SHAPE

90179-16018-00

Unavailable

25

SHIM 1

102-17427-00-00

Unavailable

26

CIRCLIP(JF7)

99009-25400-00

Unavailable

27

BUCKET, OIL

102-17488-00-00

Unavailable

28

SCREW, PAN HEAD

92501-04010-00

Unavailable
