Partiron

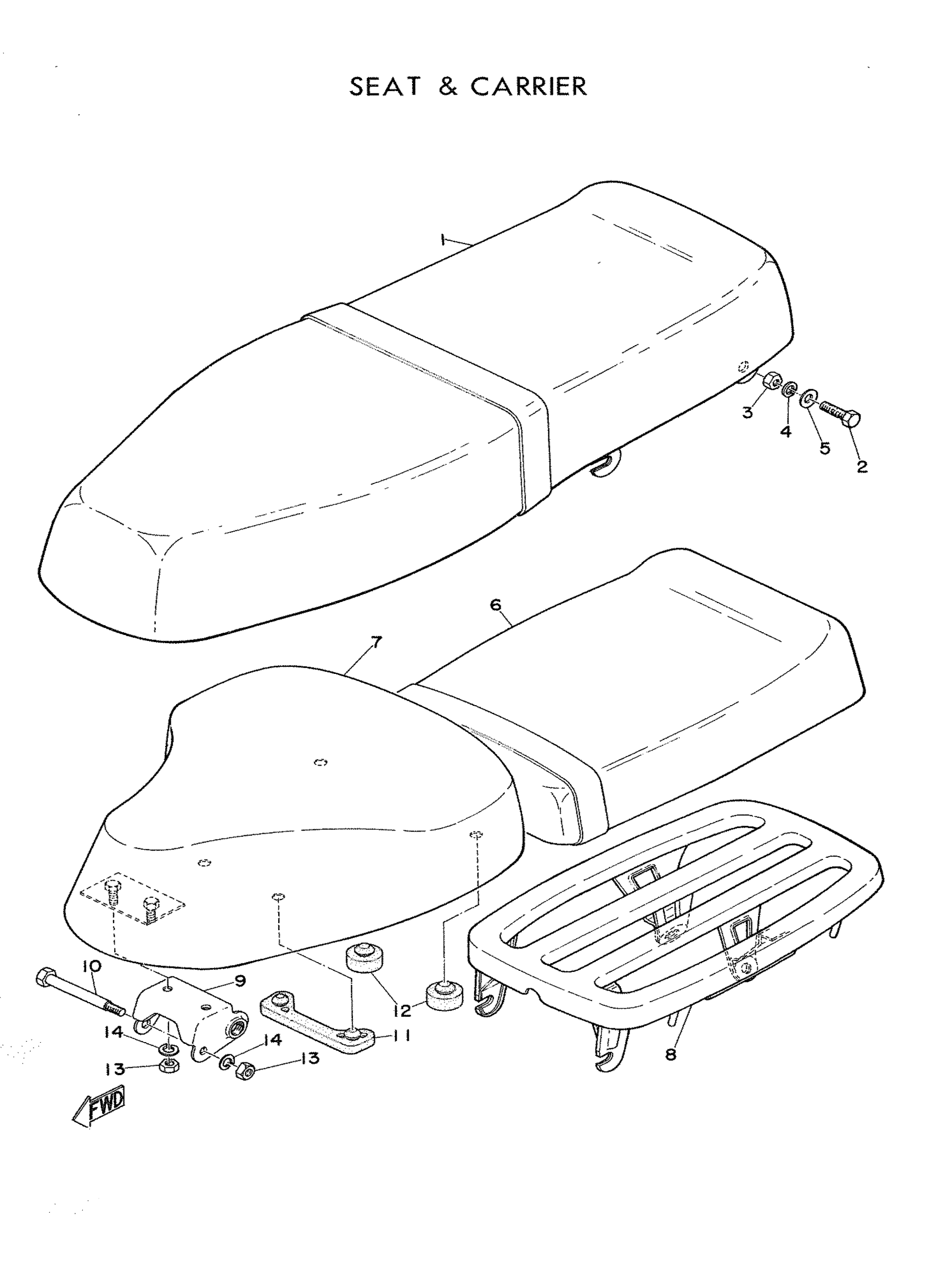

Yamaha MJ2 (MJ2) 107 1962 SEAT - CARRIER Diagram

#

Description
Price

1

DOUBLE SEAT ASSEMBLY

107-24730-00-00

Unavailable

2

BOLT(JA9)

90101-08691-00

$4.65

3

. NUT

95380-08700-00

$3.05

4

YBS67-8 WASHER, SPRING

92990-08100-00

$4.23

5

WASHER, PLAIN

92990-08200-00

$2.36

6

TANDEM SEAT ASSEMBLY

107-24750-00-00

Unavailable

7

SINGLE SEAT ASSEMBLY

102-24710-00-00

Unavailable

8

CARRIER ASSEMBLY

102-24810-00-00

Unavailable

9

HINGE

102-24726-00-00

Unavailable

10

PIN

102-24727-00-00

Unavailable

11

DAMPER, SEAT

102-24723-00-00

Unavailable

12

STOPPER

256-27314-00-00

Unavailable

13

NUT, HEXAGON

95380-06600-00

$4.11

14

WASHER, SPRING

92995-06100-00

$2.95
