Description

Price

1

REAR ARM

102-22110-02-00

Unavailable

2

BUSH 1

102-22123-00-00

Unavailable

3

SHAFT, PIVOT

486-22141-01-00

$33.99

4

NUT(3BM)

95314-10600-00

$2.39

5

SEAL,GUARD

296-22151-01-00

Unavailable

6

CASE, CHAIN

102-22310-00-00

Unavailable

7

SCREW, PAN HEAD (686)

98580-05035-00

Unavailable

8

NUT, HEXAGON SMALL

95317-05700-00

$8.49

9

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

10

. WASHER, PLAIN

92990-05200-00

Unavailable

11

SCREW, PAN HEAD(4MY)

98507-05018-00

$3.28

12

SCREW, PAN HEAD(4MY)

98507-05018-00

$3.28

13

CAP, REAR ARM

180-22117-00-00

$7.99

14

CAP

148-22315-00-00

$7.99

15

REAR FOOTREST ASSY

120-27430-00-00

Unavailable

16

BOLT

97013-10040-00

Unavailable

17

YBS67-10 WASHER, SPRING

92990-10100-00

Unavailable

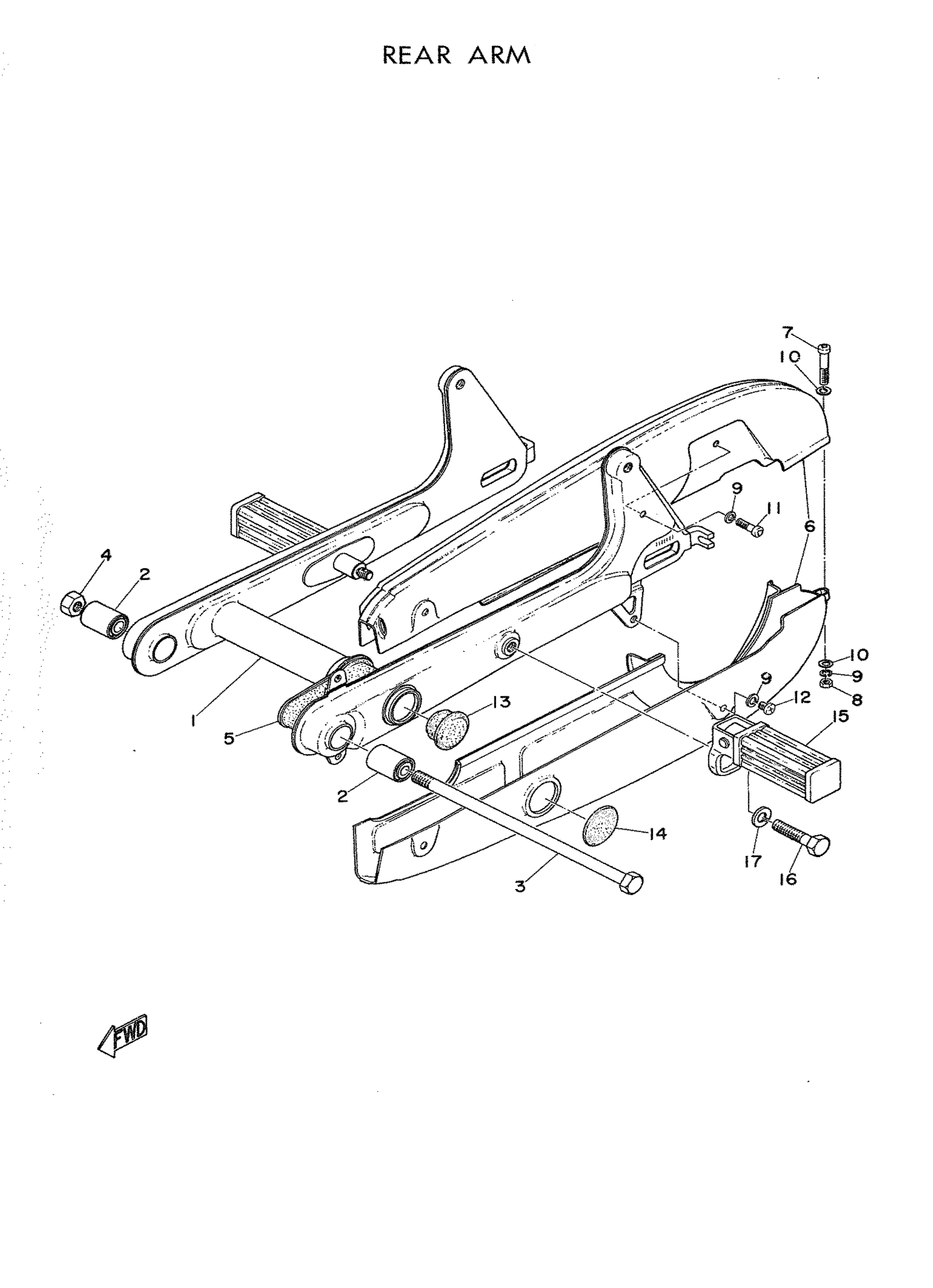

Yamaha MJ2 (MJ2) 107 1962 REAR ARM - CHAIN CASE Diagram

REAR ARM

BUSH 1

SHAFT, PIVOT

NUT(3BM)

SEAL,GUARD

CASE, CHAIN

SCREW, PAN HEAD (686)

NUT, HEXAGON SMALL

YBS67-5 WASHER, SPRING

. WASHER, PLAIN

SCREW, PAN HEAD(4MY)

SCREW, PAN HEAD(4MY)

CAP, REAR ARM

CAP

REAR FOOTREST ASSY

BOLT

YBS67-10 WASHER, SPRING
