1962 Yamaha MJ2 (MJ2) LEG Shield Diagram

← All diagrams

Find the part on the LEG Shield diagram for your 1962 Yamaha MJ2 (MJ2), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

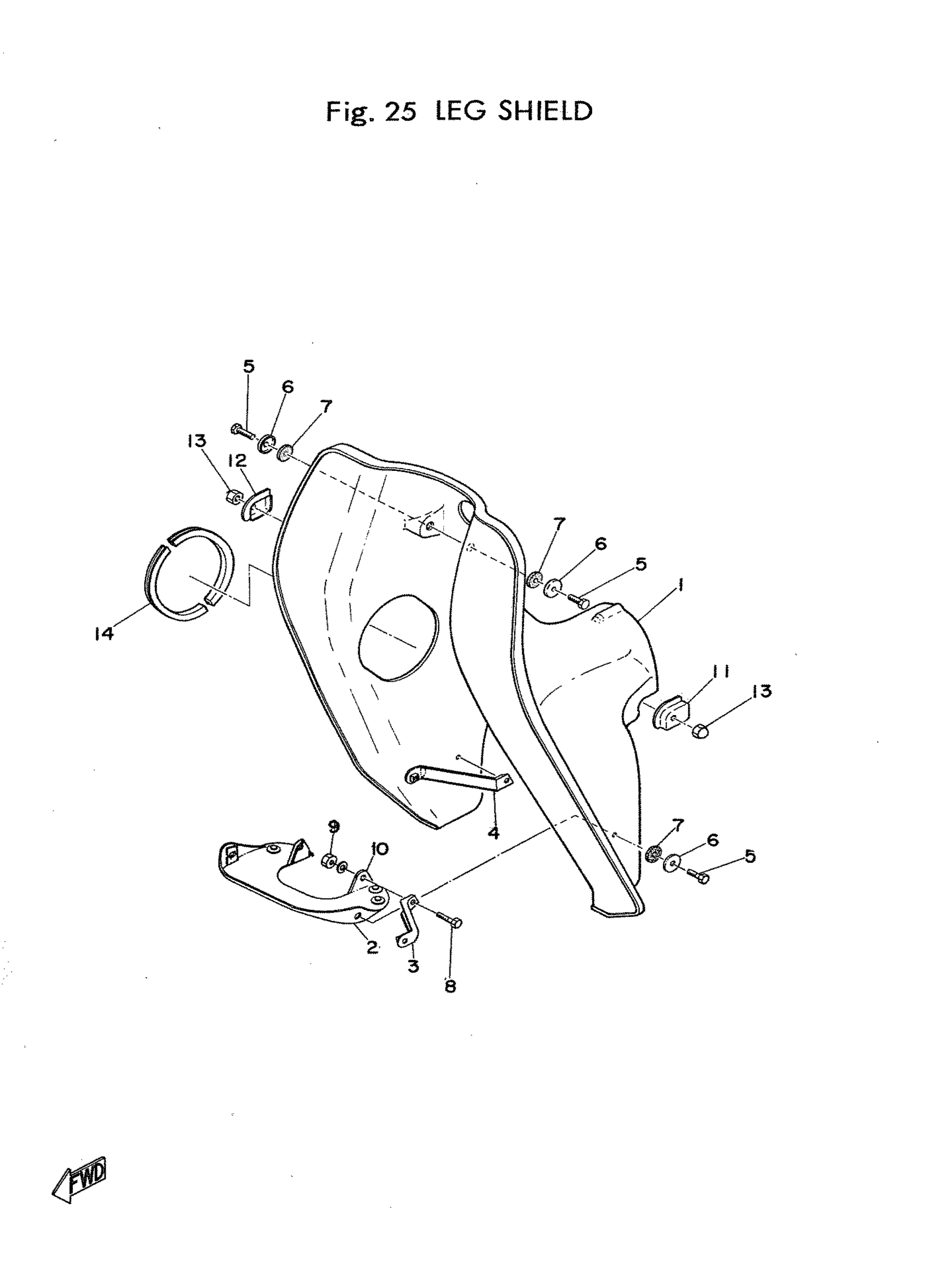

1962 Yamaha MJ2 (MJ2) LEG Shield Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LEG SHIELD

102-28311-01-00

1
Out of stock

2

PLATE, ENGINE GUARD

102-28341-00-00

1
Out of stock

3

STAY (LH)

102-28321-00-00

1
Out of stock

4

STAY (RH)

102-28322-00-00

1
Out of stock

5

BOLT(3DM)

97024-06020-00

1

$6.17

In stock

6

WASHER

90209-06012-00

1

$4.71

In stock

7

WASHER PLATE 102283270000

90202-06013-00

1
Out of stock

8

BOLT, HEXAGON

97017-06030-00

1

$3.00

In stock

9

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

10

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

11

WASHER, LEG SHIELD (LH)

102-28325-00-00

1
Out of stock

12

WASHER, LEG SHIELD (RH)

102-28326-00-00

1
Out of stock

13

NUT, CROWN

95303-08800-00

1

$7.52

In stock

14

SEAL, AIR CLEANER

102-14452-00-00

1
Out of stock
← Frame LEG Shield →
