1962 Yamaha MJ2 (MJ2) Handle - Cable Diagram

← All diagrams

Find the part on the Handle - Cable diagram for your 1962 Yamaha MJ2 (MJ2), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

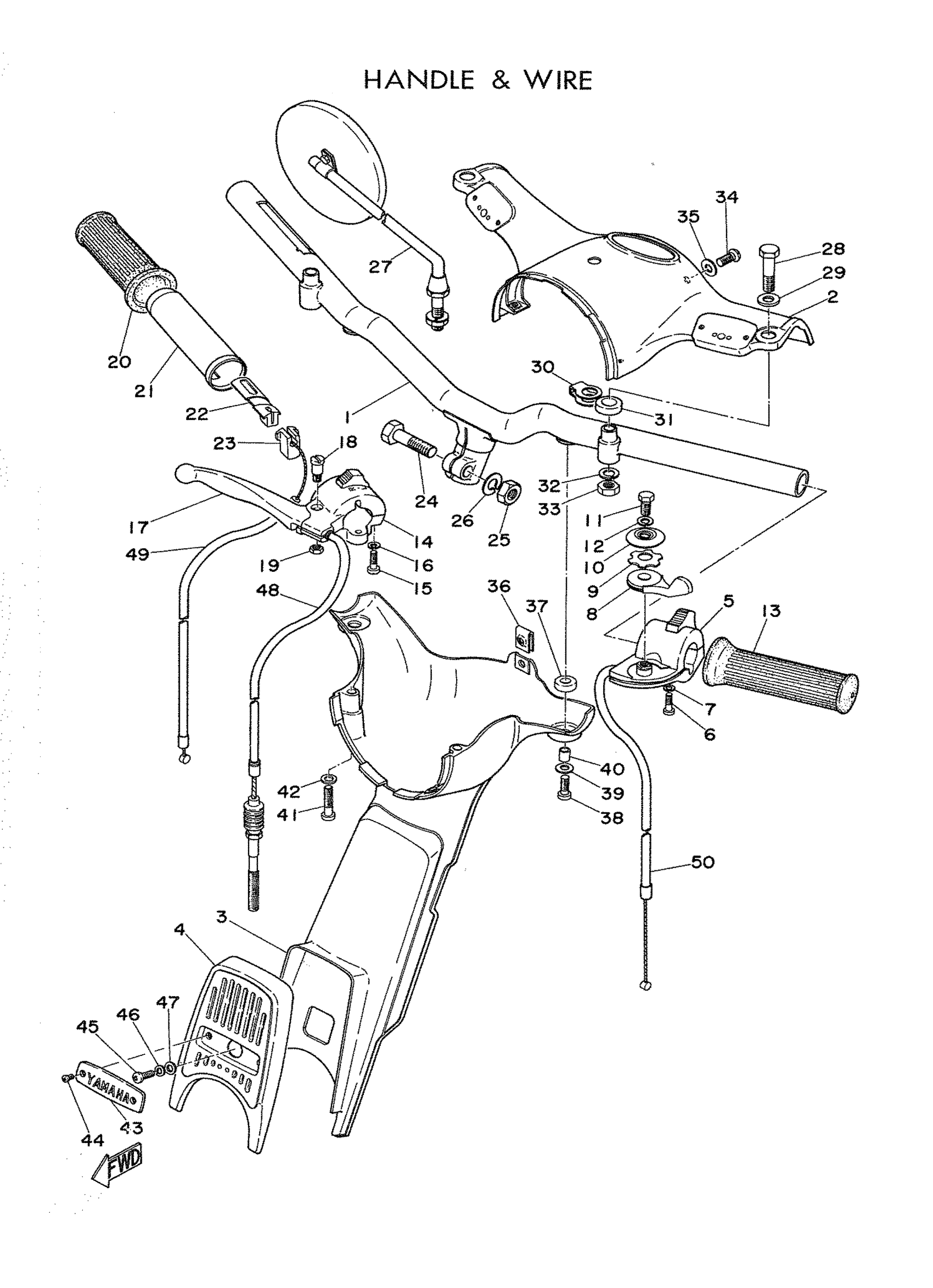

1962 Yamaha MJ2 (MJ2) Handle - Cable Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HANDLE

102-26211-01-24

1
Out of stock

2

COVER, UPPER

102-26213-01-00

1
Out of stock

3

COVER, UNDER

102-26215-00-00

1
Out of stock

4

PANEL, FRONT

102-23391-00-00

1
Out of stock

5

LEVER HOLDER ASY 1

102-82610-90-94

1
Out of stock

6

. SCREW

92501-05100-00

1
Out of stock

7

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

8

LEVER, STARTER

136-83941-00-00

1
Out of stock

9

WASHER,SPEC'L SHAP

90209-12115-00

1
Out of stock

10

COVER, STARTER

136-83942-00-00

1
Out of stock

11

BOLT (11T)

90101-06576-00

1

$6.46

In stock

12

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

13

GRIP LH

102-26241-00-00

1
Out of stock

14

LEVER HOLDER ASSEMBLY 1

124-82710-11-94

1
Out of stock

15

SCREW, PAN HEAD

90157-05M19-00

1

$3.62

In stock

16

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

17

. LEVER R

122-83922-01-00

1
Out of stock

18

SCREW, PAN HEAD(4MY)

98507-05018-00

—

$2.48

In stock

19

NUT, HEXAGON SMALL

95317-05700-00

—

$6.18

In stock

20

GRIP RH

102-26242-00-00

1
Out of stock

21

TUBE,THRTL GUIDE

207-26243-00-00

1
Out of stock

22

SLIDER, THROTTLE

102-26244-00-00

1
Out of stock

23

STOPPER,CABLE

135-26245-00-00

1
Out of stock

24

BOLT

97013-10040-00

1
Out of stock

25

NUT, SELF LOCKING

90185-10031-00

1
Out of stock

26

YBS67-10 WASHER, SPRING

92990-10100-00

—

$2.43

In stock

27

MIRROR ASSY (RH)

102-26290-00-00

1
Out of stock

28

BOLT

97013-08045-00

—
Out of stock

29

WASHER, SPEC''L SHAP

102-23457-00-00

1
Out of stock

30

EARTH LUG

102-83938-00-00

1
Out of stock

31

DAMPER, HANDLE UNDER

102-23455-00-00

1
Out of stock

32

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

33

NUT(6L2)

95333-08600-00

—

$3.20

In stock

34

SCREW

102-26229-00-00

1
Out of stock

35

WASHER, SPECIAL

102-23458-00-00

1
Out of stock

36

NUT, SPEED

102-21791-00-00

1
Out of stock

37

DAMPER, HANDLE UNDER

102-23455-00-00

1
Out of stock

38

SCREW, PAN HEAD(4MY)

98507-05018-00

—

$2.48

In stock

39

. WASHER, PLAIN

92990-05200-00

1

$5.08

In stock

40

SPACER

102-23448-00-00

1
Out of stock

41

SCREW

92501-05030-00

1
Out of stock

42

. WASHER, PLAIN

92990-05200-00

1

$5.08

In stock

43

EMBLEM

102-23395-00-00

1
Out of stock

44

SCREW,PAN HEAD

92501-03008-00

1
Out of stock

45

SCREW PAN HEAD

98580-06010-00

—

$6.17

In stock

46

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

47

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

48

CABLE,BRAKE

102-26341-01-00

1
Out of stock

49

CABLE, THROTTLE 1

102-26311-00-00

1
Out of stock

50

CABLE, STARTER

102-26331-00-00

1
Out of stock
