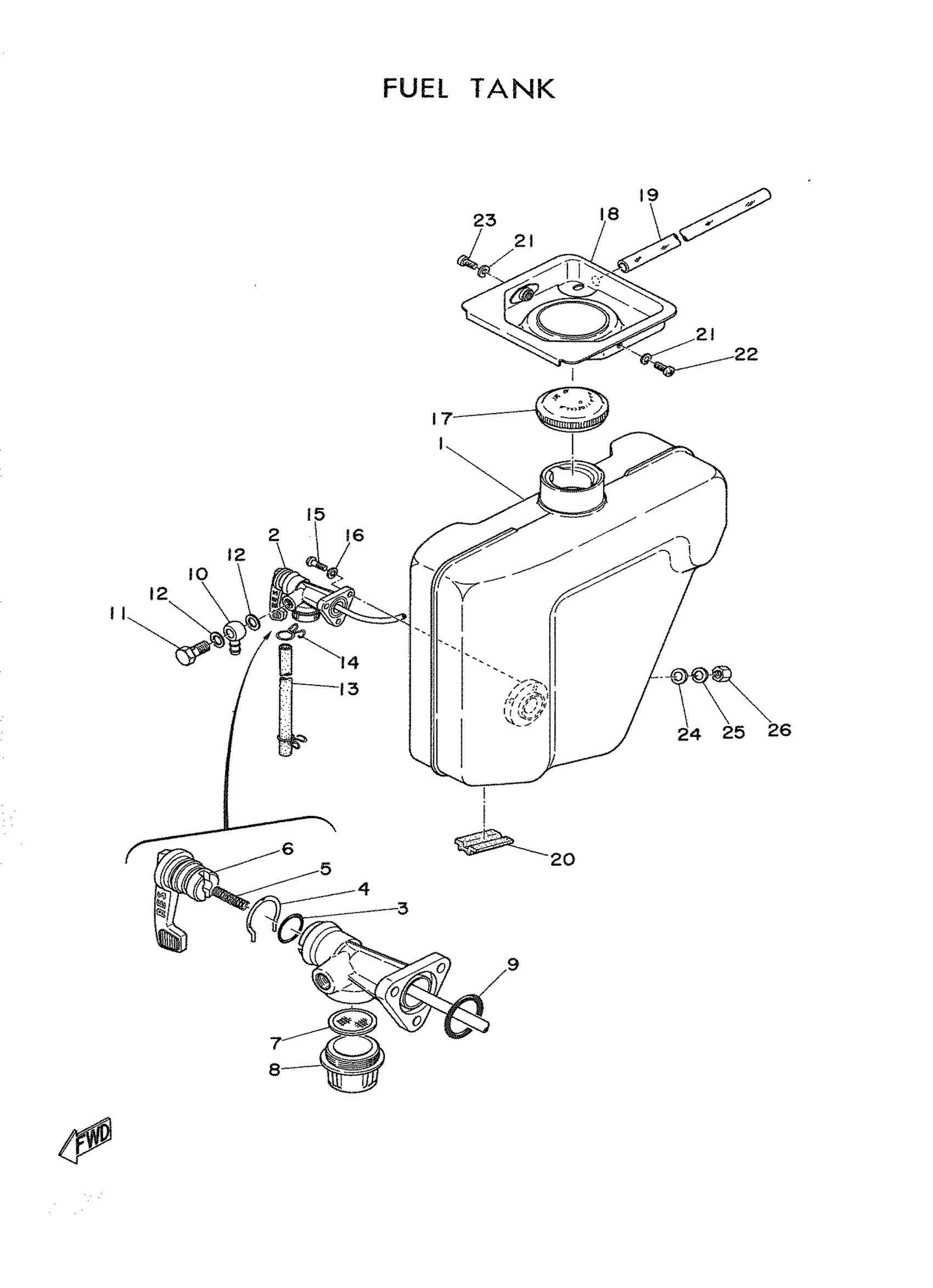

Yamaha MJ2 (MJ2) 107 1962 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK COMP

102-24110-00-00

Unavailable

2

FUEL COCK ASSY

102-24500-00-00

Unavailable

3

. GASKET

102-24513-00-00

Unavailable

4

. CLIP

102-24519-01-00

Unavailable

5

SPRING,COMPRESSION

90501-07029-00

Unavailable

6

. LEVER, COCK

102-24524-00-00

Unavailable

7

NET,FILTER 2

102-24515-00-00

Unavailable

8

. CUP, FILTER

102-24521-00-00

Unavailable

9

. GASKET, BODY

102-24512-00-00

Unavailable

10

COLLAR, BANJO BOLT

101-24526-00-00

Unavailable

11

BOLT,UNION

90401-08003-00

Unavailable

12

GASKET

102-24528-00-00

Unavailable

13

PIPE, FUEL

102-24311-00-00

Unavailable

14

CLIP 101235600

90467-08003-00

$10.49

15

SCREW,PAN HEAD

92503-04012-00

Unavailable

16

YBS67-4 WASHER, SPRING

92990-04100-00

Unavailable

17

CAP ASSY

102-24610-00-00

Unavailable

18

BRACKET, FUEL TANK

102-24191-00-00

Unavailable

19

PIPE, OVERFLOW

102-24318-00-00

Unavailable

20

DAMPER, LOCATING

102-24183-00-00

Unavailable

21

WASHER, SPRING

92995-06100-00

Unavailable

22

SCREW PAN HEAD

98580-06010-00

Unavailable

23

SCREW

92301-06015-00

Unavailable

24

WASHER

102-24186-00-00

Unavailable

25

WASHER, SPRING

92995-06100-00

Unavailable

26

NUT, HEXAGON

95380-06600-00

Unavailable
