- MJ2 (MJ2) 107 1962
FRONT FORK

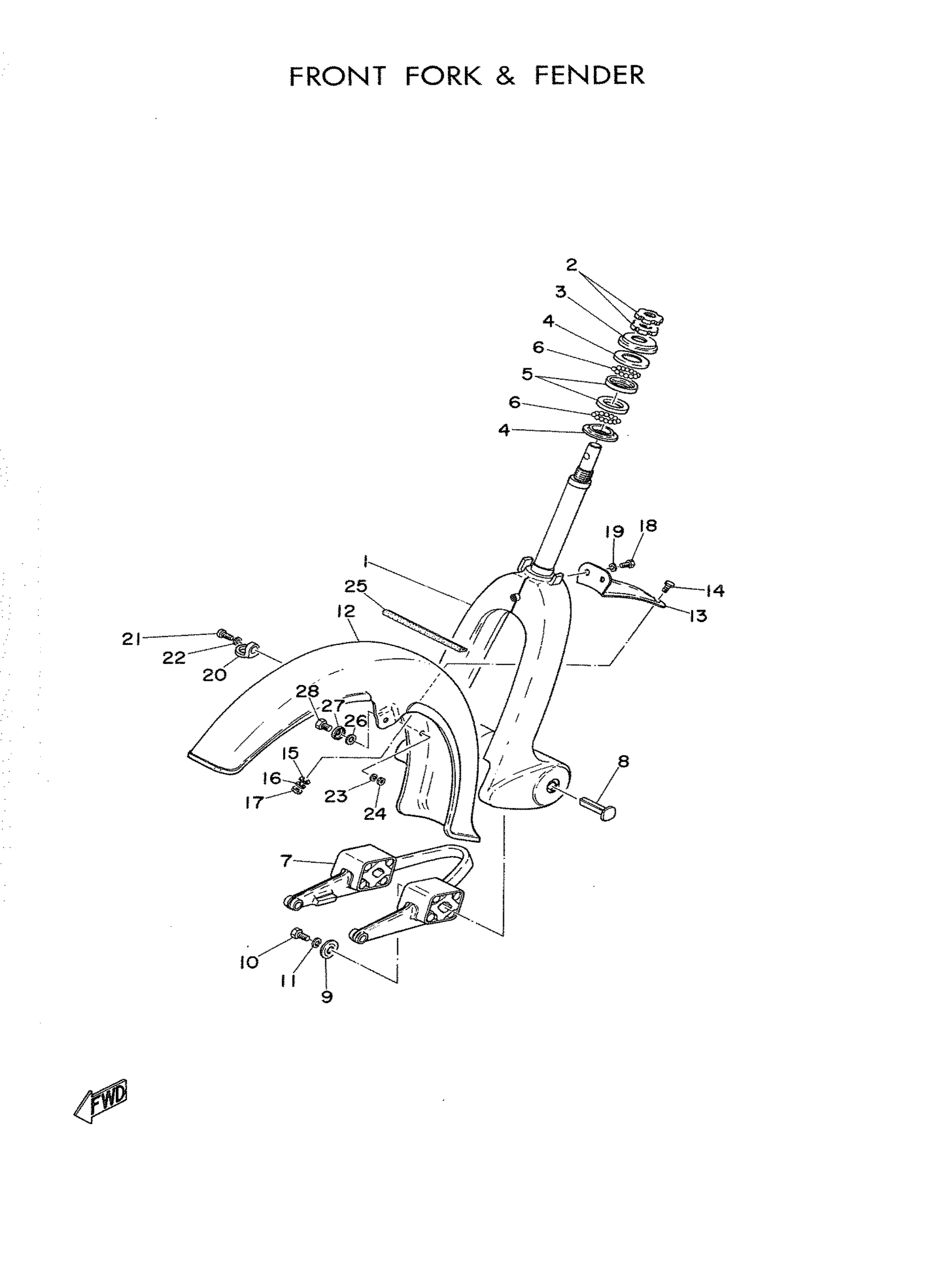

Yamaha MJ2 (MJ2) 107 1962 FRONT FORK Diagram
#
1
FRONT FORK ASSY
102-23310-00-00
Unavailable
2
NUT, FITTING
102-23454-00-00
Unavailable
3
COVER, BALL RACE
102-23415-00-00
Unavailable
4
RACE, BALL 1
B6E-23411-00-00
$8.49
5
RACE, BALL 2
B6E-23412-00-00
$13.49
6
BALL
93501-04011-00
$8.49
7
ARM ASY 1
102-23360-00-00
Unavailable
8
STEM, SQUARE
102-23368-00-00
Unavailable
8
BOLT, HEXAGON
97013-08020-00
$1.16
9
WASHER, SQUARE STEM
102-23369-00-00
Unavailable
10
BOLT(JA9)
90101-08691-00
$4.29
11
YBS67-8 WASHER, SPRING
92990-08100-00
$5.60
12
FENDER,FRONT
102-21511-00-24
Unavailable
13
STAY,FENDER 1
102-21513-00-81
Unavailable
14
BOLT, HEXAGON DEEP RECESS
97D95-06016-00
$2.76
15
YBS66-6 WASHER, PLAIN
92990-06200-00
Unavailable
16
WASHER, SPRING
92995-06100-00
Unavailable
17
NUT, HEXAGON
95380-06600-00
Unavailable
18
BOLT(3JP)
97017-06010-00
Unavailable
19
WASHER, SPRING
92995-06100-00
Unavailable
20
HOLDER, WIRW
102-21518-00-00
Unavailable
21
SCREW, PAN
98507-06014-00
Unavailable
22
YBS66-6 WASHER, PLAIN
92990-06200-00
Unavailable
23
WASHER, SPRING
92995-06100-00
Unavailable
24
NUT, HEXAGON
95380-06600-00
Unavailable
25
PAD, FRONT FENDER
102-21517-00-00
Unavailable
26
WASHER PLATE 102283270000
90202-06013-00
Unavailable
27
WASHER
90209-06012-00
Unavailable
28
BOLT(3JP)
97017-06010-00
Unavailable
