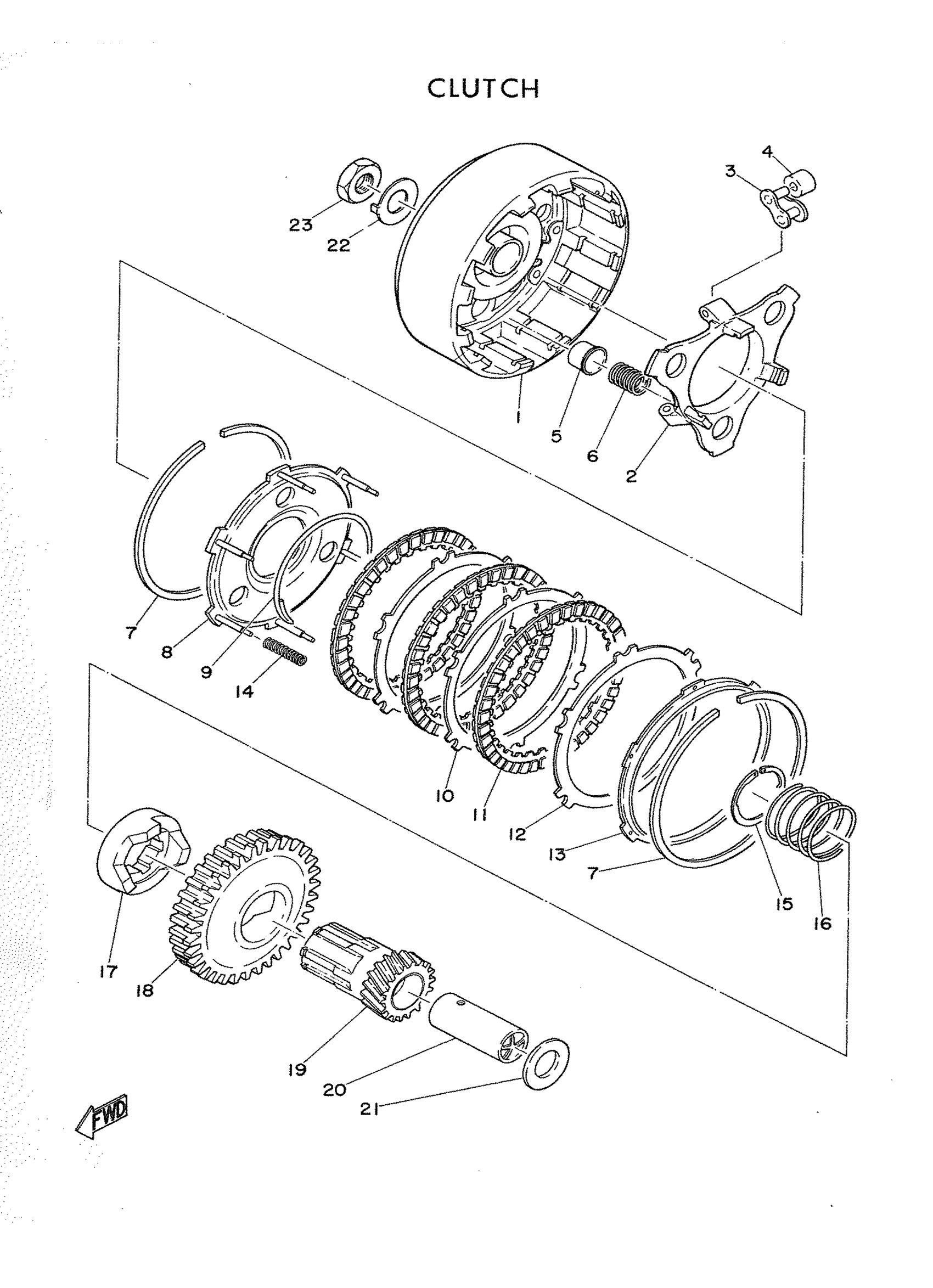

Yamaha MJ2 (MJ2) 107 1962 CLUTCH Diagram

#

Description

Price

1

HOUSING, CLUTCH

102-16511-00-00

Unavailable

2

BRACKET

102-16546-00-00

Unavailable

3

JOINT, CHAIN(3KX)

94681-64001-00

$4.89

4

ROLLER

102-16549-00-00

Unavailable

5

CLUTCH, SPRING BOX

102-16535-00-00

Unavailable

6

SPRING, CLUTCH

102-16533-00-00

Unavailable

7

CLIP

102-16529-00-00

Unavailable

8

PLATE, PRESSURE

102-16551-00-00

Unavailable

9

LINK, ROLLER

102-16547-00-00

Unavailable

10

PLATE, CLUTCH

102-16525-00-00

Unavailable

11

PLATE, FRICTION

102-16521-00-00

Unavailable

12

WASHER, PLATE

90201-23315-00

Unavailable

13

PLATE, PIN

102-16561-00-00

Unavailable

14

SPRING,COMPRESSION

90501-08033-00

Unavailable

15

CLIP

102-16589-00-00

Unavailable

16

SPRING

102-16587-00-00

Unavailable

17

COUPLING

102-16588-00-00

Unavailable

18

BOSS, CLUTCH

102-16571-00-00

Unavailable

19

GEAR, PRIMARY DRIVE

102-16111-00-00

Unavailable

20

SPACER

102-16181-00-00

Unavailable

21

PLATE, THRUST

102-16114-00-00

Unavailable

22

WASHER, LOCK

136-16135-00-00

Unavailable

23

NUT, HEXAGON 1371637700

90170-12060-00

Unavailable
