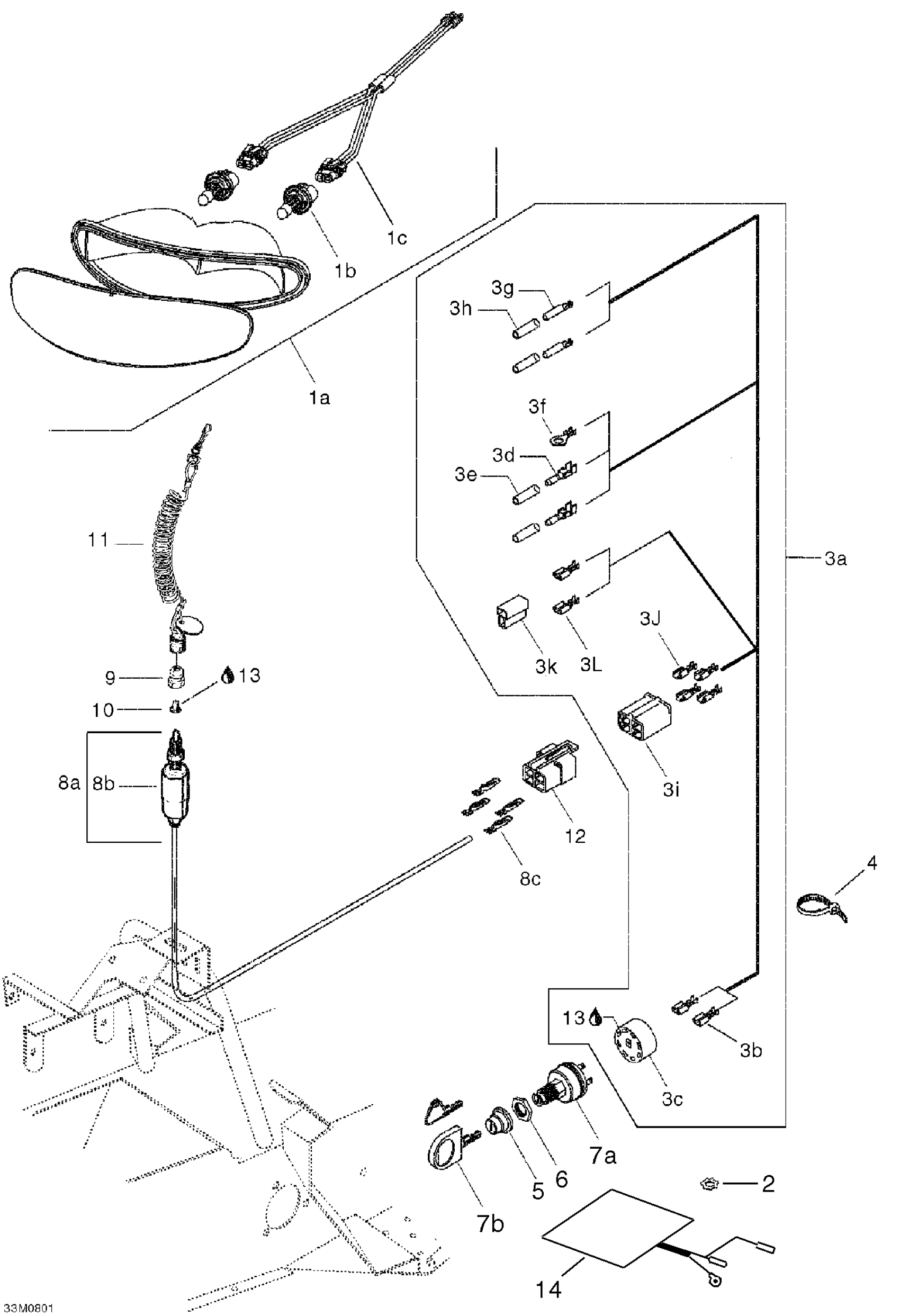

Ski-Doo Mini Z, 2008 10- Electrical System Diagram

#

Description
Price

1a

Headlamp | Includes 1 to 3

515175746

Unavailable

1b

BULB - Call your local BRP dealership

415128619

Unavailable

1c

HEAD LAMP HARNESS - Call your local BRP dealership

415128618

Unavailable

2

External Serrated Lock Washer 6 mm

234461608

$1.15

3a

HARNESS ASS'Y - Call your local BRP dealership | Includes 3a to 3L

515176611

Unavailable

3b

Female Terminal

561503100

$2.41

3c

FEMALE TERMINAL HOUSING, 9 CIRCUITS - Call your local BRP dealership

572150700

Unavailable

3d

Male Terminal

278000230

$4.39

3e

Insulated Sheath

278001008

$3.28

3f

Open Barrel

278000992

$2.21

3g

Female Terminal | DS 650 X

278001009

$3.19

3h

Insulated Sheath

278001007

$3.58

3i

FEMALE HOUSING - Call your local BRP dealership

409204900

Unavailable

3j

Female Terminal

515175724

Unavailable

3k

Female Housing, 2 Circuits

515175658

$16.18

3L

Female Terminal

515175231

$4.39

4

Tie Wrap 142 mm

293750002

$1.25

5

Switch Boot

570013700

$11.49

6

FACE NUT - Call your local BRP dealership

410112100

Unavailable

7a

IGNITION SWITCH - Call your local BRP dealership

515176548

Unavailable

7b

Not Available As Spare Part - Friction Washer

Unavailable

8a

Brake Switch

515175653

$19.49

8b

Brake Switch

515175653

$19.49

8c

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

9

Switch Nut

515145900

$12.12

10

Plunger Cap

570151100

$9.85

11

CAP ASS'Y - Call your local BRP dealership

515176464

Unavailable

12

MALE HOUSING - Call your local BRP dealership

409209300

Unavailable

13

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

14

Heated Film

515176489

Unavailable
