Description

Price

1

Frame Ass'y

518323447

Unavailable

2

Pop Rivet 3/16"

390402300

$0.75

3

RH Footrest

518321950

Unavailable

4

LH Footrest

518321952

Unavailable

5

Plug

414404800

Unavailable

6

Bumper

518323466

Unavailable

7

Hex. Screw M6 X 20 | XT Models

207162044

$0.76

8

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

9

Flat Washer

224061201

$1.37

10

Adjustable Plate

518321300

Unavailable

11

Hex. Screw M5 X 16 | 4X4

207151644

$0.90

12

Elastic Stop Nut M5

232551414

$0.87

13

Flat Washer M5

234051410

$0.53

14

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

15

Snow Guard

572099800

Unavailable

16

Pop Rivet 3/16”

293150108

$1.19

17

Flat Washer

517225900

$0.18

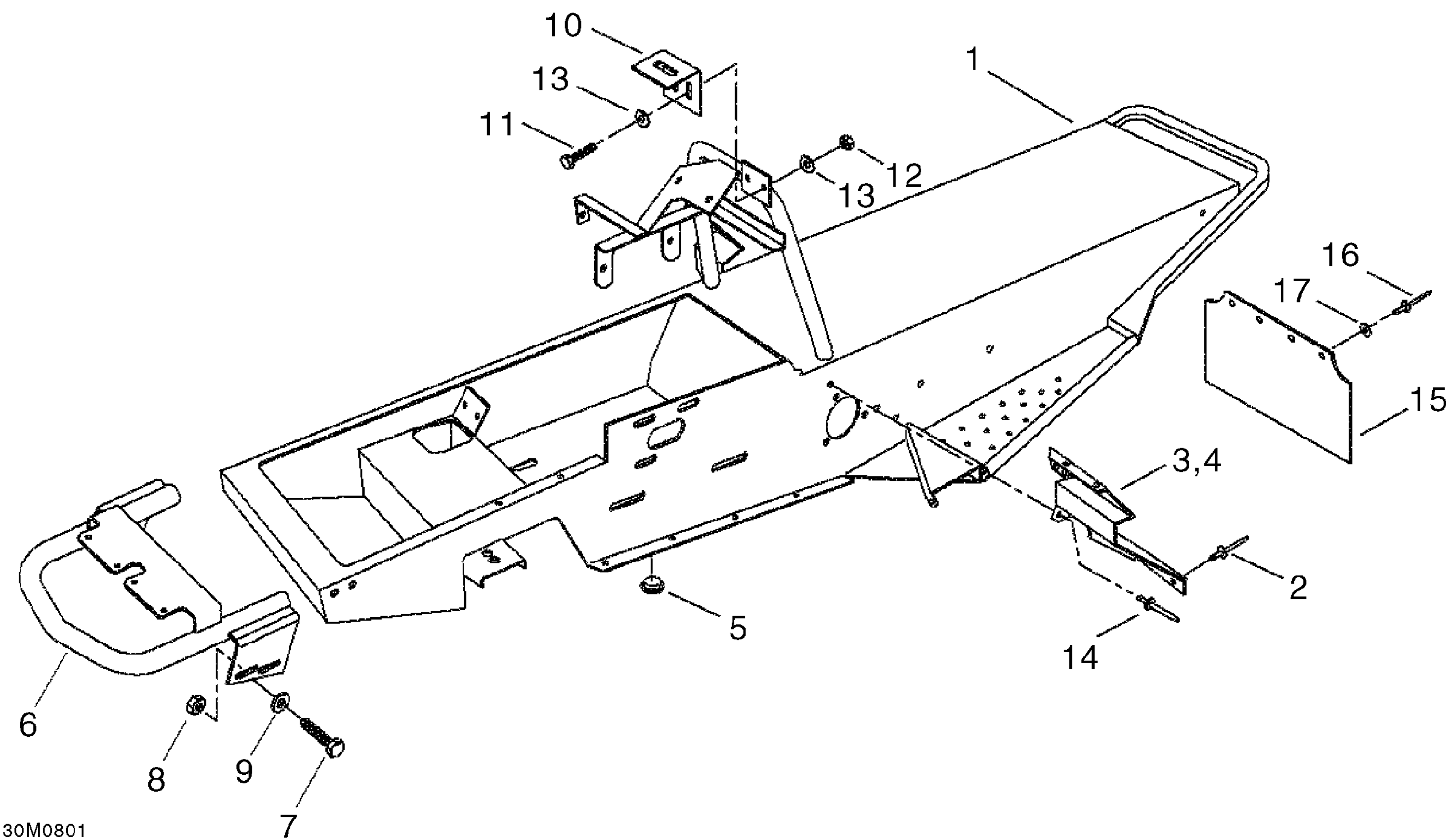

Ski-Doo Mini Z, 2008 09- Frame Diagram

Frame Ass'y

Pop Rivet 3/16"

RH Footrest

LH Footrest

Plug

Bumper

Hex. Screw M6 X 20 | XT Models

Hex. Flange Elastic Nut M6 x 1.0

Flat Washer

Adjustable Plate

Hex. Screw M5 X 16 | 4X4

Elastic Stop Nut M5

Flat Washer M5

Pop Rivet 3/16" | DS 650 X

Snow Guard

Pop Rivet 3/16”

Flat Washer
