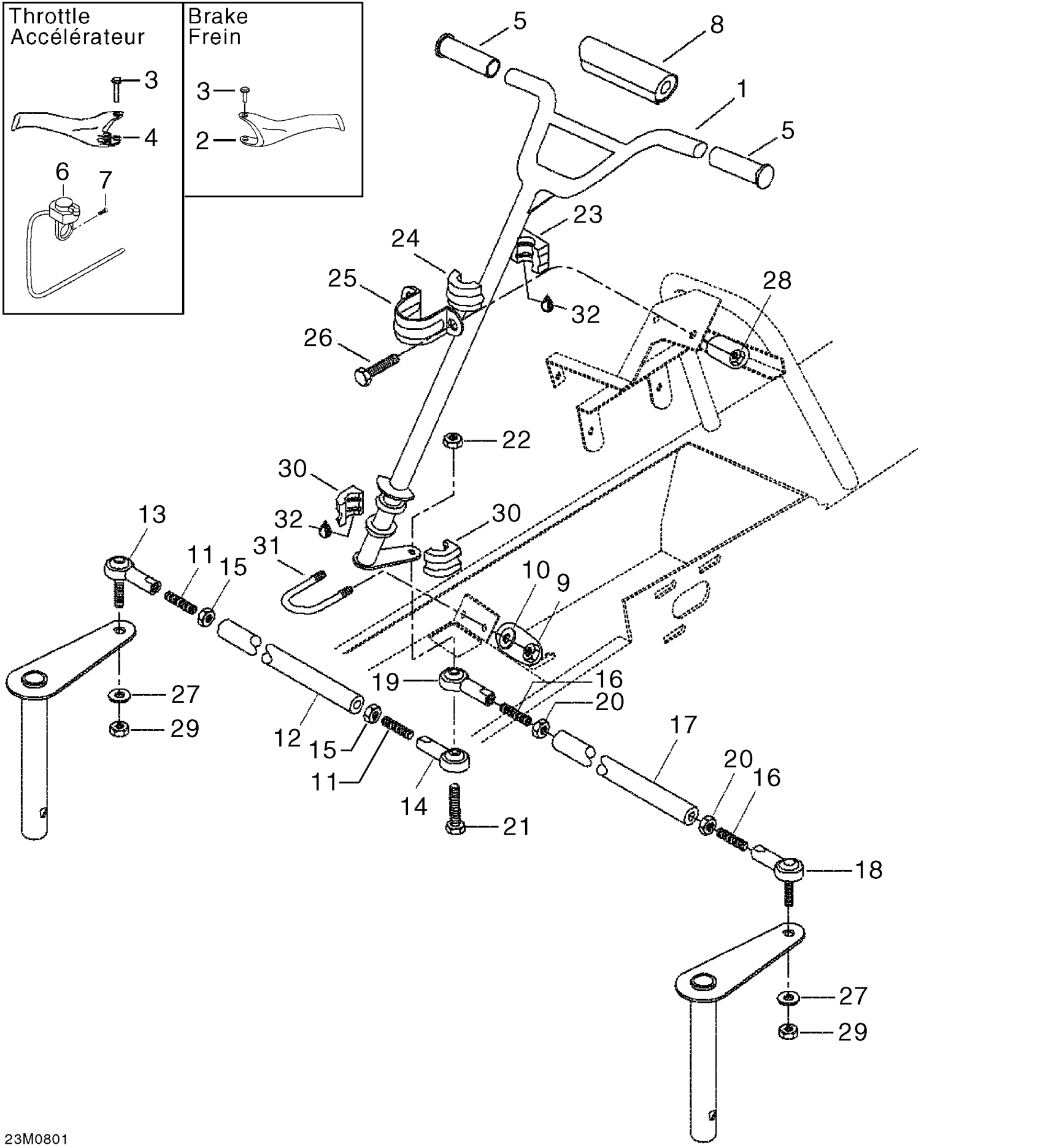

Ski-Doo Mini Z, 2008 Steering Diagram

#

Description
Price

1

Handle Bar

506151696

Unavailable

2

BRAKE HANDLE - Call your local BRP dealership

506151225

Unavailable

3

Tubular Rivet

390502000

Unavailable

4

THROTTLE HANDLE - Call your local BRP dealership

506151227

Unavailable

5

HANDLE GRIP - Call your local BRP dealership

572064100

Unavailable

6

Kill Switch

515177454

Unavailable

7

PHILLIPS TAPPING SCREW M4.8 X 16 - Call your local BRP dealership

250000031

Unavailable

8

Steering Padding

572103400

Unavailable

9

Hex. Elastic Stop Nut M8

232581414

$0.54

10

Flat Washer 8 mm

234081410

$0.79

11

Socket Set Screw M8 x 50

206285044

$4.37

12

TIE ROD (SHORT) - Call your local BRP dealership

506151693

Unavailable

13

BALL JOINT - Call your local BRP dealership

415108500

Unavailable

14

LH BALL JOINT - Call your local BRP dealership

506151729

Unavailable

15

Hex. Nut M8

232081414

$0.69

16

Socket Set Screw M8 x 50

206285044

$4.37

17

TIE ROD (LONG) - Call your local BRP dealership

506151695

Unavailable

18

BALL JOINT - Call your local BRP dealership

415108500

Unavailable

19

LH BALL JOINT - Call your local BRP dealership

506151729

Unavailable

20

Hex. Nut M8

232081414

$0.69

21

Hex. Screw M8 X 40

207084044

$1.06

22

Hex. Flange Elastic Nut M8

233281414

$1.31

23

Bushing

572064400

Unavailable

24

BUSHING - Call your local BRP dealership

572064500

Unavailable

25

Retainer Support

517126200

Unavailable

26

Hex. Screw M8 X 20

207182044

$0.70

27

Flat Washer 8 mm

234081410

$0.79

28

Hex. Elastic Stop Nut M8

232581414

$0.54

29

Hex. Flange Elastic Nut M8

233281414

$1.31

30

HALF-BUSHING - Call your local BRP dealership

572067100

Unavailable

31

U-clamp | X

506060600

$14.90

32

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable
