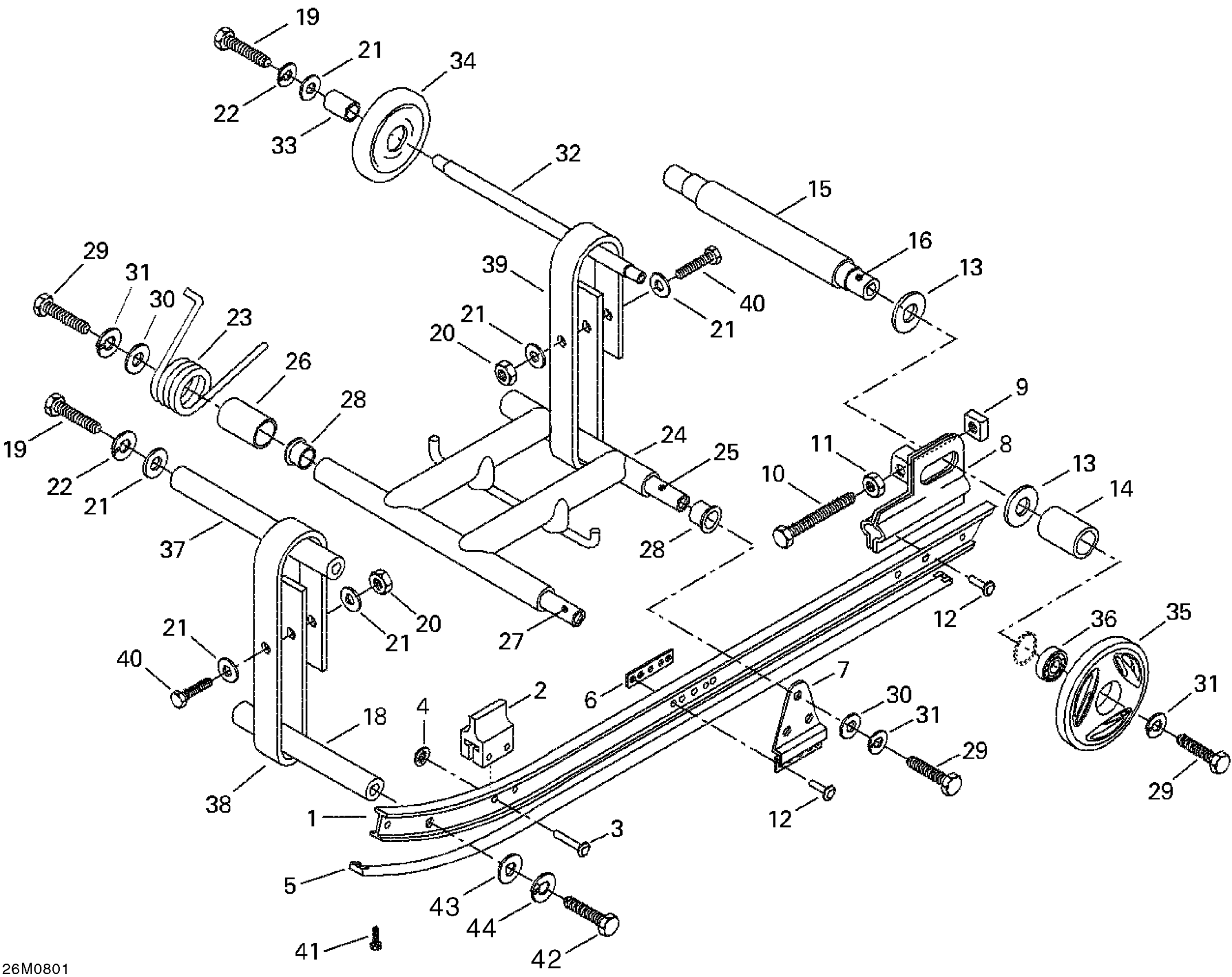

Ski-Doo Mini Z, 2008 Rear Suspension Diagram

#

Description
Price

1

Runner

503190219

Unavailable

2

FRONT RUBBER STOPPER - Call your local BRP dealership

570047900

Unavailable

3

RIVET-STEEL SOLID - Call your local BRP dealership

390004800

Unavailable

4

Push Nut

389804300

$0.49

5

RUNNER - Call your local BRP dealership

503190235

Unavailable

6

SCREW M4.8 X 19 - Call your local BRP dealership

210641940

Unavailable

7

SPACER - Call your local BRP dealership

503188900

Unavailable

8

FRONT ARM SUPPORT - Call your local BRP dealership

503149800

Unavailable

9

LH ADJUSTMENT PLATE - Call your local BRP dealership

503161500

Unavailable

10

Square Nut M10

232802400

Unavailable

9

RH ADJUSTMENT PLATE - Call your local BRP dealership

503161400

Unavailable

10

Square Nut M10

232802400

Unavailable

11

Hex. Screw M10 X 75

207107544

Unavailable

12

Hex. Nut M10 X 1.5

232006414

$1.27

13

FLAT HEAD STEEL RIVET - Call your local BRP dealership

390906200

Unavailable

14

SHIM - Call your local BRP dealership

504108200

Unavailable

15

Spacer

503177800

Unavailable

16

SPACER - Call your local BRP dealership

503178000

Unavailable

17

REAR AXLE - Call your local BRP dealership

503178100

Unavailable

18

Washer

503183300

$5.51

19

FRONT AXLE - Call your local BRP dealership

503177200

Unavailable

20

Hex. Screw M8 X 20

207182044

$0.70

21

Flat Washer 8 mm

234082410

$1.27

22

WASHER-LOCK HELICAL DIN.127B - Call your local BRP dealership

234180411

Unavailable

23

FRONT ARM - Call your local BRP dealership

503177700

Unavailable

24

LOWER CENTER SHAFT - Call your local BRP dealership

503177300

Unavailable

25

Bushing

572110500

Unavailable

26

UPPER CENTER SHAFT - Call your local BRP dealership

503178400

Unavailable

27

Steering Bushing

709402725

$3.07

28

Hex. Screw M10 X 25

207102544

$1.27

29

FLAT WASHER - Call your local BRP dealership

224002251

Unavailable

30

WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.

234100602

Unavailable

31

REAR AXLE - Call your local BRP dealership

503178200

Unavailable

32

SPACER - Call your local BRP dealership

503177400

Unavailable

33

Idle Wheel

570067300

Unavailable

34

WHEEL 139 MM - Call your local BRP dealership

503190815

Unavailable

35

Ball Bearing

293350115

$10.82

36

STOPPER STRAP - Call your local BRP dealership

570068700

Unavailable

37

REAR STOPPER STRAP - Call your local BRP dealership

570069200

Unavailable

38

Hex. Screw M8 X 30

207183044

$1.06

39

Hex. Elastic Stop Nut M8

232581414

$0.54

40

RH Paint Spring

414880400

Unavailable

40

LH PAINT SPRING - Call your local BRP dealership

414880500

Unavailable

41

Retainer Axle

506147600

Unavailable

42

Hex. Screw M8 X 20

207182044

$0.70

43

Flat Washer 8 mm

234082410

$1.27

44

WASHER-LOCK HELICAL DIN.127B - Call your local BRP dealership

234180411

Unavailable
