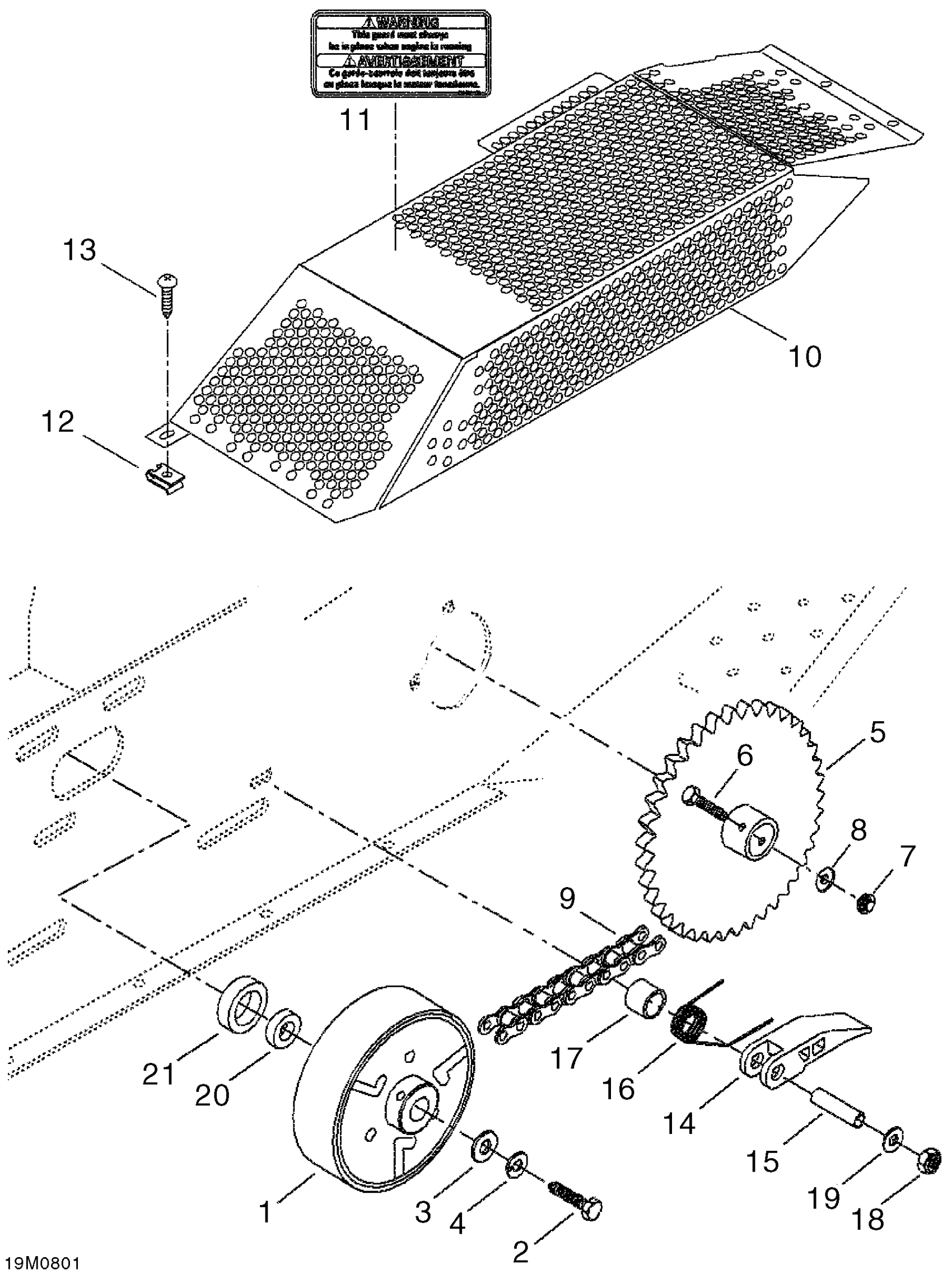

Ski-Doo Mini Z, 2008 05- Pulley System Diagram

#

Description
Price

1

Poulie Motrice *Pulley-Drive This part replaces 417217200.

415129554

$119.99

2

Hex. Screw 5/16-24

309808900

Unavailable

3

Flat Washer 8 mm

234082410

$1.47

4

Lock Washer 8 mm

234181401

$0.92

5

Sprocket (48 Tooth-Large)

504149500

Unavailable

6

HEX. SCREW M8 X 60 - Call your local BRP dealership

417126304

Unavailable

7

Hex. Elastic Stop Nut M8

232581414

$0.56

8

Flat Washer 8 mm

234081410

$0.83

9

CHAIN - Call your local BRP dealership

412107500

$66.99

10

CHAIN GUARD - Call your local BRP dealership

417300224

Unavailable

11

Warning Decal (Pulley Guard)

516000131

Unavailable

12

SPRING NUT U #10-24 - Call your local BRP dealership

417300005

Unavailable

13

Tapping Screw M4.8 X 16

417300006

$0.72

14

CHAIN TENSIONER - Call your local BRP dealership

572041600

Unavailable

15

Spacer

504051600

Unavailable

16

SPRING - Call your local BRP dealership

415123000

Unavailable

17

SPACER - Call your local BRP dealership

504018200

Unavailable

18

Elastic Stop Nut M6

232561414

$0.55

19

Flat Washer

224061121

$0.53

20

EXTENSION - Call your local BRP dealership

504150500

Unavailable

21

Spacer

504150600

Unavailable
