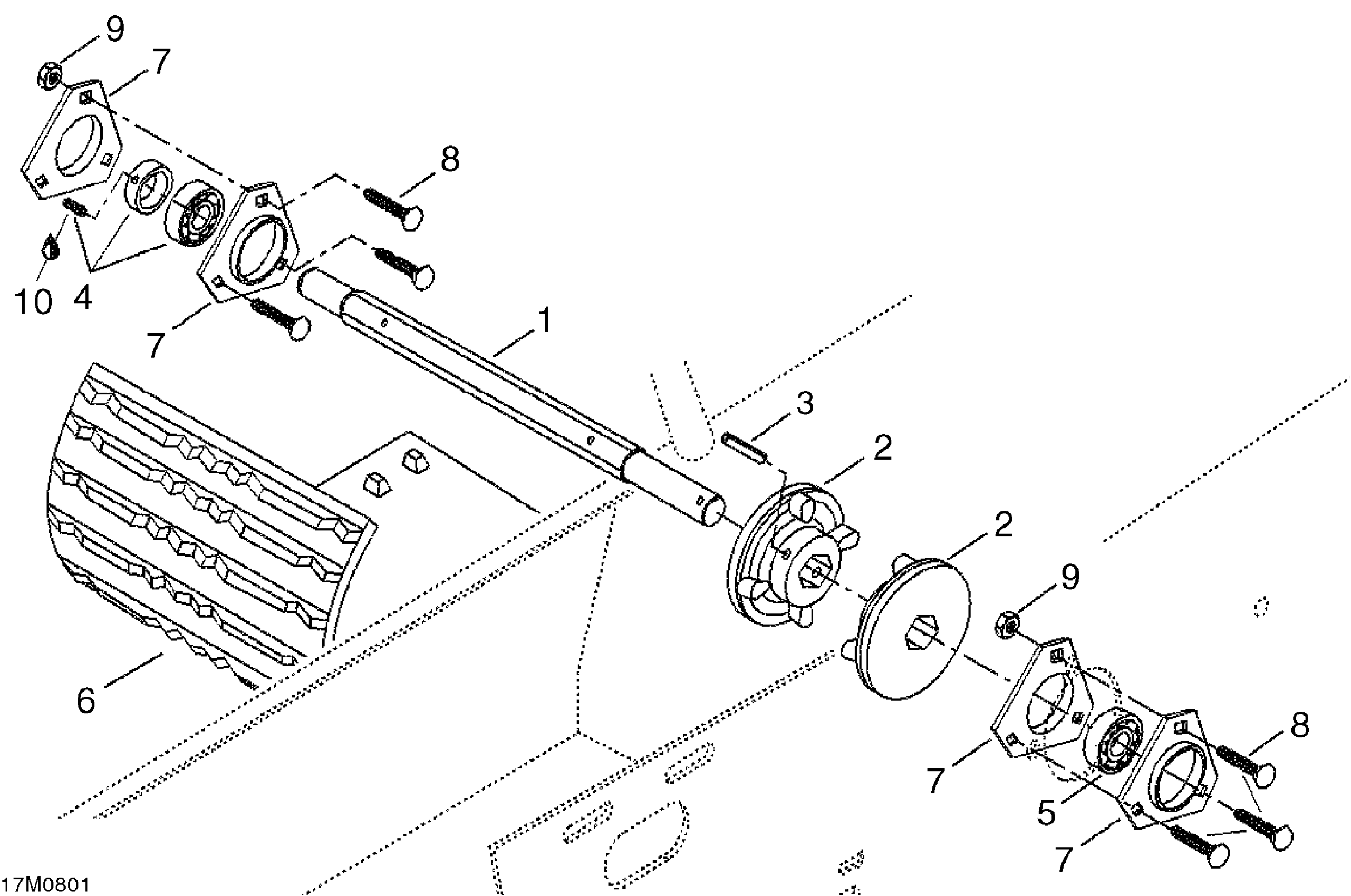

Ski-Doo Mini Z, 2008 Drive System Diagram

#

Description

Price

1

Drive Axle

504152025

Unavailable

2

4 TOOTH SPROCKET - Call your local BRP dealership

504151794

Unavailable

3

ROLLED PIN M6 X 40 - Call your local BRP dealership

211400016

Unavailable

4

BALL BEARING - Call your local BRP dealership This part replaces 504152072.

415129552

Unavailable

5

BALL BEARING - Call your local BRP dealership This part replaces 504152072.

415129552

Unavailable

6

Track

504152172

$589.99

7

FLANGE - Call your local BRP dealership

501025000

Unavailable

8

CARRIAGE BOLT M8 X 16 - Call your local BRP dealership

207781644

Unavailable

9

Hex. Elastic Stop Nut M8

232581414

$0.56

10

Loctite 243, 10 ml

293800060

$21.49
