Description

Price

1

FUEL TANK - Call your local BRP dealership

571009800

Unavailable

2

Fuel Tank Cap

513033025

$24.49

3

Grommet

570045500

$6.69

4

Elbow Male Connector

414580600

$4.23

5

Fuel Filter

414865700

$10.99

6

Polyurethane Hose 10000Mm Long

219704410

$56.99

7

Polyurethane Hose 10000Mm Long

219704410

$56.99

8

Line

513033394

Unavailable

9

GROMMET - Call your local BRP dealership

570027700

Unavailable

10

Check Valve

275500398

$10.99

11

Flange Screw M6 X 10, Scotch Grip

207561044

$7.19

12

Flat Washer

224061121

$0.53

13

Spring Clamp

414420700

$0.72

14

Tridon Gear Clamp

293650170

$1.99

15

Tubing 10 MM 1000MM Long

219704407

$2.79

16

Tubing 10 MM 1000MM Long

219704407

$2.79

17

Tie Wrap 142 mm

293750002

$1.25

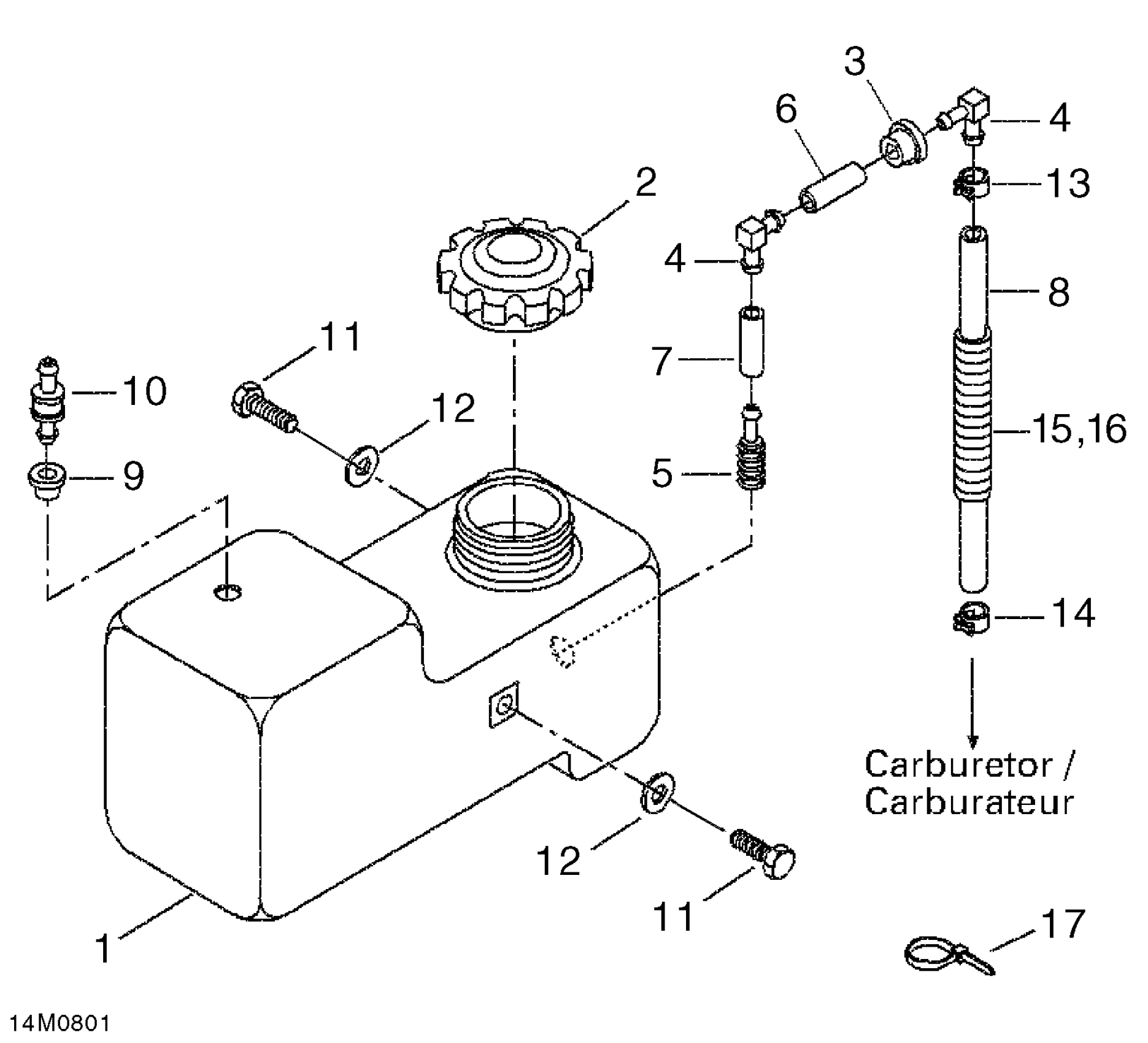

Ski-Doo Mini Z, 2008 02- Fuel System Diagram

FUEL TANK - Call your local BRP dealership

Fuel Tank Cap

Grommet

Elbow Male Connector

Fuel Filter

Polyurethane Hose 10000Mm Long

Polyurethane Hose 10000Mm Long

Line

GROMMET - Call your local BRP dealership

Check Valve

Flange Screw M6 X 10, Scotch Grip

Flat Washer

Spring Clamp

Tridon Gear Clamp

Tubing 10 MM 1000MM Long

Tubing 10 MM 1000MM Long

Tie Wrap 142 mm
