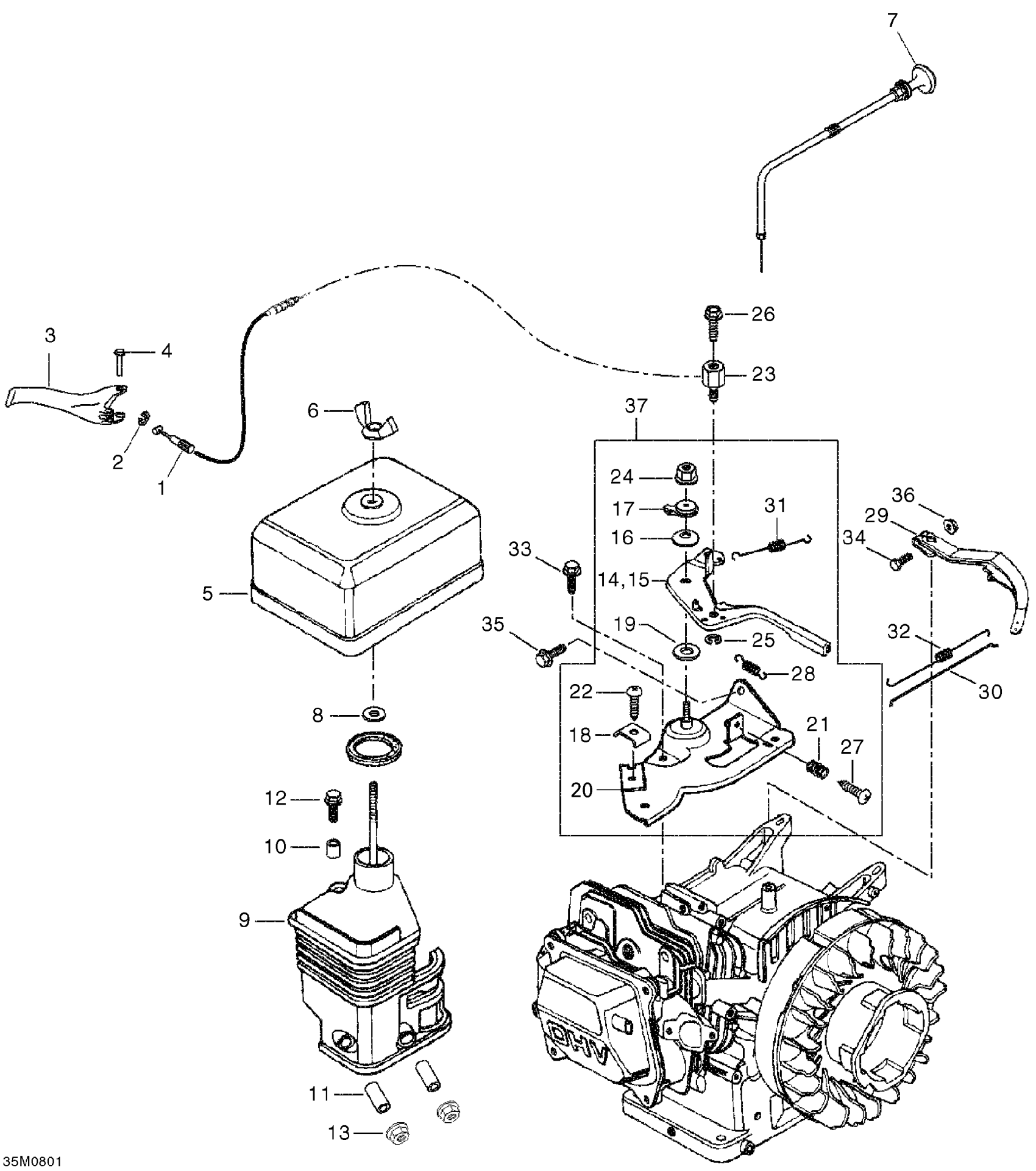

Ski-Doo Mini Z, 2008 02- Air Intake System Diagram
#
1
THROTTLE CABLE - Call your local BRP dealership
512060024
Unavailable
3
Not Available As Spare Part - Friction Washer
Unavailable
4
Not Available As Spare Part - Friction Washer
Unavailable
5
Intake Cover
H17230ZE0820
Unavailable
6
Wing Nut
H90325044000
Unavailable
9
Air Cleaner Elbow Ass'y | Includes 23 - 25.
H17410ZE0030
Unavailable
10
Collar B
H17239ZE1000
Unavailable
11
Collar
H17238ZE0010
Unavailable
12
Flanged Bolt 6 x 20
H957010602000
Unavailable
13
Flanged Nut 6 mm
H9405006080
Unavailable
14
Control Ass'y | Includes 28 - 40.
H16500ZH7810
Unavailable
15
Control Lever
H16571ZH7000
Unavailable
16
Spring Lever
H16574ZE1000
Unavailable
17
Washer
H16575ZH8000
Unavailable
18
Cable Holder
H16576891000
Unavailable
19
Spacer
H16578ZE1000
Unavailable
20
Base
H16580ZH7810
Unavailable
21
Spring
H16584883300
Unavailable
22
Pan Screw 5 x 16
H93500050160B
Unavailable
23
Cable Holder
H16594883010
Unavailable
24
Nut
H90114SA0000
Unavailable
25
Circlip
H90605230000
Unavailable
26
Screw
H93500040060H
Unavailable
27
Screw
H93500050250H
Unavailable
28
RELEASE SPRING - Call your local BRP dealership
512059048
Unavailable
29
Governor Arm
H16551ZE1010
Unavailable
30
Governor Rod
H16555ZE0000
Unavailable
31
Governor Spring
H16561ZE0020
Unavailable
32
Throttle Return Spring
H16562ZE0020
Unavailable
33
Screw
H90013883000
Unavailable
34
Bolt
H90015ZE5010
Unavailable
35
Screw
H90022888010
Unavailable
36
Flanged Nut 6 mm
H9405006080
Unavailable
37
Control Ass'y
H16500ZK7U50
Unavailable
