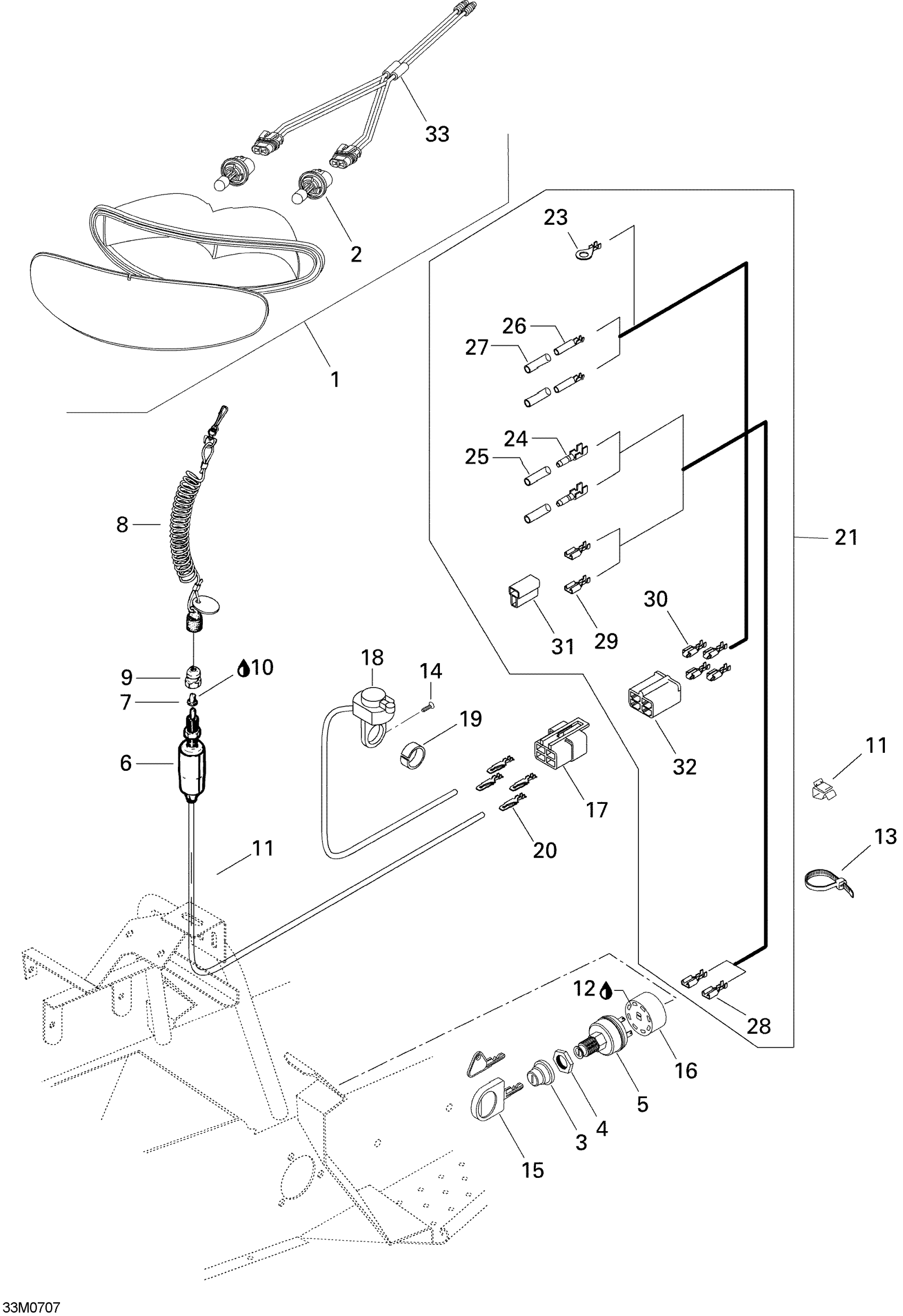

Ski-Doo Mini Z, 2007 10- Electrical System Diagram

Headlamp | Includes 1 to 3

515175746

Unavailable

BULB - Call your local BRP dealership

415128619

Unavailable

Switch Boot

570013700

$11.49

FACE NUT - Call your local BRP dealership

410112100

Unavailable

IGNITION SWITCH - Call your local BRP dealership

515176548

Unavailable

Brake Switch

515175653

$19.49

Plunger Cap

570151100

$9.85

CAP ASS'Y - Call your local BRP dealership

515176464

Unavailable

Switch Nut

515145900

$12.12

Dielectric Grease, 150 g This part replaces 413701700.

293550004

Unavailable

Clip

414227300

$1.67

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

Tie Wrap 94 mm | 4X4

293750001

$1.03

Tie Wrap 142 mm

293750002

$1.25

PHILLIPS TAPPING SCREW M4.8 X 16 - Call your local BRP dealership

250000031

Unavailable

Blank Key

415129350

$26.49

IGNITION SWITCH - Call your local BRP dealership

515176548

Unavailable

MALE HOUSING - Call your local BRP dealership

409209300

Unavailable

Kill Switch

515177454

$63.49

Not Available As Spare Part - Friction Washer

Unavailable

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

Harness-assy. | Includes 21 - 32.

515170100

Unavailable

FEMALE TERMINAL HOUSING, 9 CIRCUITS - Call your local BRP dealership

572150700

Unavailable

Open Barrel

278000992

$2.21

Male Terminal

278000230

$4.39

Push Nut

270001008

$0.95

Female Terminal | DS 650 X

278001009

$3.19

Fitting

270001007

$11.12

Female Terminal

561503100

$2.41

Female Terminal

561503100

$2.41

Female Terminal PACKARD

561503200

Unavailable

FEMALE TERMINAL HOUSING, 24 CIRCUITS - Call your local BRP dealership

409204600

Unavailable

FEMALE HOUSING - Call your local BRP dealership

409204900

Unavailable

HEAD LAMP HARNESS - Call your local BRP dealership

415128618

Unavailable
