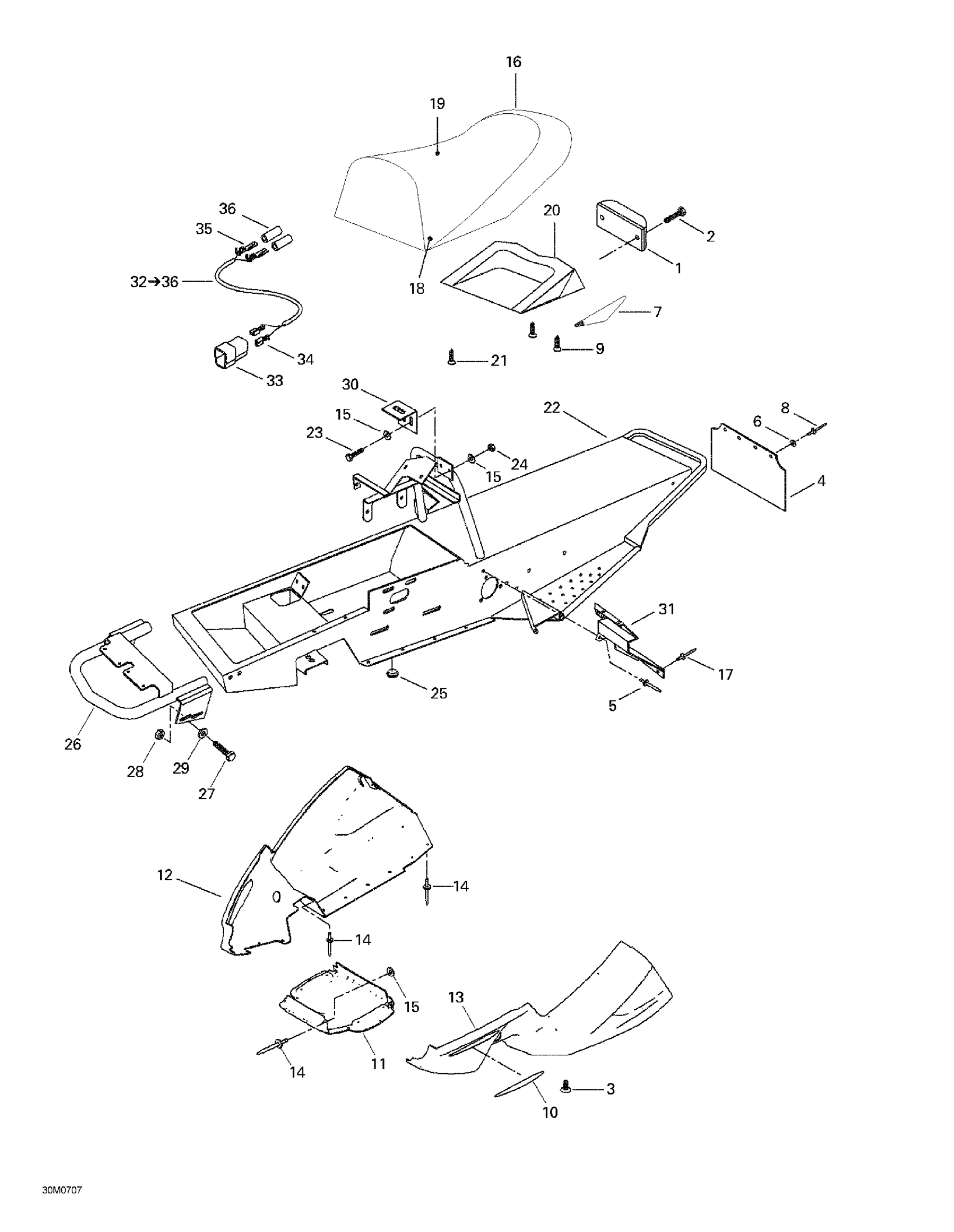

Ski-Doo Mini Z, 2007 09- Frame And Body Diagram
#
Description
Price
1
TAIL LAMP ASS'Y - Call your local BRP dealership | Includes 3a to 3b
415088700
Unavailable
2
Screw
369903000
Unavailable
4
Snow Guard
572099800
Unavailable
7
REAR REFLECTOR, RED - Call your local BRP dealership
520000237
Unavailable
9
Not Available As Spare Part - Friction Washer
Unavailable
10
FRONT REFLECTOR - Call your local BRP dealership
516001336
Unavailable
11
Nose (Yellow)
502006660
Unavailable
12
RH Bottom Pan (Yellow)
502006661
Unavailable
13
LH Bottom Pan (Yellow)
502006662
Unavailable
16
Not Available As Spare Part - Friction Washer
Unavailable
18
FOAM SEAT - Call your local BRP dealership
510004035
Unavailable
19
Seat Cover
510004678
Unavailable
20
Seat Moulding
510004169
Unavailable
21
Screw
369903000
Unavailable
22
Frame Ass'y
518323446
Unavailable
23
Hex. Screw M5 x 14
207151414
Unavailable
25
Plug
414404800
Unavailable
26
Bumper
518323466
Unavailable
30
Adjustable Plate
518321300
Unavailable
31
RH Footrest
518321950
Unavailable
31
LH Footrest
518321952
Unavailable
32
Not Available As Spare Part - Friction Washer
Unavailable
33
MALE HOUSING - Call your local BRP dealership
409204500
Unavailable
35
MALE TERMINAL - Call your local BRP dealership
409210000
Unavailable
