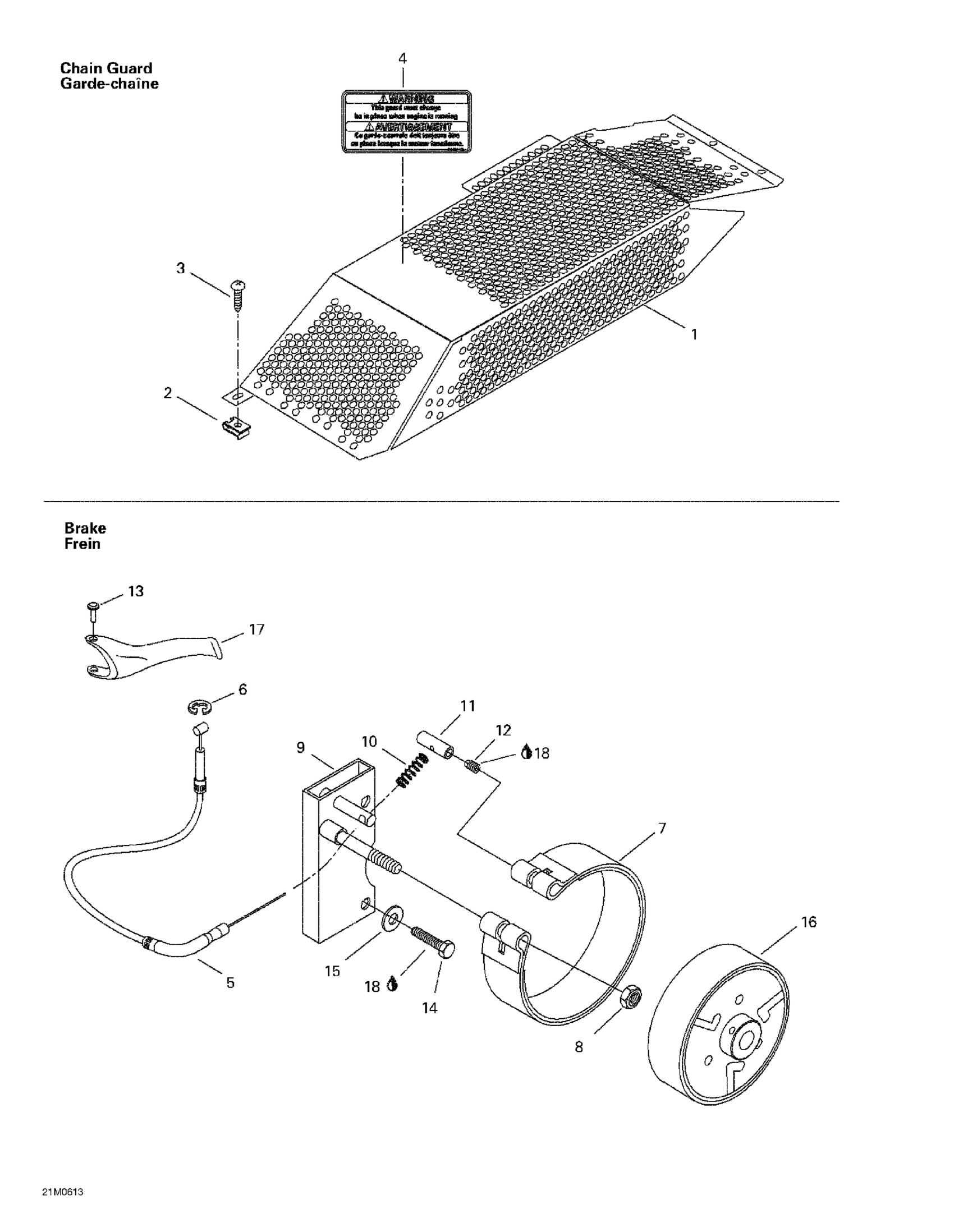

Ski-Doo Mini Z, 2006 06- Brake And Chain Guard Diagram

#

Description
Price

1

CHAIN GUARD - Call your local BRP dealership

417300224

Unavailable

2

SPRING NUT U #10-24 - Call your local BRP dealership

417300005

Unavailable

3

Tapping Screw M4.8 X 16

417300006

$0.72

4

Security Label (Pulley Guard)

516001131

Unavailable

5

BRAKE CABLE - Call your local BRP dealership

507032289

Unavailable

6

Circlip

414274500

$0.90

7

SHOE ASS'Y - Call your local BRP dealership

507031600

Unavailable

8

Hex. Elastic Stop Nut M8

232581414

$0.56

9

BRAKE SUPPORT - Call your local BRP dealership

507032297

Unavailable

10

RELEASE SPRING - Call your local BRP dealership

507032229

Unavailable

11

Cable Lock

415086300

Unavailable

12

Socket Set Screw

303115900

Unavailable

13

Tubular Rivet

390502000

Unavailable

14

Not Available As Spare Part - Friction Washer

Unavailable

15

FLAT WASHER - Call your local BRP dealership

224081201

Unavailable

16

Poulie Motrice *Pulley-Drive This part replaces 417217200.

415129554

$119.99

17

BRAKE HANDLE - Call your local BRP dealership

506151225

Unavailable

18

Loctite 243, 10 ml

293800060

$21.49
