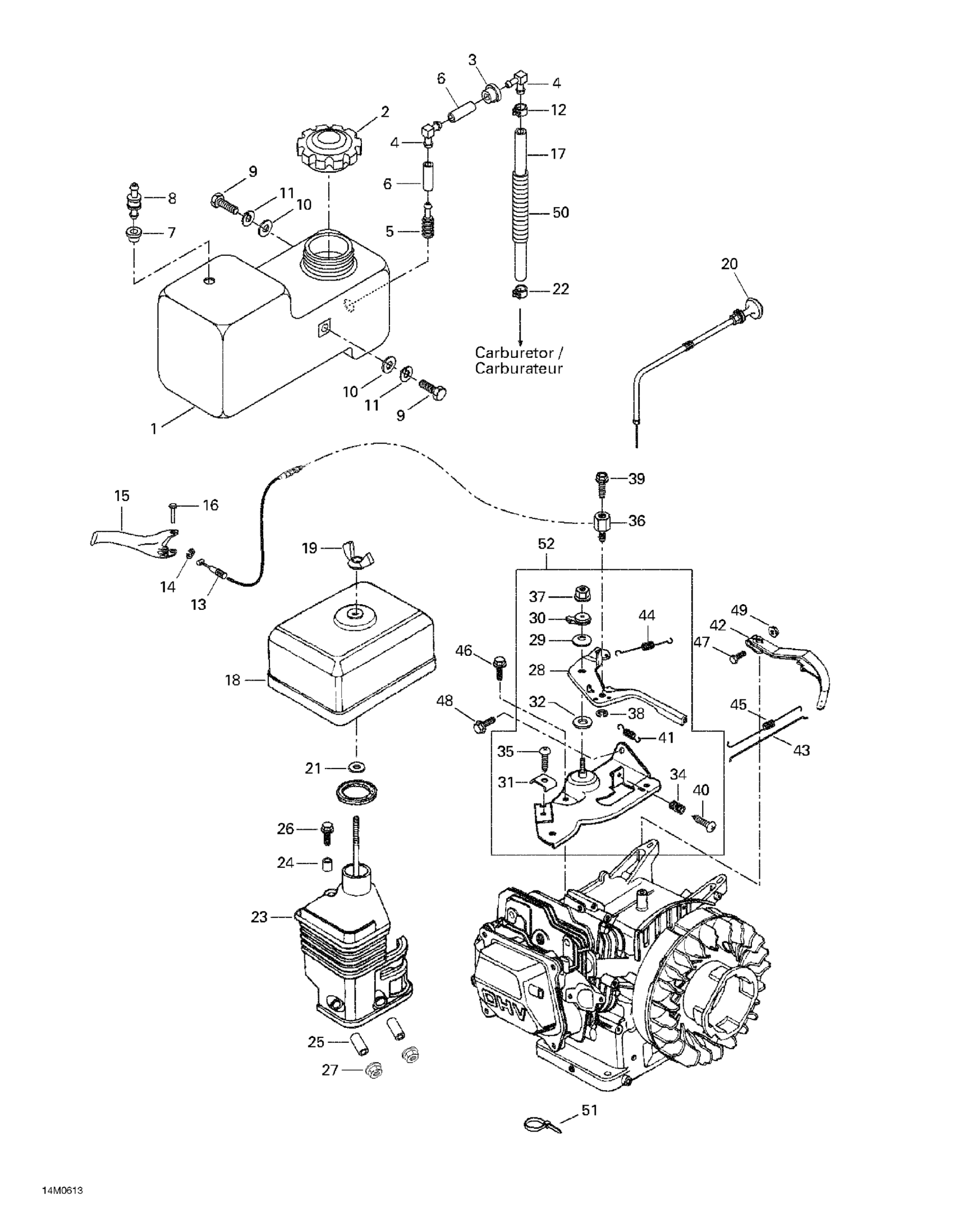

Ski-Doo Mini Z, 2006 02- Fuel System Diagram
#
1
FUEL TANK - Call your local BRP dealership
571009800
Unavailable
7
GROMMET - Call your local BRP dealership
570027700
Unavailable
9
HEX. SCREW M6 X 10 - Call your local BRP dealership
207161044
Unavailable
13
THROTTLE CABLE - Call your local BRP dealership
512060024
Unavailable
15
THROTTLE HANDLE - Call your local BRP dealership
506151227
Unavailable
16
Tubular Rivet
390502000
Unavailable
17
LINE - Call your local BRP dealership
513032924
Unavailable
18
Intake Cover
H17230ZE0820
Unavailable
19
Wing Nut
H90325044000
Unavailable
22
Spring Clamp
415127453
Unavailable
23
Air Cleaner Elbow Ass'y | Includes 23 - 25.
H17410ZE0030
Unavailable
24
Collar B
H17239ZE1000
Unavailable
25
Collar
H17238ZE0010
Unavailable
26
Flanged Bolt 6 x 20
H957010602000
Unavailable
27
Flanged Nut 6 mm
H9405006080
Unavailable
28
Control Ass'y | Includes 28 - 40.
H16500ZH7810
Unavailable
28
Control Lever
H16571ZH7000
Unavailable
29
Spring Lever
H16574ZE1000
Unavailable
30
Washer
H16575ZH8000
Unavailable
31
Cable Holder
H16576891000
Unavailable
32
Spacer
H16578ZE1000
Unavailable
33
Base
H16580ZH7810
Unavailable
34
Spring
H16584883300
Unavailable
35
Pan Screw 5 x 16
H93500050160B
Unavailable
36
Cable Holder
H16594883010
Unavailable
37
Nut
H90114SA0000
Unavailable
38
Circlip
H90605230000
Unavailable
39
Screw
H93500040060H
Unavailable
40
Screw
H93500050250H
Unavailable
41
RELEASE SPRING - Call your local BRP dealership
512059048
Unavailable
42
Governor Arm
H16551ZE1010
Unavailable
43
Governor Rod
H16555ZE0000
Unavailable
44
Governor Spring
H16561ZE0020
Unavailable
45
Throttle Return Spring
H16562ZE0020
Unavailable
46
Screw
H90013883000
Unavailable
47
Bolt
H90015ZE5010
Unavailable
48
Screw
H90022888010
Unavailable
49
Flanged Nut 6 mm
H9405006080
Unavailable
52
Control Ass'y
H16500ZK7U50
Unavailable
