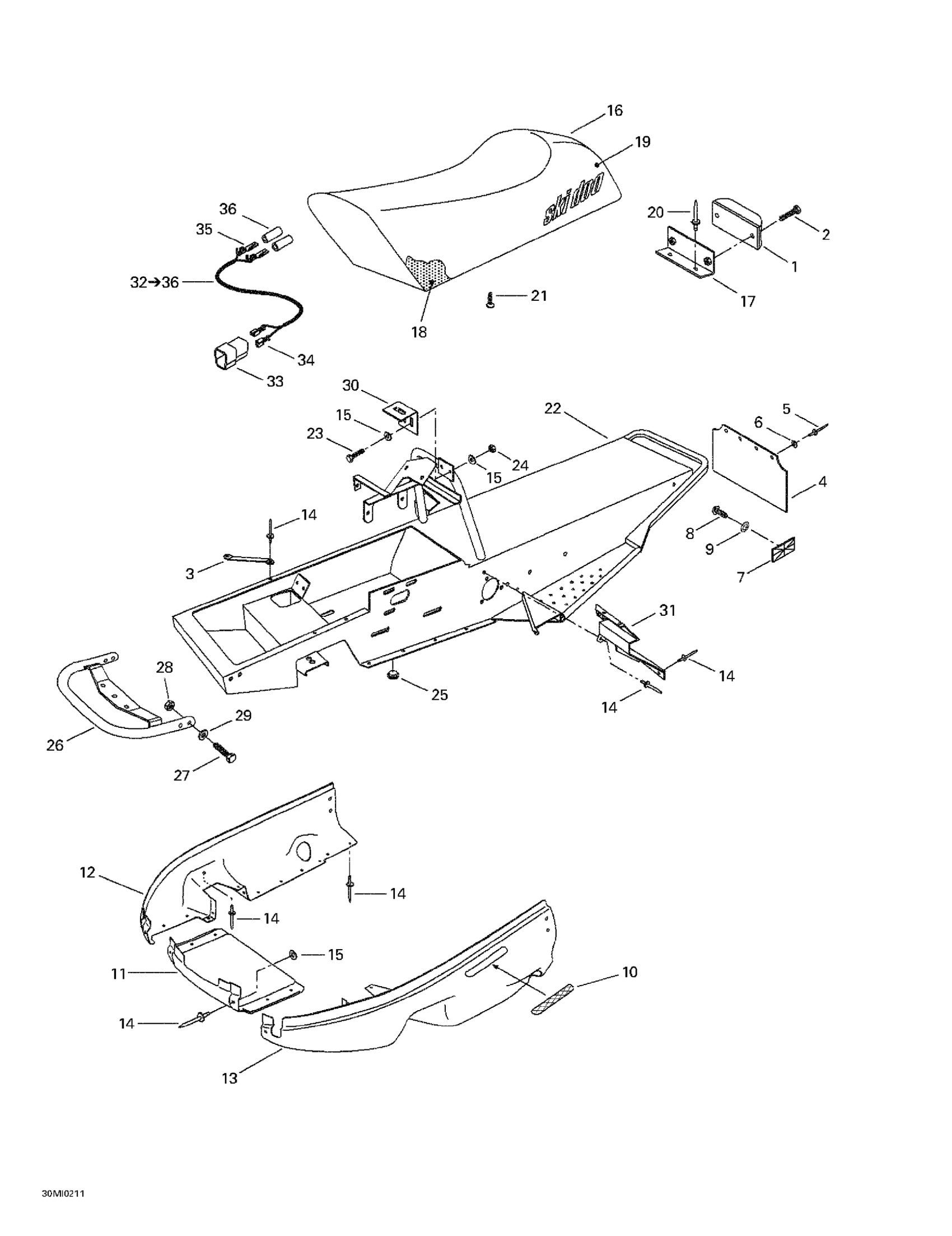

Ski-Doo Mini Z, 2002 09- Frame And Body Diagram
#
Description
Price
1
TAIL LAMP ASS'Y - Call your local BRP dealership | Includes 3a to 3b
415088700
Unavailable
3
Bottom Pan Support
502006505
Unavailable
4
Snow Guard
572099800
Unavailable
7
REFLECTOR, RED - Call your local BRP dealership
414510100
Unavailable
8
PHILLIPS SCREW M5 X 10 - Call your local BRP dealership
208651041
Unavailable
9
WASHER-LOCK SERRATED DIN.6798A - Call your local BRP dealership | Outlander T3
234451418
Unavailable
10
Decal - RH Reflector
415064400
Unavailable
Decal - LH Reflector
415064401
Unavailable
11
Nose (Yellow)
571009500
Unavailable
12
RH Bottom Pan (Yellow)
502006538
Unavailable
13
LH Bottom Pan (Yellow)
502006539
Unavailable
16
Not Available As Spare Part - Friction Washer
Unavailable
17
Tail Lamp Housing
415088400
Unavailable
18
Foam Seat
415088302
Unavailable
19
Seat Cover
510004017
Unavailable
21
Screw
369903000
Unavailable
22
Frame Ass'y
518321943
Unavailable
23
Hex. Screw M5 x 14
207151414
Unavailable
25
Plug
414404800
Unavailable
26
Bumper
518320400
Unavailable
30
Adjustable Plate
518321300
Unavailable
31
RH Footrest
518321950
Unavailable
LH Footrest
518321952
Unavailable
32
Not Available As Spare Part - Friction Washer
Unavailable
33
MALE HOUSING - Call your local BRP dealership
409204500
Unavailable
35
MALE TERMINAL - Call your local BRP dealership
409210000
Unavailable
