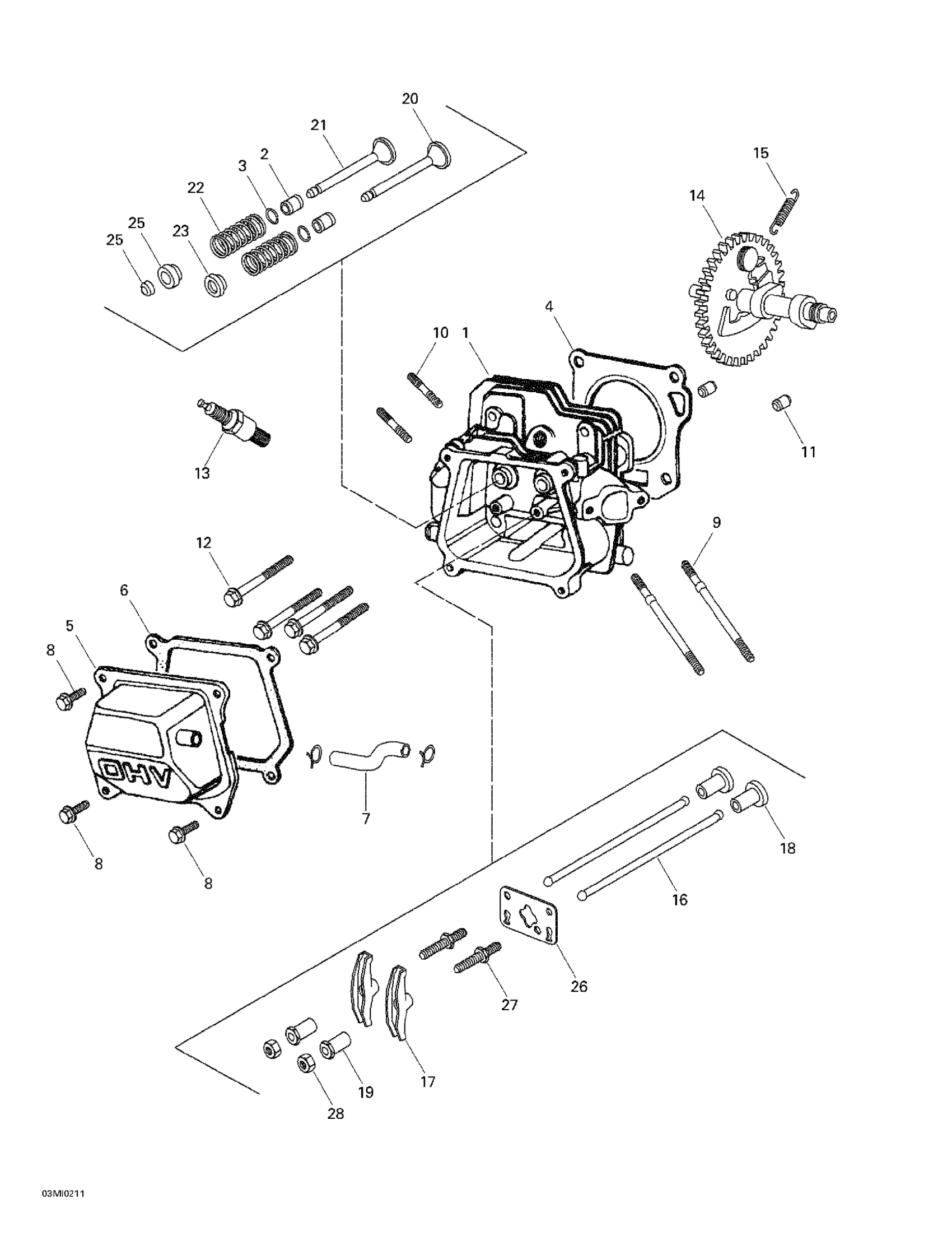

Ski-Doo Mini Z, 2002 01- Cylinder Head, Camshaft Diagram
#
1
Cylinder Head Ass'y | Includes 1 - 3.
H12210ZH7000
Unavailable
2
Valve Guide (Intake)
H12204ZE1306
Unavailable
3
Circlip
H12216ZE5300
Unavailable
4
Gasket
H12251ZH7800
Unavailable
5
Head Cover
H12310ZE1000
Unavailable
6
Packing
H12391ZE1000
Unavailable
7
Breather Tube
H15721ZH8000
Unavailable
8
Screw
H90013883000
Unavailable
9
Stud
H90043ZE1020
Unavailable
10
Stud 8 x 32
H90047ZE1000
Unavailable
11
Dowel Pin 10 x 16
H9430110160
Unavailable
12
Screw 8 x 55
H957230805500
Unavailable
13
Spark Plug NGK BPR6ES This part replaces 415127694.
415129515
Unavailable
Spark Plug (NGK BPR5ES)
415127693
Unavailable
Spark Plug (Denso W16EPR-U)
H9807955855
Unavailable
Spark Plug (Denso W20EPR-U)
H9807956855
Unavailable
14
Camshaft Ass'y | Includes 14 - 15.
H14100ZE0812
Unavailable
15
Spring
H14568ZE1000
Unavailable
16
Push Rod
H14410ZE0010
Unavailable
17
Valve Rocker Arm
H14431ZE1000
Unavailable
18
Valve Lifter
H14441ZE1010
Unavailable
19
Rocker Arm Pivot
H14451ZE1013
Unavailable
20
Intake Valve
H14711ZF0000
Unavailable
21
Exhaust Valve
H14721ZF0000
Unavailable
22
Valve Spring
H14751ZF1000
Unavailable
23
Retainer (Intake)
H14771ZE1000
Unavailable
24
Retainer (Exhaust)
H14773ZE1000
Unavailable
25
Valve Rotator
H14781ZE1000
Unavailable
26
Plate
H14791ZE0010
Unavailable
27
Pivot Bolt 8 mm
H90012ZE0010
Unavailable
28
Pivot Adjusting Nut
H90206ZE1000
Unavailable
