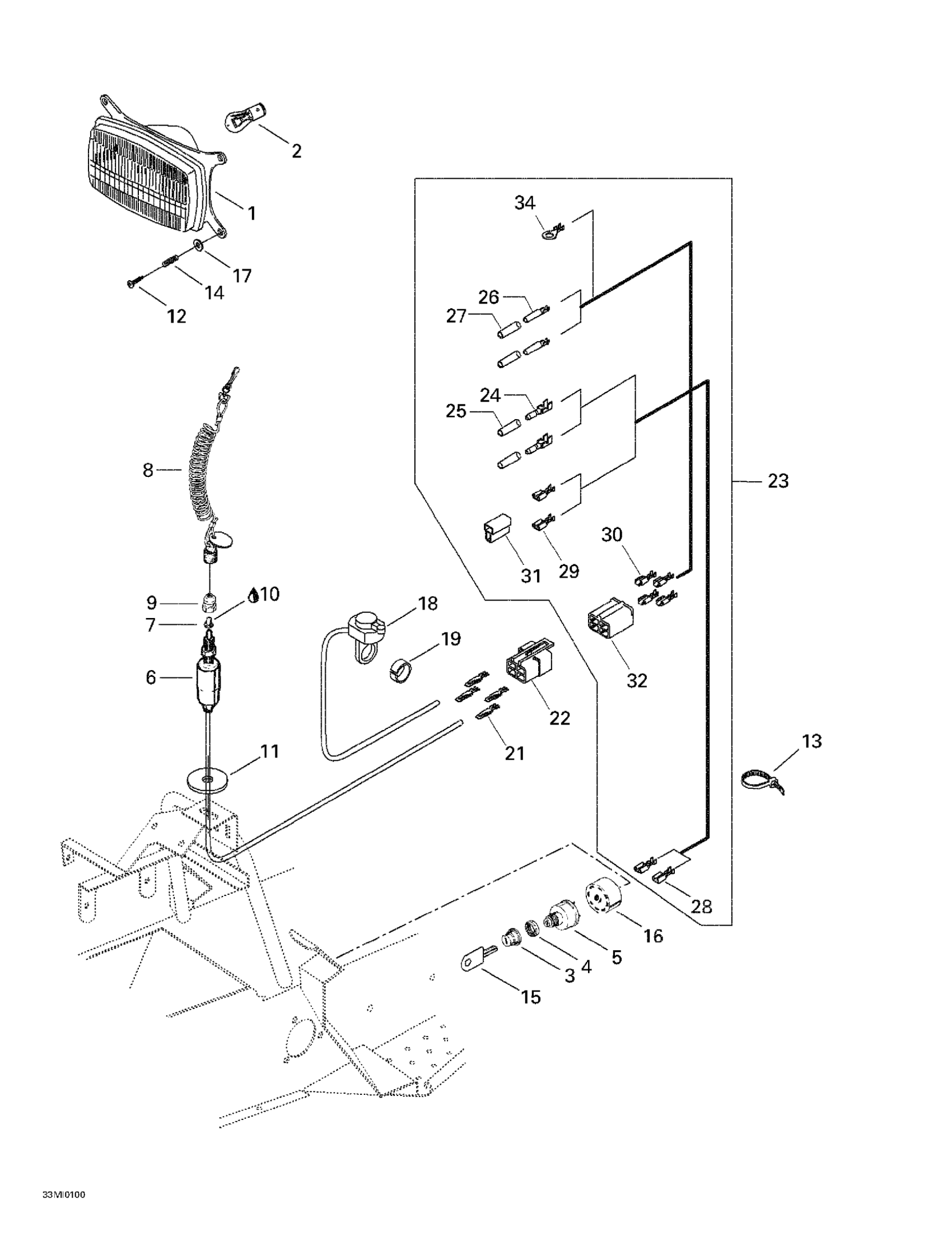

Ski-Doo Mini Z, 2001 10- Electrical System Diagram
#
Description
Price
1
Head Lamp Ass'y | Includes 1 - 2.
410609200
Unavailable
2
Bulb
410609400
Unavailable
4
FACE NUT - Call your local BRP dealership
410112100
Unavailable
5
IGNITION SWITCH - Call your local BRP dealership | MX Z 380 F.
410111200
Unavailable
8
CAP ASS'Y - Call your local BRP dealership
515176464
Unavailable
10
Dielectric Grease, 150 g This part replaces 413701700.
293550004
Unavailable
11
Spacer
517302008
Unavailable
12
PLASTITE PHILLIPS SCREW M4 X 40 - Call your local BRP dealership
243244040
Unavailable
16
FEMALE TERMINAL HOUSING, 9 CIRCUITS - Call your local BRP dealership
572150700
Unavailable
17
FLAT WASHER - Call your local BRP dealership | 4X4
250200081
Unavailable
19
Spacer
506151268
Unavailable
20
Harness-assy. | Includes 21 - 32.
515170100
Unavailable
21
MALE TERMINAL - Call your local BRP dealership
409210000
Unavailable
22
MALE HOUSING - Call your local BRP dealership
409209300
Unavailable
23
Harness-assy. | Includes 21 - 32.
515170100
Unavailable
30
Female Terminal PACKARD
561503200
Unavailable
31
FEMALE TERMINAL HOUSING, 24 CIRCUITS - Call your local BRP dealership
409204600
Unavailable
32
FEMALE HOUSING - Call your local BRP dealership
409204900
Unavailable
33
FEMALE TERMINAL HOUSING, 9 CIRCUITS - Call your local BRP dealership
572150700
Unavailable
