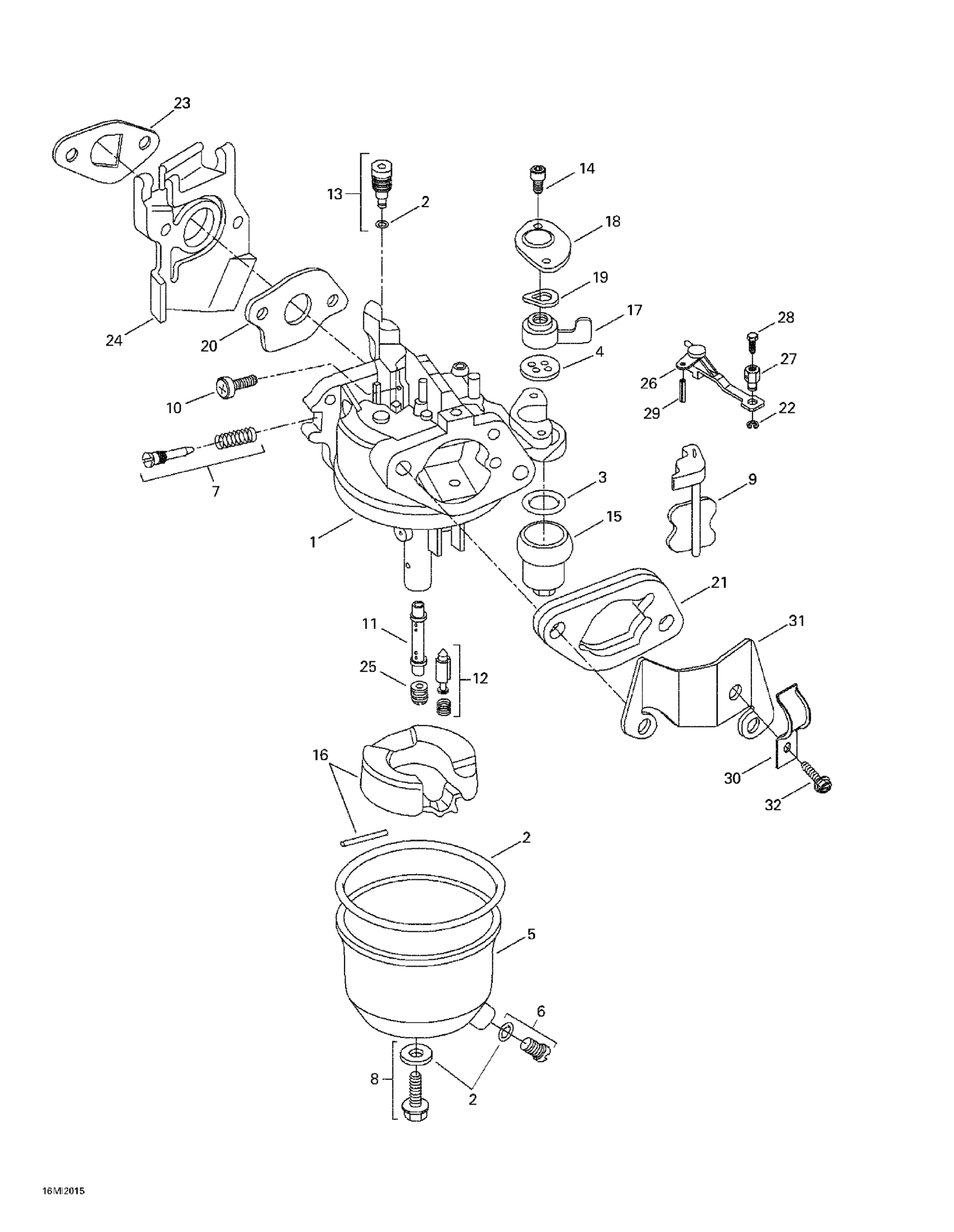

Ski-Doo Mini Z, 2000 02- Carburetor Diagram
#
1
Carburetor Ass'y
H16100ZH7U51
Unavailable
2
Carburator Gasket Set | Includes 2 - 4.
H16010ZE1812
Unavailable
3
Packard
H16955283000
Unavailable
4
Packing
H16957ZE1812
Unavailable
5
Chamber | Includes 5 - 6.
H16015ZE1811
Unavailable
6
Drain Bolt
H16024ZE1811
Unavailable
7
Drain Screw
H16016ZE0005
Unavailable
8
Screw
H16028ZE0005
Unavailable
9
Choke
H16044ZE0005
Unavailable
10
Screw
H16124ZE0005
Unavailable
11
Nozzle
H16166ZH7W50
Unavailable
12
Valve Set
H16011ZE0005
Unavailable
13
Pilot Jet 35
H99204ZE00350
Unavailable
14
Screw
H93500030080G
Unavailable
15
Cup
H16967ZE0811
Unavailable
16
Float
H16013ZE0005
Unavailable
17
Lever
H16953ZE1406
Unavailable
18
Lever Plate
H16954ZE1812
Unavailable
19
Spring
H16956ZE1811
Unavailable
20
Packing
H16221ZH8801
Unavailable
21
Spacer
H16220ZE1020
Unavailable
22
Circlip
H90605230000
Unavailable
23
Packing
H16212ZH7800
Unavailable
24
Insulator
H16211ZE0000
Unavailable
25
Main Jet 62
H99101ZH80620
Unavailable
Main Jet 65
H99101ZH70650
Unavailable
Main Jet 68
H99101ZH70680
Unavailable
26
Lever
H16610ZE1810
Unavailable
27
Holder
H16617890010
Unavailable
28
HEX. SCREW M4 X 10 - Call your local BRP dealership | XT
207141044
Unavailable
29
Spring Pin
H9430520122
Unavailable
30
Holder
H16582883300
Unavailable
31
Stay
H16598ZE1000
Unavailable
32
Screw
H93500050080A
Unavailable
