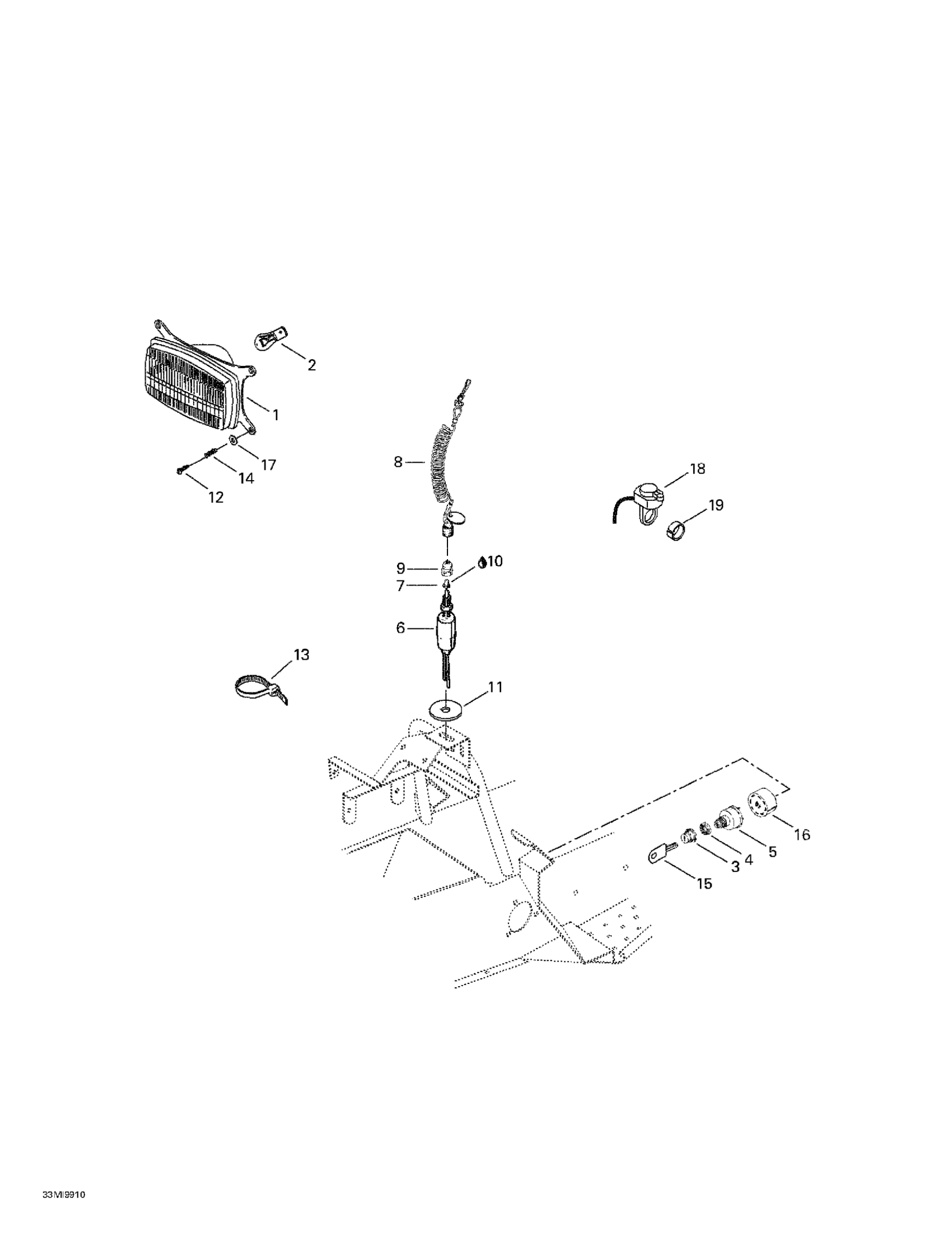

Ski-Doo Mini Z, 1999 10- Electrical System Diagram

Head Lamp Ass'y | Includes 1 - 2.

410609200

Unavailable

Bulb

410609400

Unavailable

Switch Boot

570013700

$11.49

FACE NUT - Call your local BRP dealership

410112100

Unavailable

IGNITION SWITCH - Call your local BRP dealership | MX Z 380 F.

410111200

Unavailable

Brake Switch

515175653

$19.49

Plunger Cap

570151100

$9.85

CAP ASS'Y - Call your local BRP dealership

515176464

Unavailable

Switch Nut

515145900

$12.12

Dielectric Grease, 150 g This part replaces 413701700.

293550004

Unavailable

Spacer

517302008

Unavailable

Screw M4 x 40

732603002

Unavailable

Tie Wrap 94 mm | 4X4

293750001

$1.03

Tie Wrap 142 mm

293750002

$1.25

Spring

517168600

$7.39

Blank Key

415129350

$26.49

FEMALE TERMINAL HOUSING, 9 CIRCUITS - Call your local BRP dealership

572150700

Unavailable

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

Kill Switch

515177454

$63.49

Spacer

506151200

Unavailable
