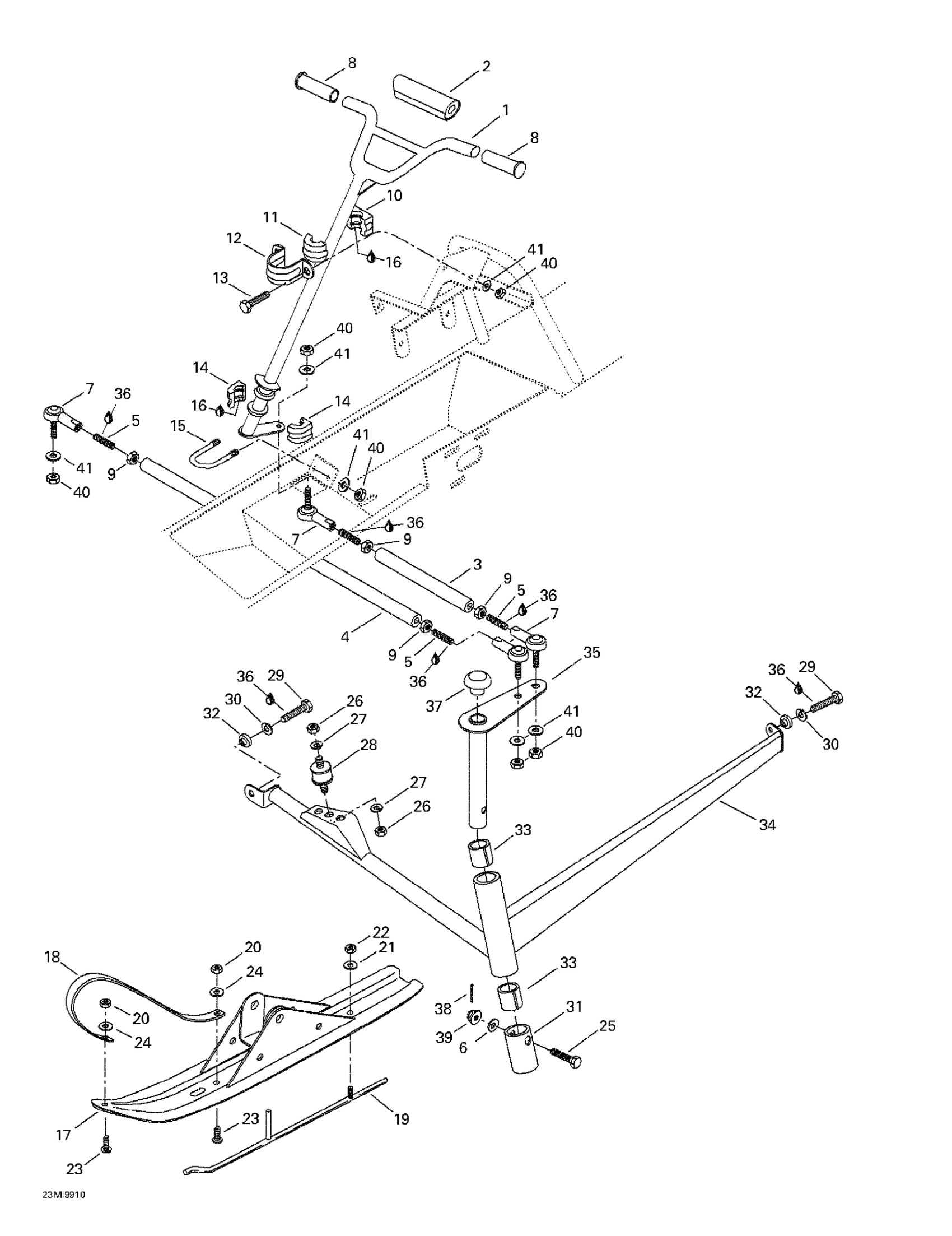

Ski-Doo Mini Z, 1999 07- Steering System And Ski Diagram

#

Description
Price

1

Handle Bar

506151221

Unavailable

2

Steering Padding

572103400

Unavailable

3

Tie Rod (Short)

506151186

Unavailable

4

Tie Rod (Long)

506151187

Unavailable

5

Socket Set Screw M8 x 50

206285044

$4.65

6

Flat Washer 10 mm

234001410

$1.26

7

BALL JOINT - Call your local BRP dealership

415108500

Unavailable

8

HANDLE GRIP - Call your local BRP dealership

572064100

Unavailable

9

Hex. Nut M8

232081414

$0.72

10

Bushing

572064400

Unavailable

11

BUSHING - Call your local BRP dealership

572064500

Unavailable

12

Retainer Support

517126200

Unavailable

13

Hex. Screw M8 X 20

207182044

$0.74

14

HALF-BUSHING - Call your local BRP dealership

572067100

Unavailable

15

U-clamp | X

506060600

$17.80

16

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

17

Ski Ass'y | Includes 1 to 8

505068300

Unavailable

18

HANDLE - Call your local BRP dealership

572099500

Unavailable

19

Runner

505068400

Unavailable

20

Elastic Stop Nut M6

232561414

$0.55

21

Flat Washer 8 mm

234081410

$0.83

22

Hex. Elastic Stop Nut M8

232581414

$0.56

23

Phillips Screw M6 X 25

208562560

$2.32

24

Flat Washer

224061201

$1.37

25

BOLT M10 X 60 - Call your local BRP dealership

505070178

Unavailable

26

Hex. Nut M10 X 1.5

232006414

$1.37

27

WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.

234100602

Unavailable

28

Rubber Mount

570128800

Unavailable

29

Hex. Screw M8 X 25

207182544

$0.90

30

Lock Washer 8 mm

234181401

$0.92

31

Spacer

503182700

Unavailable

32

Double Spacer

503177000

Unavailable

33

CUSHION - Call your local BRP dealership

415087300

Unavailable

34

RH Swing Arm

506142800

Unavailable

LH Swing Arm

506142900

Unavailable

35

RH Ski Leg

506143400

Unavailable

LH Ski Leg

506143500

Unavailable

36

Loctite 243, 10 ml

293800060

$21.49

37

CAP - Call your local BRP dealership

572079100

Unavailable

38

Cotter Pin

371800200

$0.53

39

Castellated Nut M10

732610083

Unavailable

40

Hex. Elastic Stop Nut M8

232581414

$0.56

41

Flat Washer 8 mm

234081410

$0.83
