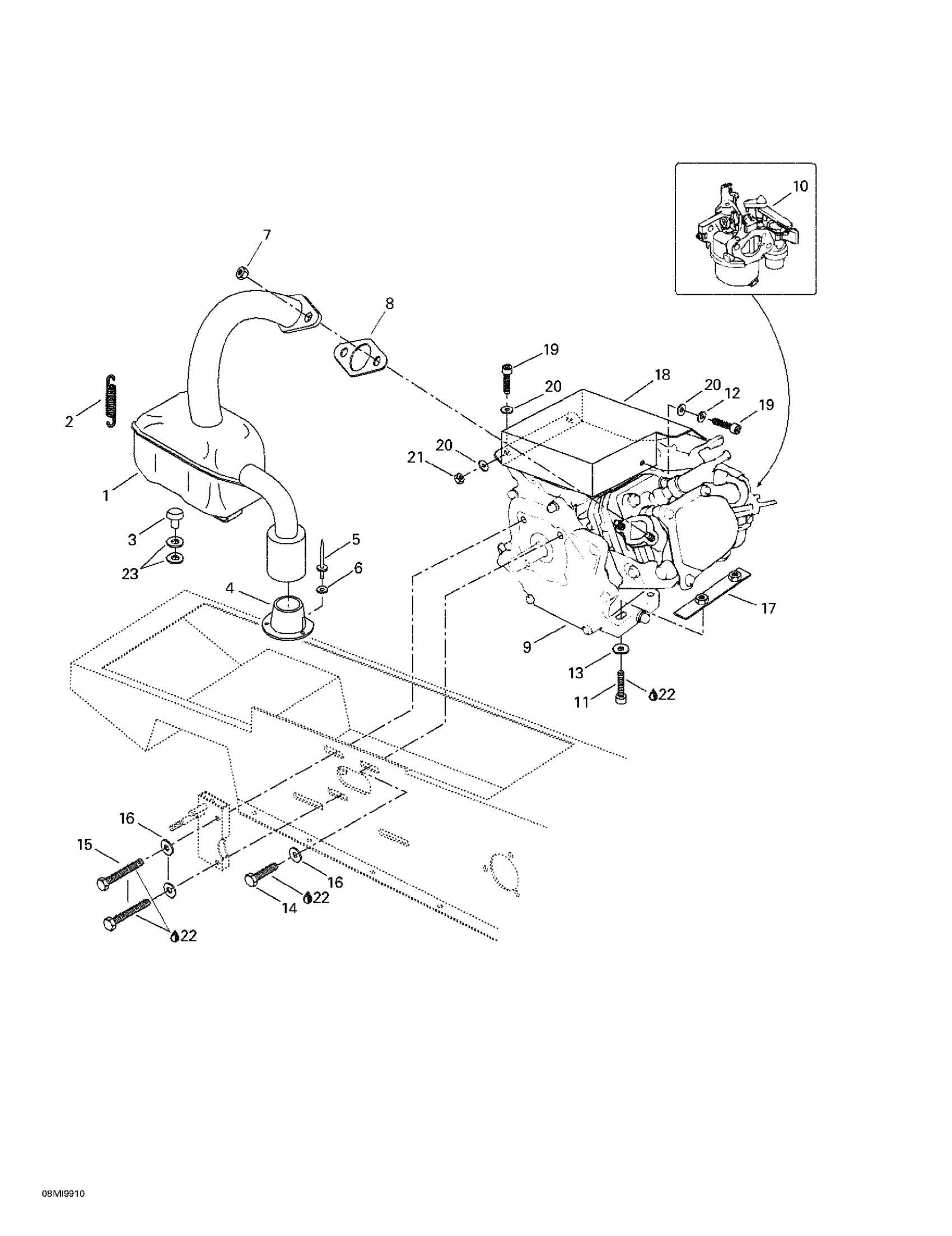

Ski-Doo Mini Z, 1999 01- Engine Support And Muffler Diagram

#

Description
Price

1

MUFFLER - Call your local BRP dealership

514098700

Unavailable

2

SPRING - Call your local BRP dealership

415104800

Unavailable

3

Rubber Bumper

570044700

$13.10

4

Exhaust Grommet

570028700

Unavailable

5

Pop Rivet 3/16”

390407200

$0.70

6

Flat Washer M5

234051410

$0.53

7

Hexagonal Nut M8

H94001080000S

Unavailable

8

Gasket

H18381ZH8800

Unavailable

9

<<118>> ENGINE(YELLOW) - Call your local BRP dealership

400101101

Unavailable

10

Carburetor Ass'y

H16100ZH7U51

Unavailable

11

Hex. Screw M8 X 45

207084544

$1.48

12

Lock Washer M6, Black

234161471

$0.53

13

FLAT WASHER - Call your local BRP dealership

224081201

Unavailable

14

Not Available As Spare Part - Friction Washer

Unavailable

15

Not Available As Spare Part - Friction Washer

Unavailable

16

FLAT WASHER - Call your local BRP dealership

224081201

Unavailable

17

STOPPER PLATE - Call your local BRP dealership

512057400

Unavailable

18

Engine Protector

512058700

Unavailable

19

Hex. Screw M6 X 30

207063044

$1.26

20

Flat Washer 6 mm

234061410

$1.36

21

Elastic Stop Nut M6

232561414

$0.55

22

Loctite 243, 10 ml

293800060

$21.49

23

Washer

503172700

Unavailable
