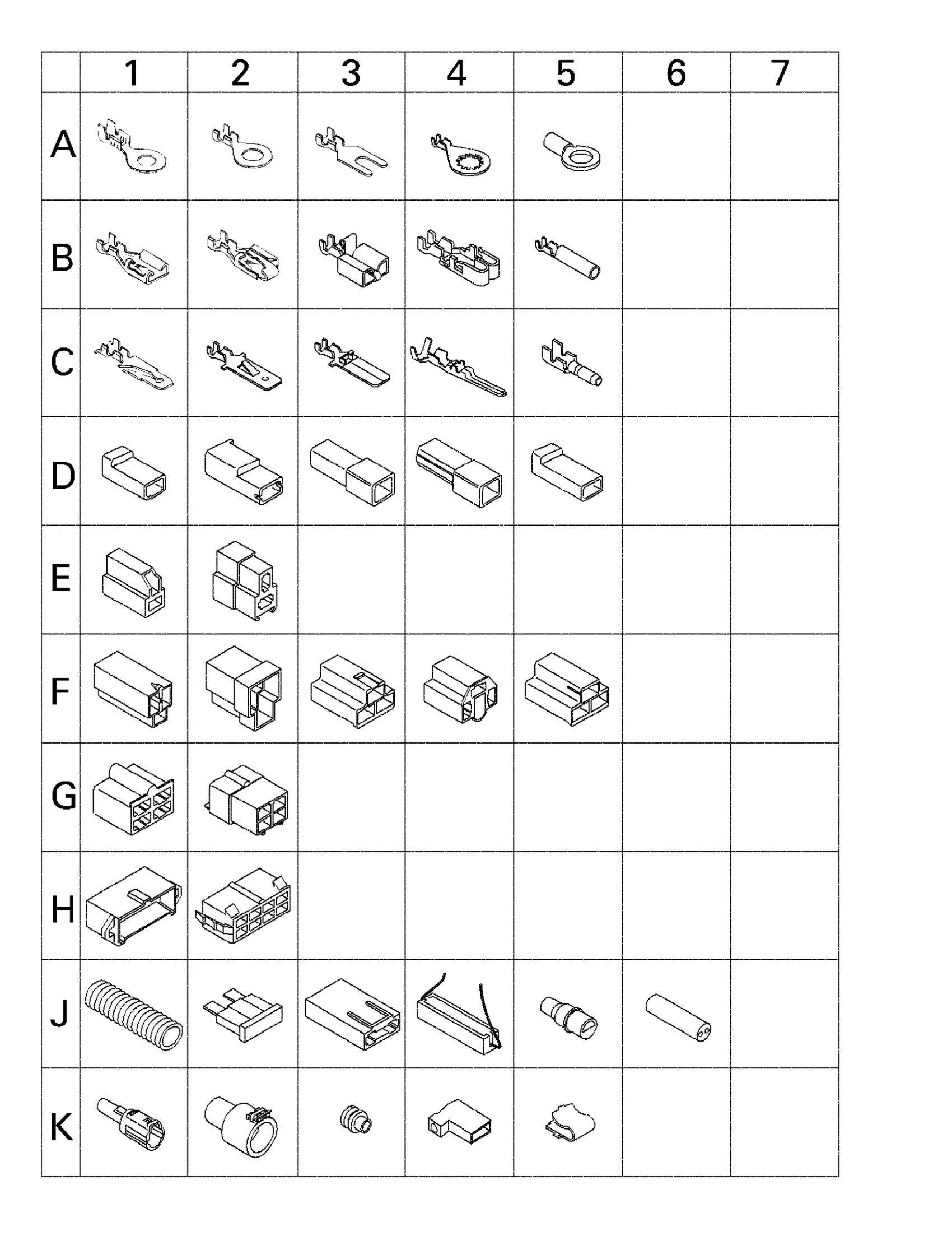

Ski-Doo Mini Z, 1998 10- Electrical Accessories Diagram

#

Description
Price

A1

Open Barrel

409012500

Unavailable

A1

Open Barrel Terminal

278001392

$4.79

A2

Open Barrel | (16/14 gauge-5/16" stud)

561502700

Unavailable

A2

OPEN BARREL - Call your local BRP dealership

409003200

Unavailable

A3

Spade Terminal | (16/14 gauge-8 mm stud)

561503000

Unavailable

A4

Ring Terminal | (16/14 gauge-10 mm stud)

409001800

Unavailable

A5

Open Barrel

278000992

$2.21

B1

Female Terminal

409010300

$4.39

B1

Female Terminal

561503100

$2.41

B1

Female Terminal

561503100

$2.41

B2

Female Terminal(Packard)

409011400

Unavailable

B2

FEMALE TERMINAL - Call your local BRP dealership

409011500

Unavailable

B2

Female Terminal (18/16 gauge)

409205100

Unavailable

B2

Female Terminal PACKARD

561503200

Unavailable

B2

Female Terminal (16/14 gauge)

561503800

Unavailable

B3

Female Terminal

409010100

$5.61

B4

Female Terminal

409003600

Unavailable

B5

Female Terminal | DS 650 X

278001009

$3.19

C1

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

C1

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

C2

Male Terminal

409201000

Unavailable

C3

MALE TERMINAL - Call your local BRP dealership

409011100

Unavailable

C4

Male Terminal

409011300

$5.93

C5

Male Terminal

278000230

$4.39

D1

Female Terminal Housing (1 circuit)

409204800

Unavailable

D2

Female Terminal Housing, 1 Circuit

409010400

$7.62

D3

Male Connector Housing (Single)

409204700

Unavailable

D4

Male Connector Housing (Single)

409201300

Unavailable

D5

Female Connector Housing (Single)

409201200

Unavailable

E1

FEMALE TERMINAL HOUSING, 24 CIRCUITS - Call your local BRP dealership

409204600

Unavailable

E2

MALE HOUSING - Call your local BRP dealership

409204500

Unavailable

F1

Female Housing

409204300

Unavailable

F2

FEMALE HOUSING - Call your local BRP dealership

409204200

Unavailable

F3

Female Terminal Housing (3 circuits)

409008500

Unavailable

F4

FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership

409202700

Unavailable

F5

Male Terminal Housing (3 circuits)

409008600

Unavailable

G1

FEMALE HOUSING - Call your local BRP dealership

409204900

Unavailable

G2

MALE HOUSING - Call your local BRP dealership

409209300

Unavailable

H1

Male Connector Housing (8)

572151500

Unavailable

H2

Female Connector Housing (8)

572151200

Unavailable

J1

Was 409901700 Tubing (9 mm)

219704399

$84.99

J1

Was 409901800 Tubing (13 mm)

219704400

$14.49

J1

Tubing 10 MM 1000MM Long

219704407

$2.79

J1

Tubing | Formula S.

410112800

Unavailable

J1

Tubing (Meter)

410112900

Unavailable

J2

Fuse, 30 Amperes

410917200

$3.28

J3

Fuse Holder

409004000

$8.09

J4

Resistance

515175241

$17.99

J5

Insulated Sheath

278001008

$3.28

J6

Insulated Sheath

278001007

$3.58

K1

Male Connector Housing (1 Circuit)

409208800

Unavailable

K2

MALE HOUSING - Call your local BRP dealership

409207900

Unavailable

K3

SEAL - Call your local BRP dealership

409208500

Unavailable

K3

Seal

409012300

$4.54

K4

Female Terminal

409010300

$4.39

K5

CLIP - Call your local BRP dealership | Europe Models

409205600

Unavailable
