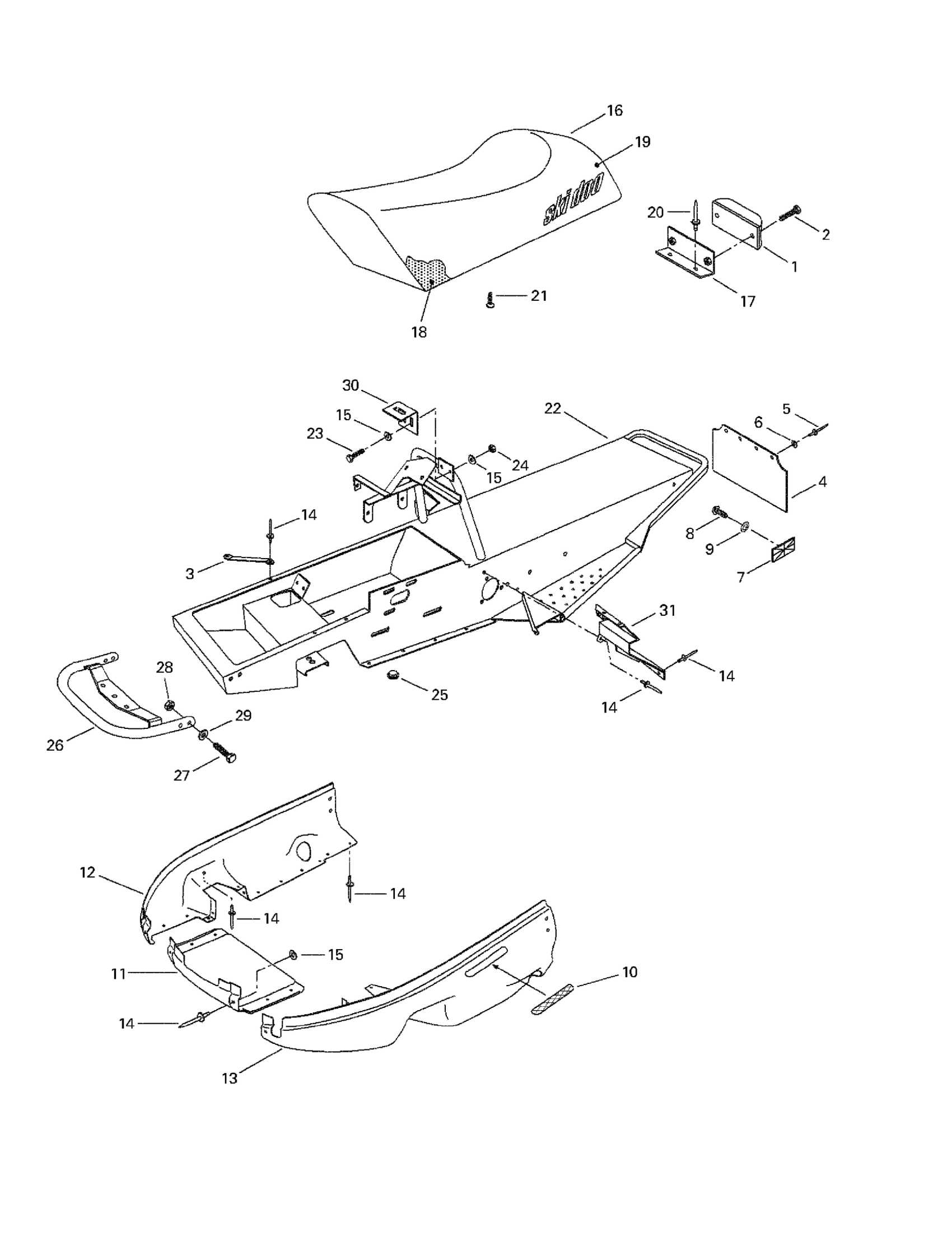

Ski-Doo Mini Z, 1998 09- Frame And Body Diagram

#

Description
Price

1

TAIL LAMP ASS'Y - Call your local BRP dealership | Includes 3a to 3b

415088700

Unavailable

2

Hex. Screw M5 X 12

207151244

$0.90

3

Bottom Pan Support

502006505

Unavailable

4

Snow Guard

572099800

Unavailable

5

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

6

Flat Washer

517225900

$0.18

7

REFLECTOR, RED - Call your local BRP dealership

414510100

Unavailable

8

PHILLIPS SCREW M5 X 10 - Call your local BRP dealership

208651041

Unavailable

9

WASHER-LOCK SERRATED DIN.6798A - Call your local BRP dealership

224151101

Unavailable

10

Decal - RH Reflector

415064400

Unavailable

Decal - LH Reflector

415064401

Unavailable

11

Nose (Yellow)

571009500

Unavailable

12

RH Bottom Pan (Yellow)

571009900

Unavailable

13

LH Bottom Pan (Yellow)

571010000

Unavailable

14

Pop Rivet 3/16"

390906800

$0.93

15

Flat Washer M5

234051410

$0.53

16

Not Available As Spare Part - Friction Washer

Unavailable

17

Tail Lamp Housing

415088400

Unavailable

18

Foam Seat

415088302

Unavailable

19

Seat Cover

415088303

Unavailable

20

Pop Rivet 3/16"

390906800

$0.93

21

Wood Tapping Screw

369902700

Unavailable

22

Frame Ass'y

518319100

Unavailable

23

Hex. Screw M5 X 14

207151444

$0.87

24

Elastic Stop Nut M5

232551414

$0.87

25

Plug

414404800

Unavailable

26

Bumper

518320400

Unavailable

27

Hex. Screw M6 X 30

207063044

$1.26

28

Elastic Stop Nut M6

232561414

$0.55

29

Flat Washer 6 mm

234061410

$1.36

30

Adjustable Plate

518321300

Unavailable

31

RH Footrest

518319200

Unavailable

LH Footrest

518319300

Unavailable
