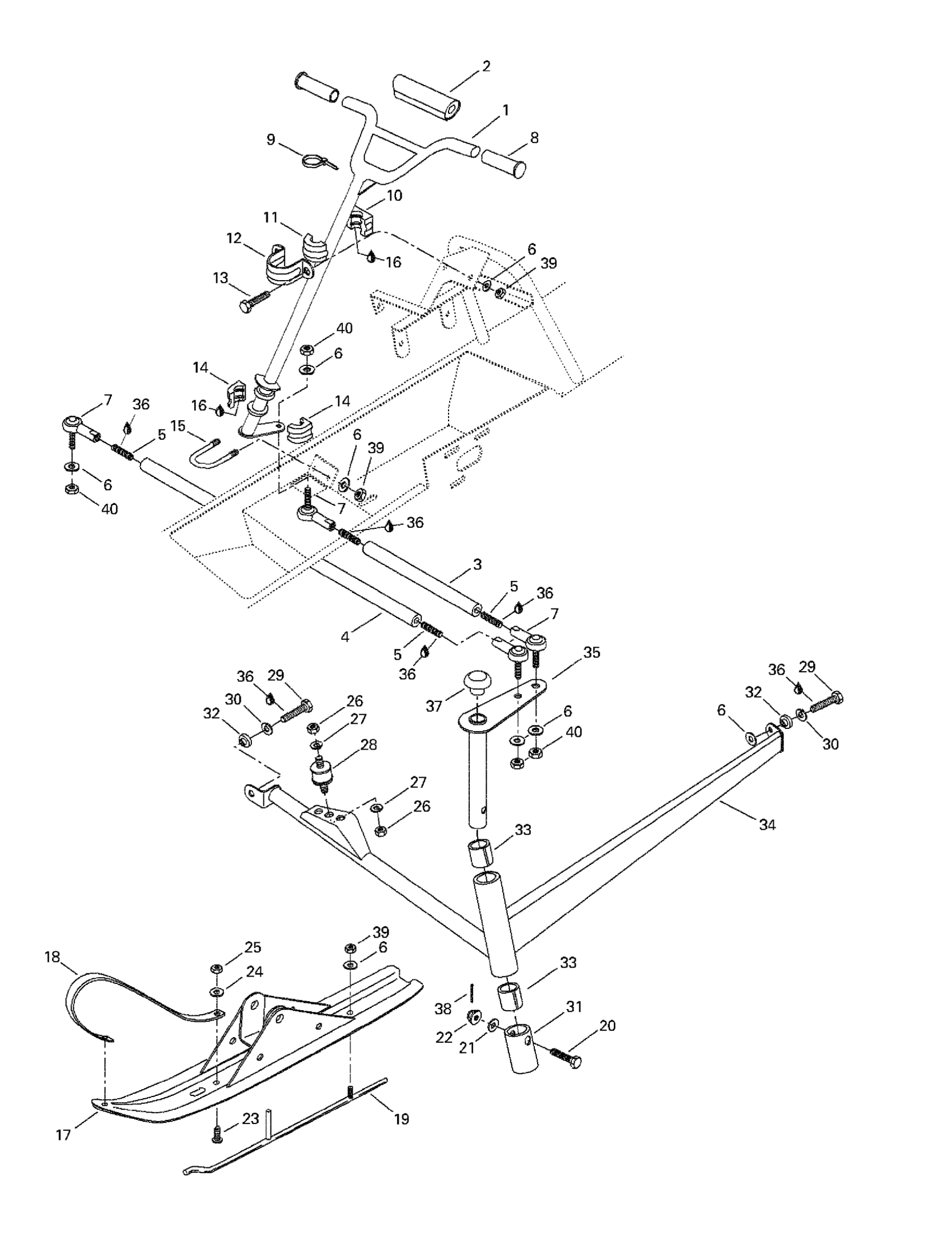

Ski-Doo Mini Z, 1998 07- Steering System And Ski Diagram

#

Description
Price

1

Handlebar

506143100

Unavailable

2

Steering Padding

572103400

Unavailable

3

Tie Rod

506148700

Unavailable

4

Tie Rod

506147700

Unavailable

5

Socket Set Screw

223584565

Unavailable

6

Flat Washer 8 mm

234081410

$0.83

7

BALL JOINT - Call your local BRP dealership

415108500

Unavailable

8

HANDLE GRIP - Call your local BRP dealership

572064100

Unavailable

9

Tie-Rap 180 mm

414115200

$0.11

10

Bushing

572064400

Unavailable

11

BUSHING - Call your local BRP dealership

572064500

Unavailable

12

Retainer Support

517126200

Unavailable

13

Hex. Screw M8 X 20

207182044

$0.74

14

HALF-BUSHING - Call your local BRP dealership

572067100

Unavailable

15

U-clamp | X

506060600

$17.80

16

LITHIUM GREASE, 400 GR - Call your local BRP dealership | Skandic WT LC.

413706100

Unavailable

17

Ski Ass'y | Includes 1 to 8

505068300

Unavailable

18

HANDLE - Call your local BRP dealership

572099500

Unavailable

19

Runner

505068400

Unavailable

20

BOLT M10 X 60 - Call your local BRP dealership

505070178

Unavailable

21

Flat Washer 10 mm

234001410

$1.26

22

Castellated Nut M10

732610083

Unavailable

23

Phillips Screw M6 X 25

208562560

$2.32

24

Flat Washer

224061201

$1.37

25

Elastic Stop Nut M6

232561414

$0.55

26

Hex. Nut M10 X 1.5

232006414

$1.37

27

WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.

234100602

Unavailable

28

Rubber Mount

570128800

Unavailable

29

Hex. Screw M8 X 25

207182544

$0.90

30

Lock Washer 8 mm

234181401

$0.92

31

Spacer

503182700

Unavailable

32

Double Spacer

503177000

Unavailable

33

CUSHION - Call your local BRP dealership

415087300

Unavailable

34

RH Swing Arm

506142800

Unavailable

LH Swing Arm

506142900

Unavailable

35

RH Ski Leg

506143400

Unavailable

LH Ski Leg

506143500

Unavailable

36

Loctite 243, 10 ml

293800060

$21.49

37

CAP - Call your local BRP dealership

572079100

Unavailable

38

Cotter Pin

371800200

$0.53

39

Hex. Elastic Stop Nut M8

232581414

$0.56

40

Hex. Nut M8

232081414

$0.72
