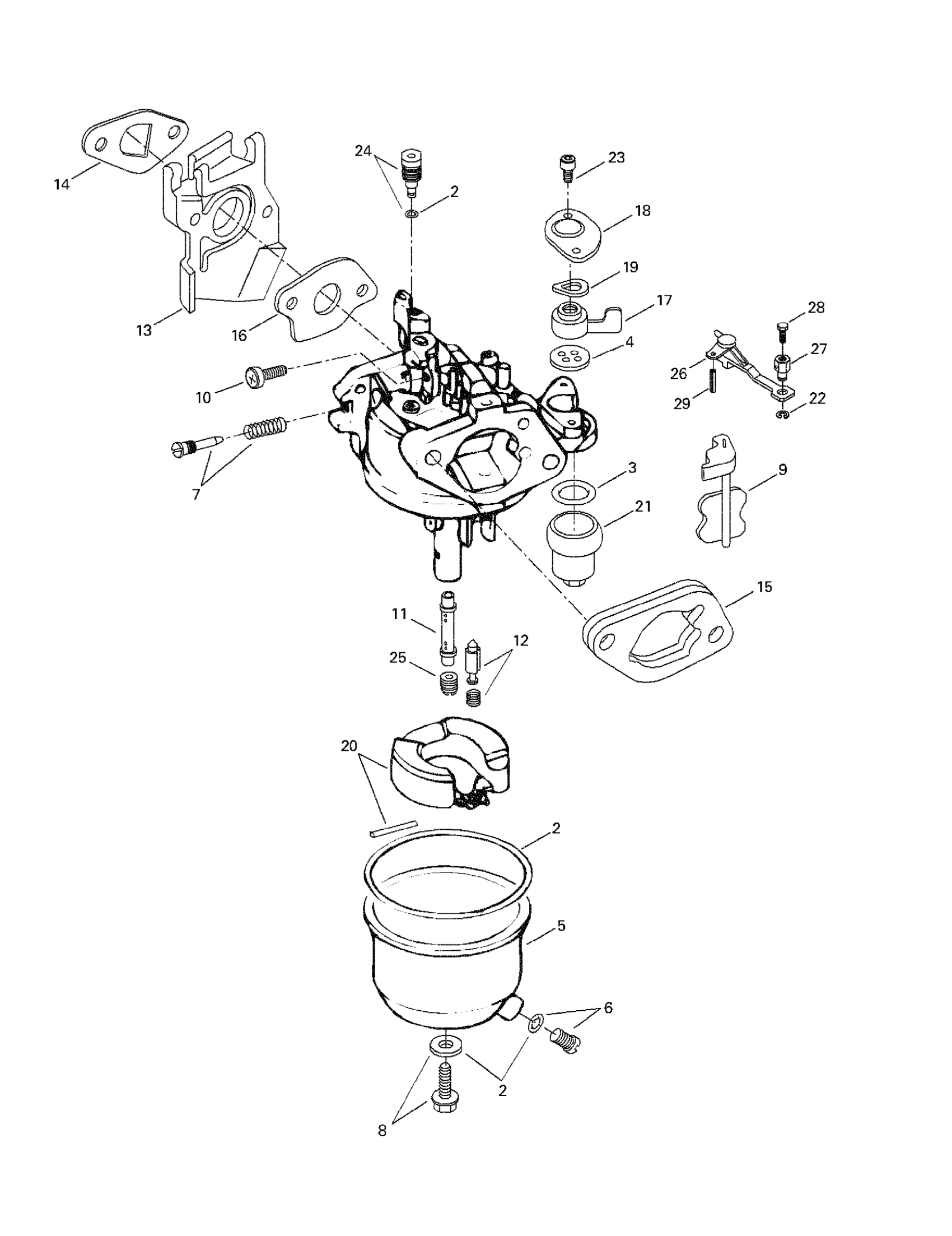

Ski-Doo Mini Z, 1998 02- Carburetor Diagram
#
Description
Price
1
Carburetor Ass'y
403500200
Unavailable
2
Carburator Gasket Set | Includes 2 - 4.
H16010ZE1812
Unavailable
3
Packard
H16173001004
Unavailable
4
Packing
H16957ZE1812
Unavailable
5
Chamber | Includes 5 - 6.
H16015ZE1811
Unavailable
6
Drain Bolt
H16024ZE1811
Unavailable
7
Screw
H16016ZH7W01
Unavailable
8
Screw
H16028ZE0005
Unavailable
9
Choke
H16044ZE0005
Unavailable
10
Screw
H16124ZE0005
Unavailable
11
Nozzle
H16166ZH7W50
Unavailable
12
Valve Set
H16011ZE0005
Unavailable
13
Insulator
H16211ZE0000
Unavailable
14
Packing
H16212ZH7800
Unavailable
15
Spacer
H16220ZE1020
Unavailable
16
Packing
H16221ZH8801
Unavailable
17
Lever
H16953ZE1811
Unavailable
18
Lever Plate
H16954ZE1811
Unavailable
19
Spring
H16956ZE1811
Unavailable
20
Float
H16013ZE0005
Unavailable
21
Cup
H16967ZE0811
Unavailable
22
Circlip
H90605230000
Unavailable
23
Screw
H93500030061H
Unavailable
24
Pilot Jet 35
H99204ZE00350
Unavailable
25
Main Jet 68
H99101ZF50680
Unavailable
26
Lever
H16610ZE1810
Unavailable
27
Holder
H16617890010
Unavailable
28
SCREW-HEX.CAP DIN.933 - Call your local BRP dealership
222041065
Unavailable
29
Spring Pin
H9430520122
Unavailable
