Description

Price

1

HANDLE BAR - Call your local BRP dealership

V53100DGF06H

Unavailable

2

LH Brake Lever

V53178DGF03HLL

$104.99

3

RH Brake Lever

V53179DGF02HLL

$169.99

4

Multi-Fonction Switch

V35160DGF04HLL

$87.99

5

LH Upper Handle Bar Clamp

V53170MAA020BKLL

$19.99

6

RH Upper Handle Bar Clamp

V53175MAA020BKLL

$19.99

7

Lower Handle Bar Clamp

V45517DGF04H

Unavailable

8

Hexagonal Bolt M6 X 25

V9100006025LL

$3.29

9

Elastic Flange Nut M10

232501416

$1.48

10

Choke Cable

V43316DGF060LL

$23.99

11

Throttle Cable

V17910DGF03HLL

$34.99

12

Handle Grip

V53140DGF000BK

$20.49

13

Housing Throttle Ass.

V53177CEK010BKLL

$119.99

14

Support

V50223DGF03H

$18.49

15

Not Available As Spare Part - Friction Washer

Unavailable

16

Helicoidal Lock Washer M10 | XT Models

234101601

$1.15

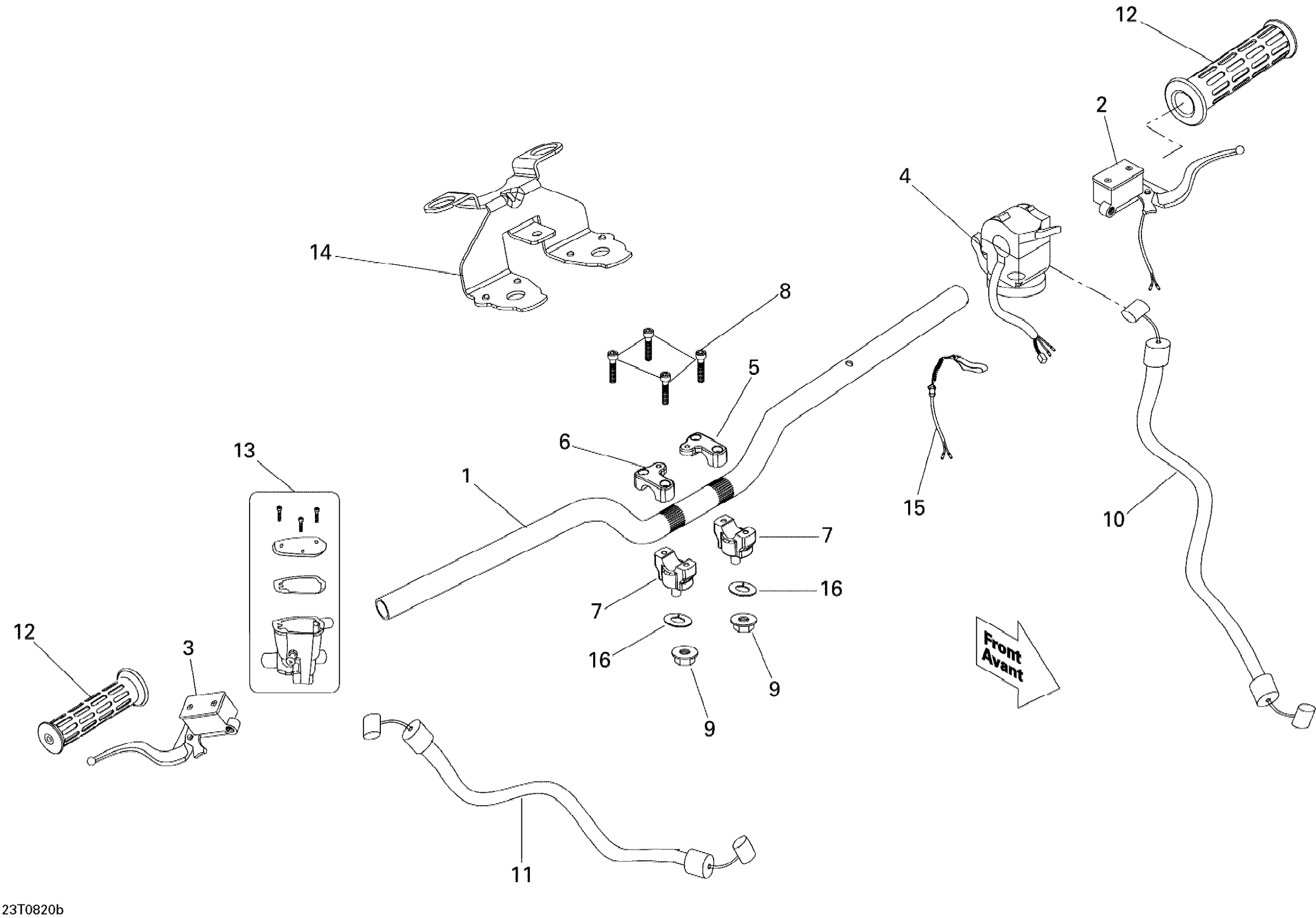

Can-Am Mini DS X 90cc 4T Black, 2008 Handlebar Diagram

HANDLE BAR - Call your local BRP dealership

LH Brake Lever

RH Brake Lever

Multi-Fonction Switch

LH Upper Handle Bar Clamp

RH Upper Handle Bar Clamp

Lower Handle Bar Clamp

Hexagonal Bolt M6 X 25

Elastic Flange Nut M10

Choke Cable

Throttle Cable

Handle Grip

Housing Throttle Ass.

Support

Not Available As Spare Part - Friction Washer

Helicoidal Lock Washer M10 | XT Models
