Description

Price

1

Handle Bar

V53100DGF060BKLL

Unavailable

2

LH Brake Lever

V53178MAA020BKLL

Unavailable

3

RH Brake Lever Ass'y

V53179MAA010BKLL

Unavailable

3-1

RH LEVER GASKET - Call your local BRP dealership

V53182MAA000

Unavailable

3-2

LEVER BODY COVER - Call your local BRP dealership

V53183MAA000

Unavailable

3-3

BOLT - Call your local BRP dealership

V9350004016

Unavailable

4

MULTI-FUNCTION SWITCH - Call your local BRP dealership

V35160DGF010

Unavailable

5

LH Upper Handle Bar Clamp

V53170MAA020BKLL

Unavailable

6

RH Upper Handle Bar Clamp

V53175MAA020BKLL

Unavailable

7

Lower Handle Bar Clamp

V45517MAA040BK

Unavailable

8

Hexagonal Bolt M6 X 25

V9100006025LL

Unavailable

9

Nylon Nut M10

V9035010000010LL

Unavailable

10

Choke Cable

V43316DGF060LL

Unavailable

11

Throttle Cable

V17910DGF030LL

Unavailable

12

Handle Grip

V53140DGF000BK

Unavailable

13

Hex. Flange Screw M6 X 12

207661244

Unavailable

14

Support

V50223DGF030

Unavailable

15

Helicoidal Lock Washer M10 | XT Models

234101601

Unavailable

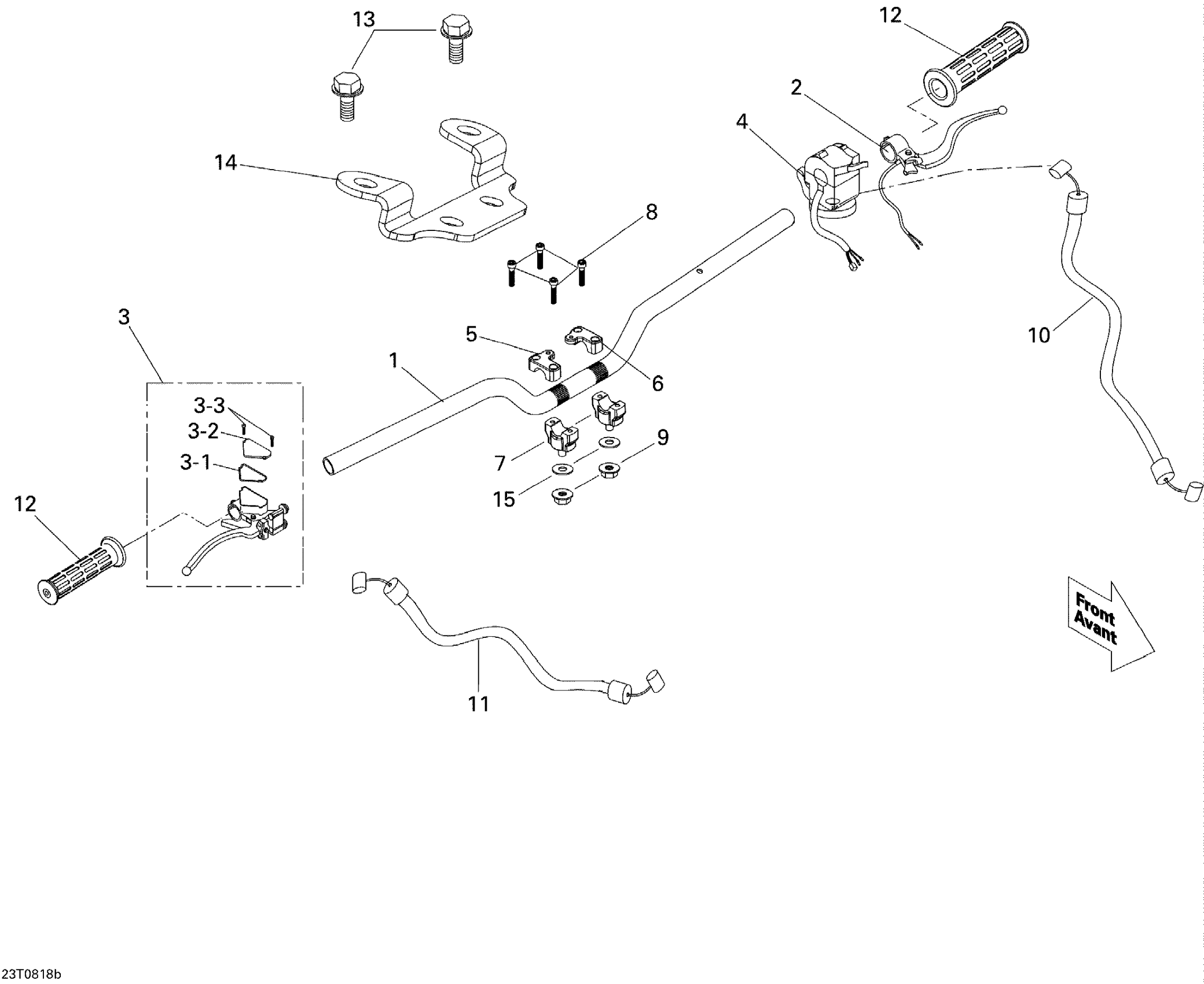

Can-Am Mini DS 90cc 4T Jaune, 2008 07- Handlebar Diagram

Handle Bar

LH Brake Lever

RH Brake Lever Ass'y

RH LEVER GASKET - Call your local BRP dealership

LEVER BODY COVER - Call your local BRP dealership

BOLT - Call your local BRP dealership

MULTI-FUNCTION SWITCH - Call your local BRP dealership

LH Upper Handle Bar Clamp

RH Upper Handle Bar Clamp

Lower Handle Bar Clamp

Hexagonal Bolt M6 X 25

Nylon Nut M10

Choke Cable

Throttle Cable

Handle Grip

Hex. Flange Screw M6 X 12

Support

Helicoidal Lock Washer M10 | XT Models
