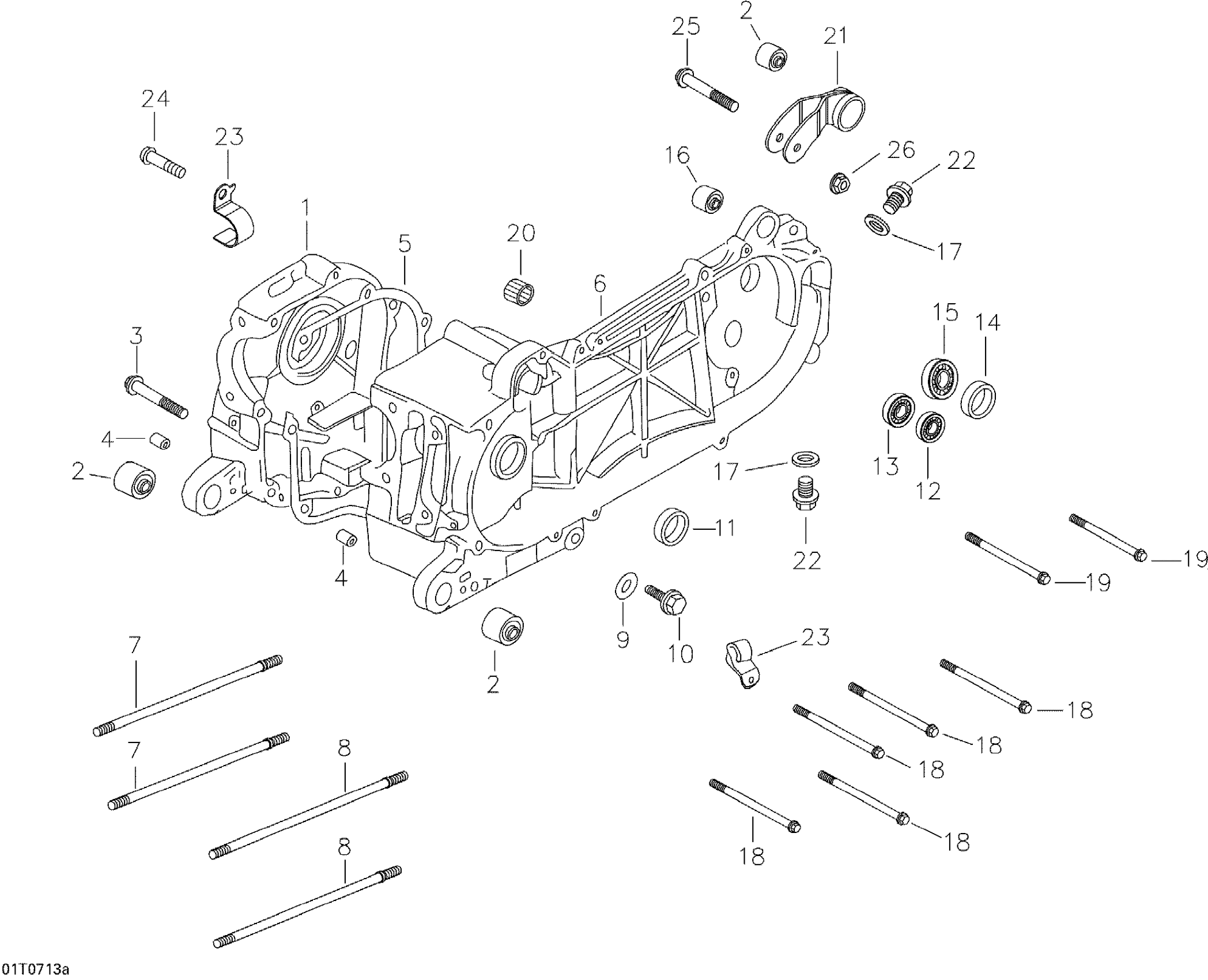

Can-Am Mini DS 90 4-strokes, 2007 Crankcase Diagram

#

Description
Price

1

RH crankcase

A11101175000

Unavailable

2

RUBBER BUSHING - Call your local BRP dealership

A96400102820

Unavailable

3

Hexagonal Washer Face Bolt

A960000605008

Unavailable

4

Dowel Pin

A9430108140

$7.37

5

CRANKCASE GASKET - Call your local BRP dealership

A11191133000

$8.43

6

LH crankcase

A11201175000

Unavailable

7

STUD BOLT - Call your local BRP dealership

A9100107168

$5.35

8

STUD BOLT - Call your local BRP dealership

A9100107176

$5.35

9

Washer Plain

A941011221320

Unavailable

10

HEXAGONAL WASHER FACE BOLT M12X15 - Call your local BRP dealership

A960001201514

$5.29

11

OIL RING - Call your local BRP dealership

A9650019305

Unavailable

12

RADIAL BALL BEARING - Call your local BRP dealership

A9610062030

$13.05

13

Radial Ball Bearing, 6201

A9610062010

Unavailable

14

OIL RING - Call your local BRP dealership

A9650017306

$6.12

15

RADIAL BALL BEARING - Call your local BRP dealership

A961006203S

$36.89

16

RUBBER BUSHING - Call your local BRP dealership

A964000820200A

$5.51

17

Washer Plain

A941040816020

$2.75

18

Hexagonal Washer Face Bolt

A960000803512G

Unavailable

19

Hexagonal Washer Face Bolt

A960000804012K

Unavailable

20

NEEDLE BEARING, HK8 X 12 X 10 - Call your local BRP dealership

A96200081210

$14.58

21

Bracket LH

A11204175000

Unavailable

22

HEXAGONAL WASHER FACE BOLT - Call your local BRP dealership

A960000801210

$0.34

23

Clamper

A1135112000A

Unavailable

24

Hex. Flange Screw M6 X 10 | Not Illustrated

A9600006010

$6.45

25

Hexagonal Washer Face Bolt

A960000803512

Unavailable

26

Hex. Flange Nut M8

233081416

$1.63
