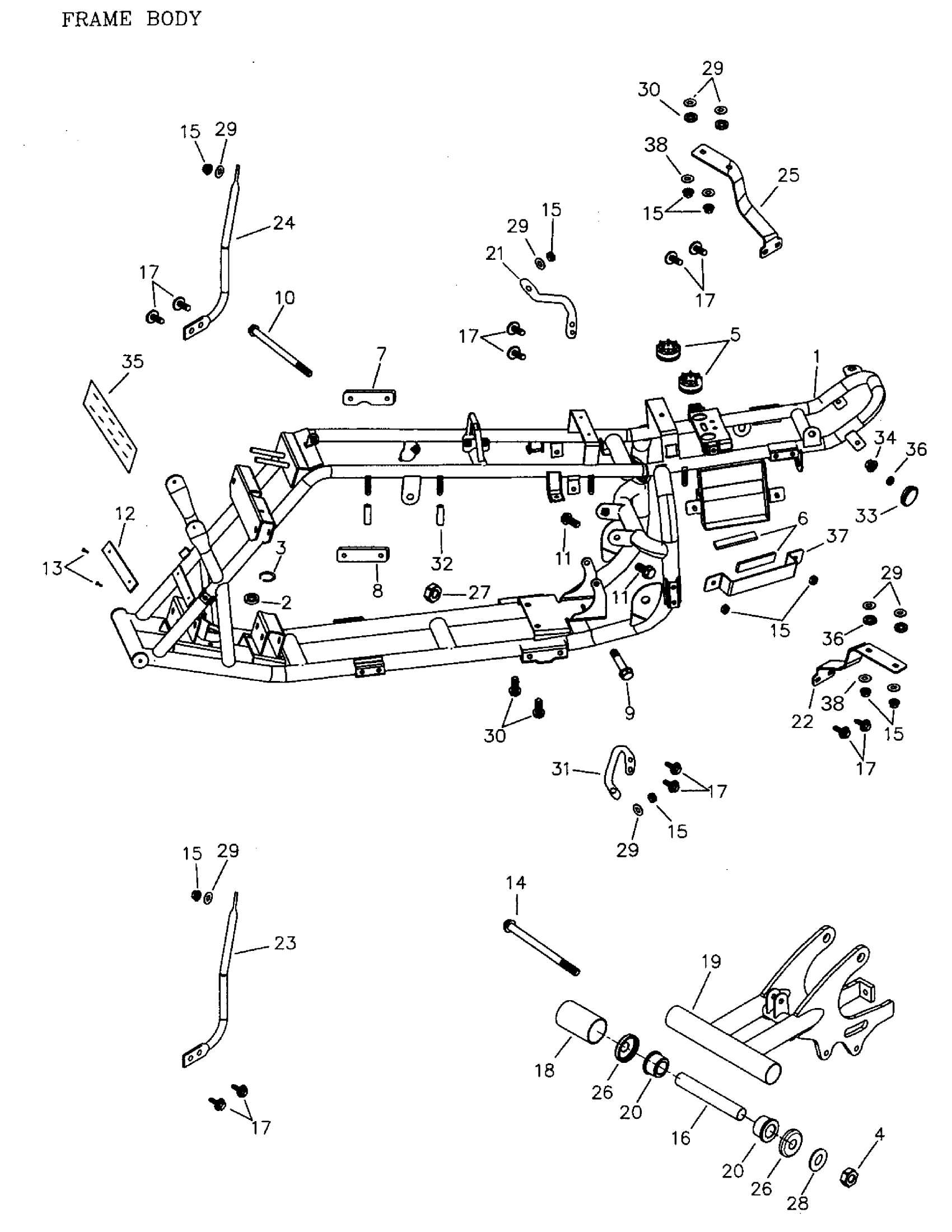

Can-Am Mini DS 90 4-strokes, 2004 Frame And Body Diagram

#

Description
Price

1

Frame Comp.

A50100172000

Unavailable

2

Radial Ball Bearing, 6002ZZ

A961006002ZZ

$22.28

3

INTERNAL CIRCLIP - Call your local BRP dealership

A945123200R

$2.89

4

NYLON NUT M14 - Call your local BRP dealership

A9035014000

$5.29

5

Rubber

A77211145000

Unavailable

6

SPONGE PAD - Call your local BRP dealership

A17505145000

Unavailable

7

RH Engine Fixed Plate

A50353152000

Unavailable

8

LH Engine Fixed Plate

A50354152000

Unavailable

9

Hex. Washer Face Bolt M8 X 110

A960000811014

Unavailable

10

Hex. Washer Face Bolt M8 X 120

A960000812014

Unavailable

11

Hex. Washer Face Bolt M8 X 36

A960000803612G

Unavailable

12

Frame No. Plate

A50110145000

Unavailable

13

Rivet

A90662105000

Unavailable

14

Hex. Washer Face Bolt M14 X 280

A960001428019

Unavailable

15

NYLON NUT M6 - Call your local BRP dealership

A9035006000

$8.06

16

Swing Arm Spacer

A52104152000

Unavailable

17

HEXAGONAL BOLT M6 X 14 - Call your local BRP dealership

A920000601410

$1.35

18

Rubber Sleeve

A52101145001

Unavailable

19

SWING ARM ASSY. - Call your local BRP dealership

A52100152002

$123.05

20

BUSH - Call your local BRP dealership

A52103145000

Unavailable

21

REAR COVER LOWER RIGHT FIXED POLE - Call your local BRP dealership

A83401155000

$13.43

22

Rear Cover Up Left Fixed Plate

A83402166000

Unavailable

23

FRONT COVER LEFT FIXED POLE - Call your local BRP dealership

A64307155000

Unavailable

24

FRONT COVER RIGHT FIXED POLE - Call your local BRP dealership

A64308155000

$15.35

25

REAR COVER UP RIGHT FIXED PLATE - Call your local BRP dealership

A83403166000

Unavailable

26

SWING ARM SEAL COVER - Call your local BRP dealership

A52144145000

$5.35

27

NYLON INSERT LOCK NUT M8 - Call your local BRP dealership

A9035008000

$1.35

28

Plain Washer, 14 X 26 X 3

A941011426030

Unavailable

29

PLAIN WASHER, 6 X 18 X 2 - Call your local BRP dealership

A941010618020

Unavailable

30

HEXAGONAL WASHER FACE BOLT M8X15 - Call your local BRP dealership

A960000801512G

$3.05

31

Rear Cover Lower Left Fixed Pole

A83404155000

Unavailable

32

Cable Clamp Rubber

A11357145000

Unavailable

33

REFLECTOR - Call your local BRP dealership

A33741145000RD

$8.43

34

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

35

Frame Decal

AB0907559

Unavailable

36

Rubber Washer

A94102145000

Unavailable

37

BATTERY BRACKET - Call your local BRP dealership

A31504145000

Unavailable

38

PLAIN WASHER, 6 X 14 X 2 - Call your local BRP dealership

A941010614020

$1.35
