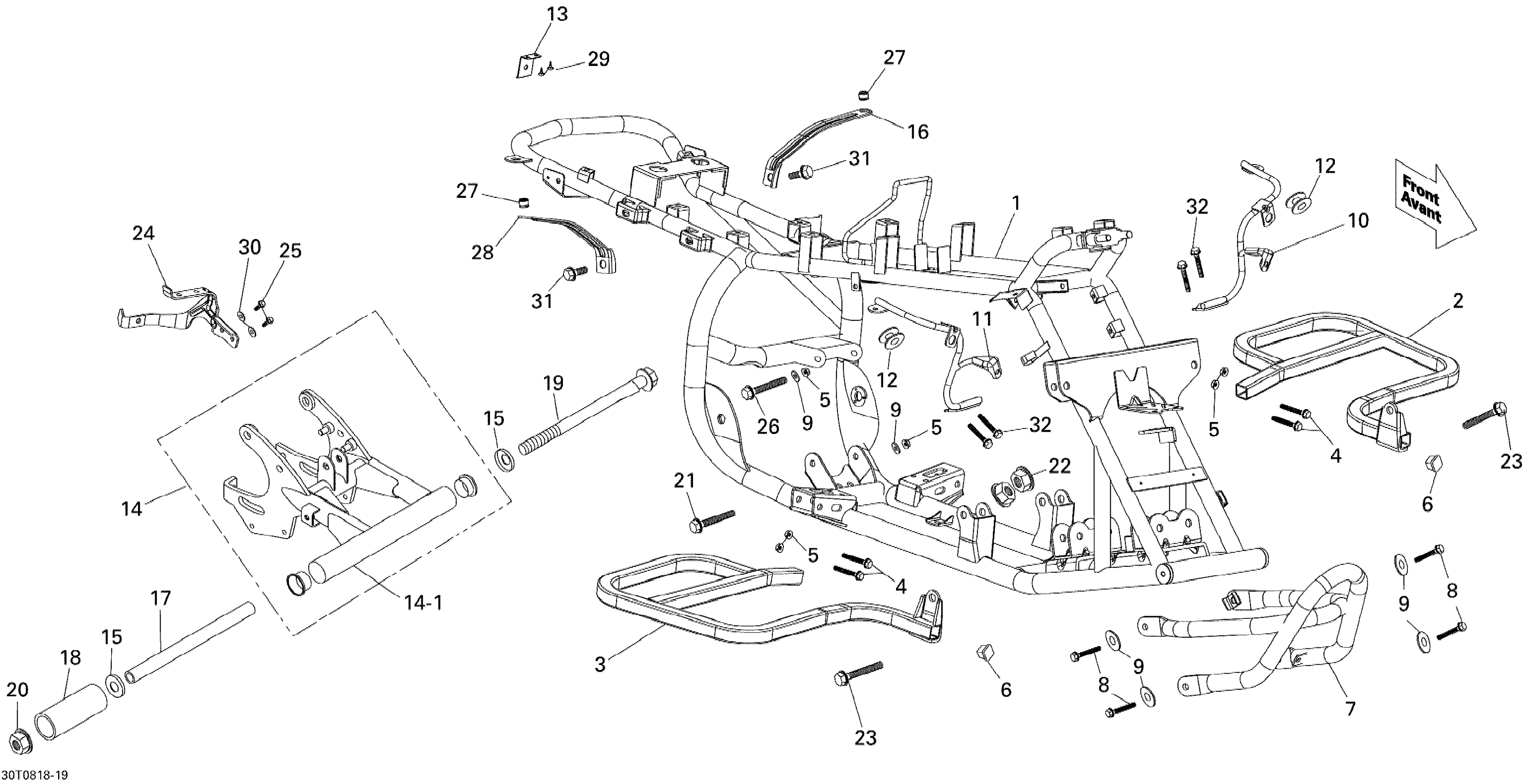

Can-Am Mini DS 70cc 4T Jaune, 2008 Frame Diagram

#

Description
Price

1

Frame

V50100DGE020

Unavailable

2

LH Footrest Support

V50099DGF060BK

$53.99

3

RH Footrest Support

V50107DGF050BK

$53.99

4

Hex. Flange Screw M8 X 35

207683544

$1.69

5

Hex. Elastic Stop Nut M8

232581414

$0.56

6

Plug

V64312DGF020LL

$7.69

7

Front Bumper

V50270DGF040BK

$90.99

8

Hex. Flange Screw

V9600008014

$3.29

9

Lock Washer 8 mm, Stainless

234181601

$0.55

10

RH Head Lamp Support

V50280DGF050BK

$38.99

11

LH Head Lamp Support

V50290DGF050BK

$38.99

12

Cushion Rubber

V15235DGF030LL

$2.69

13

Reflector Bracket

V50266DGF020

$10.49

14

Swing Arm

V52370DGF110

$259.49

14-1

Bushing

V22135MAA000

$11.65

15

Swing Arm Seal Cover

V11400MAA000

$12.99

16

LH Upper Fixed Plate

V50260DGF050BK

$20.99

17

Swing Arm Spacer

V44170MAA000

$19.99

18

Rubber Sleeve

V53436MAA020LL

$13.49

19

Hex. Flange Bolt

V9600014290010LL

$15.36

20

NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership

232571414

Unavailable

21

Hex. Flange Screw

V9600008100

$6.35

22

Elastic Flange Nut M10

232501416

$1.48

23

Hexagonal Flange Bolt

V958211006090LL

$6.35

24

Chain Cover Braket

V50268DGF040

$8.39

25

Hex. Flange Screw M6 X 12

207661244

$2.11

26

Hex. Flange Screw

V9600108125

$6.35

27

Rubber Cushion

V85278DGF020LL

$4.09

28

RH Upper Fixed Plate

V50261DGF050BK

$20.99

29

Tapping Screw

V9309304012LL

$2.19

30

Lock Washer Helical M6

234161601

$1.15

31

Hex. Flange Screw

207681244

$0.83

32

Hex. Flange Screw M6 X 16

207661644

$0.74
