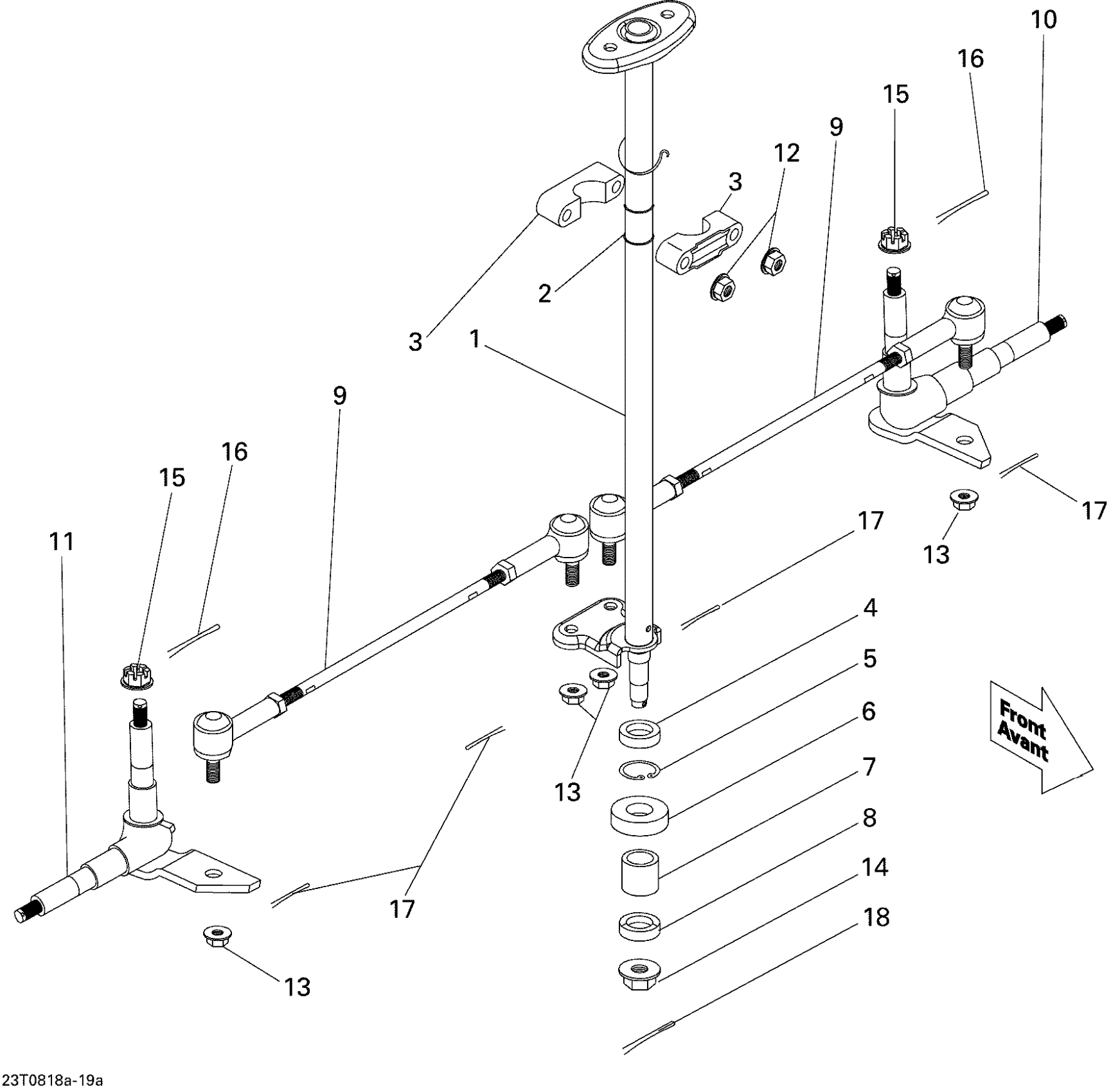

Can-Am Mini DS 70cc 4T Jaune, 2008 Steering Diagram

#

Description
Price

1

Steering Column

V53200DGF090

$85.99

2

Sleeve

V53217MAA020

$12.12

3

Steering Shaft Holder

V53434MAA020BK

$16.27

4

Oil Seal

V92101MAA000

$13.49

5

C-Circlip

V9452032000

$2.61

6

Radial Ball Bearing, 6002ZZ

A961006002ZZ

$23.49

7

Collar

V22112MAA010

$9.69

8

Oil Seal

V92102MAA000

$13.49

9

Tie Rod Ass'y

V53180MAA020LL

$94.49

10

LH Knuckle

V51215MAA000

$110.99

11

RH Knuckle

V51210MAA000

$104.99

12

Hex. Elastic Stop Nut M8

232581414

$0.56

13

Elastic Flange Nut M10

232501416

$1.48

14

NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership

232571414

Unavailable

15

Lock Nut

V9035210000LL

$11.58

16

Cotter Pin

V9420117020LL

$6.67

17

Cotter Pin

V9420125030

$6.67

18

Cotter Pin

V9420130032LL

$6.67
