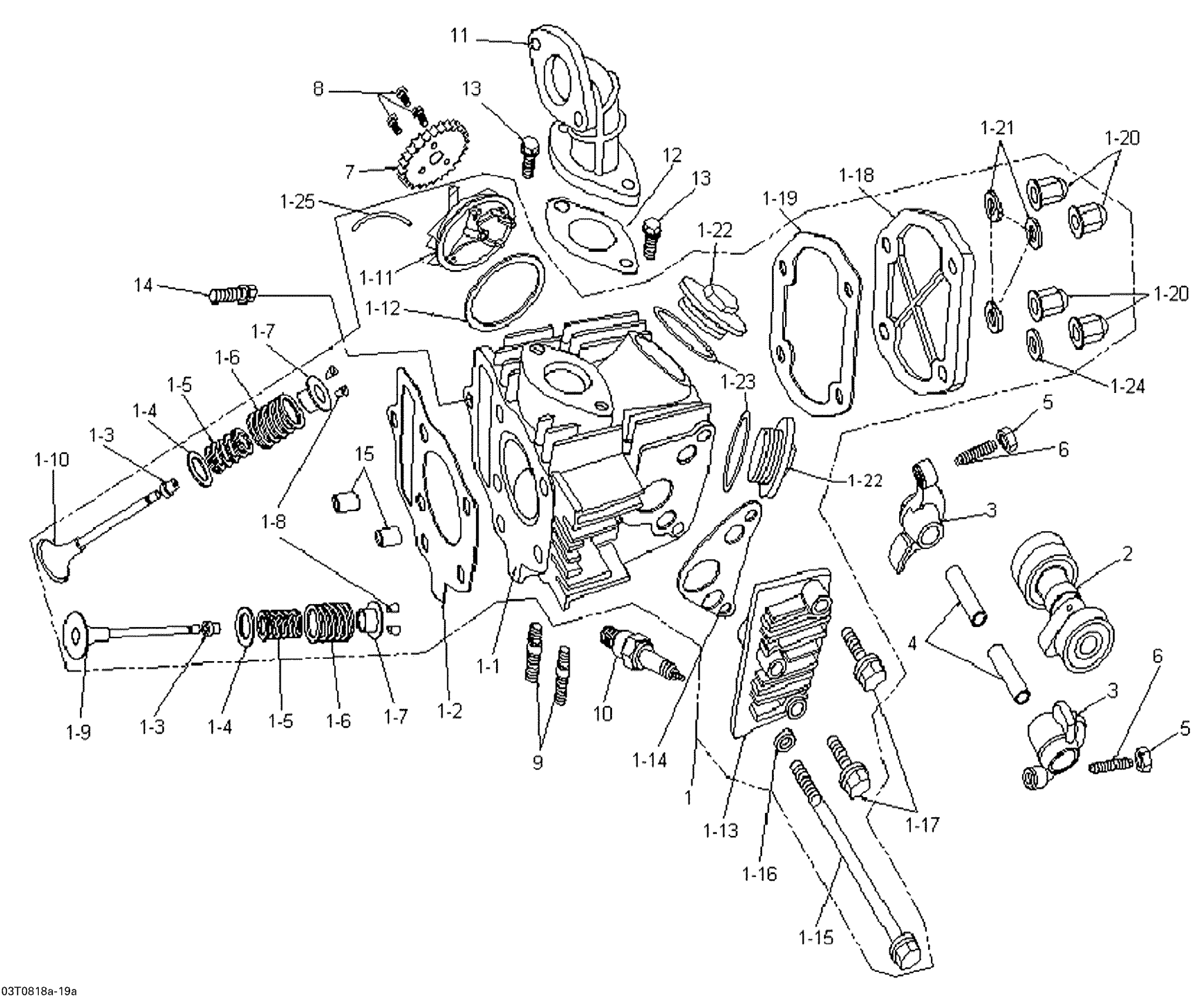

Can-Am Mini DS 70cc 4T Jaune, 2008 Cylinder Head And Intake Manifold Diagram

#

Description
Price

1

Not Available As Spare Parts

NASP/NDPR

Unavailable

1-1

Cylinder Head DS

V12201CJF020LL

$223.49

1-2

Cylinder Head Gasket

V12251CJF020

$25.99

1-3

Valve Stem Seal

V12209GYK000

$17.04

1-4

Valve Spring Seat

V14775GYK000

$10.49

1-5

Spring Valve Outer

V14751GYK000

$13.24

1-6

Spring Valve Inner

V14761GYK000

$13.22

1-7

Retainer Valve Spring

V14771GYK000

$18.49

1-8

Cotter

V14781GYK000

$10.49

1-9

Intake Valve

V14711CJF010

$46.49

1-10

Exaust Valve

V14721CJF000

$46.49

1-11

LH Cover Cylinder Head

V12341CJF030LL

$56.49

1-12

Cylinder Head Cover Gasket

V12395CJF010

$16.86

1-13

RH Cover Cylinder Head

V12331CJF010LL

$56.49

1-14

Cylinder Head Cover Gasket Rh.

V12394CJF010

$7.90

1-15

Hexagonal Flange Bolt

V9600006110

$6.95

1-16

WASHER FLAT - Call your local BRP dealership

A941010612010

Unavailable

1-17

Hex. Flange Screw M6 X 20

207662044

$2.00

1-18

Valve Cover

V12301CJF000

$69.99

1-19

Gasket

V12391CJF020

$18.54

1-20

Cap Nut

V9030406000010LL

$10.48

1-21

Flat Washer

V941010612016

$12.18

1-22

Adjusting Cap | Incl 1-23 O-Ring

V12361CJF030LL

$28.49

1-23

Adjusting Cap | Incl 1-23 O-Ring

V12361CJF030LL

$28.49

1-24

Flat Washer

V941050614016

$2.68

1-25

Breather

V11224DGF010

$19.99

2

Camshaft

V14400CJF010

$142.99

3

Rocker Arm

V14431CJF030

$55.99

4

Rocker Arm Shaft

V14452CJF010

$19.49

5

Valve Gap Adjusting Nut

V90206GYK000

$3.80

6

Rocker Arm

V14431CJF030

$55.99

7

Timer Sprocket

V14321CJF030

$36.99

8

Hex. Screw M5 X 12

207151244

$0.90

9

Stud Bolt

V9270006033LL

$2.19

10

Spark Plug

219703175

$4.23

11

Intake Manifold

V17111CJF07A

$62.49

12

Gasket

V16229GYK010

$4.55

13

Hex. Flange Screw M6 X 20

207662044

$2.00

14

Hex. Flange Screw M6 X 25

207662544

$0.64

15

DOWEL PIN - Call your local BRP dealership

A9430108120

Unavailable
